ANTI-LOCK BRAKES
ABS

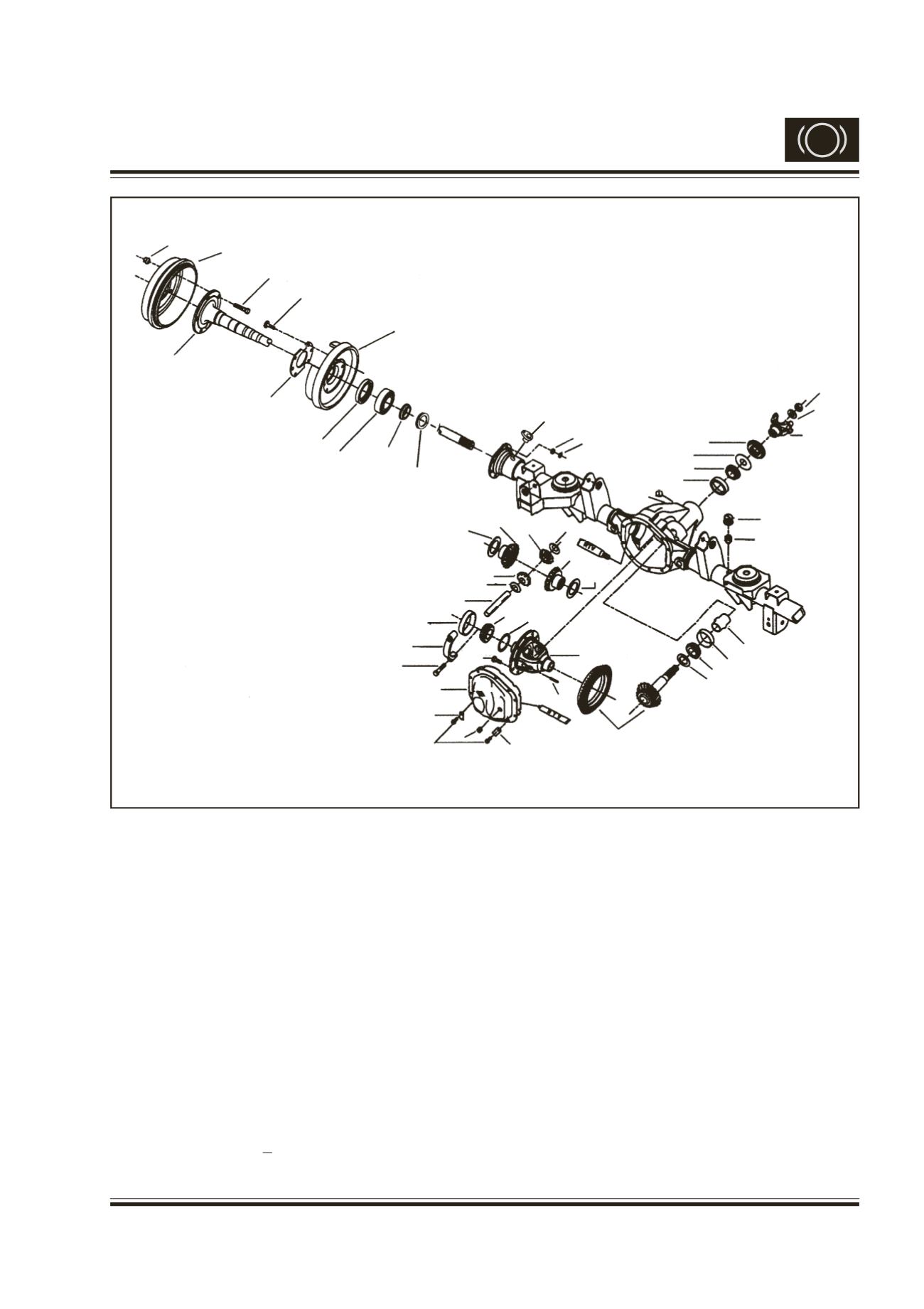

Fig. 25 Exploded view of rear axle with ABS
Rear wheel speed sensor Removal
Take proper precaution while disconnecting the
wheel speed sensor from vehicle wiring harness,
by not damaging pins on connector
1.
Remove the harness connector.
2.
Remove the sensor mounting screw and remove
the speed sensor from the rear axle tube.
(Fig. 25)
3.
Remove the sensor cable anchorage on chassis
longmember by removing grommet. (Fig. 26)
4.
Take out the sensor cable connector.
5.
Measure speed sensor resistance.
Resistance : 1600
W
+ 320
Inspection of Rear Toner ring
1.
Jack the vehicle removes the wheels.
2.
Remove the brake drum & brake assy,
axleshaft.
3.
Closely inspect the toner ring and remove the
dust and mud/iron particles in between teeth
4.
Check for any damaged teeth. (Rear toner ring
got 54 teeth)
5.
Replace toner ring if teeth are missing or
damaged
Wheel nut Brake Drum
Wheelbolt
Serrated
Brakebolt
Axleshaft
Retainer
Plate
Oil seal
Unit Bearing Bearing
Retainer
ABS Toner
Ring
Brake assembly
with auto adjuster
Nut
LockNut
Oil Seal
Thrust Washer
Bearing cone
Bearing
cup
Carrier
Pinion
nut
Washer
End
yoke
Breather
Vent
Collapsible
Spacer
Bearing
cup Bearing cone
Shim Pinion
Position
Gear Pair
(Ring gear/pinion)
Thrust
Washer
Pinion Mate
Side
gear
Thrust
Washer
Sidegear
Pinion
Mate
Thrust Washer
Diff Pin
Bearing
cap
Bearing
cap
Bearing
cap
screw
Cover
Ratio tag
Cover screw
Plug
Lube
tag
Roll Pin
Diff case (Std)
Bear-
ing
cone Shim Diff
Preload
Ring
gear
screw
Side
gearThrust
Washer
Sidegear
Rear wheel speed
sensor
REMOVAL / INSTALLATION OF REAR WHEEL SPEED SENSOR
