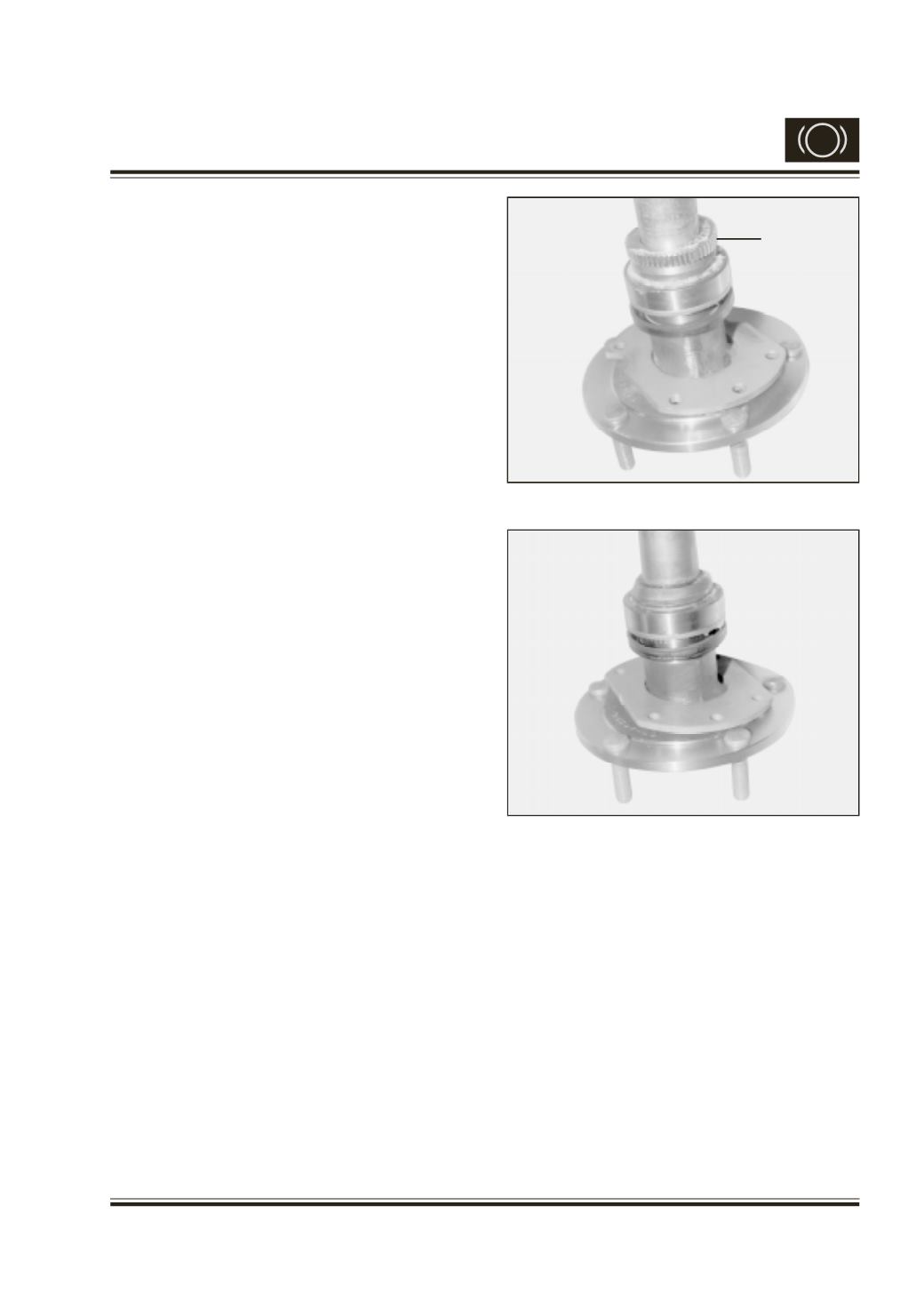

Fig. 29 ABS Axle Shaft with Toner Ring

Fig. 30 Regular Axle Shaft

REMOVAL & INSTALLATION OF TONER

RING FOR REAR AXLE

(MODEL 44)

In addition to the regular axles ABS toner ring is

fitted on the axle shaft next to the retainer ring and

Adapter sensor (bushing) is fitted on the tube assy.

respectively.

Removal of the ABS Toner ring from the axle

shaft –

Note :

Care should be taken while breaking the

retainer ring that the chisel should not hit or damage

the toner ring.

The toner ring is to be removed along with the

axle shaft bearing from the axle shaft with the

help of axle shaft bearing-puller after drilling a

hole and breaking of the retainer ring.

Assembly of the ABS Toner ring on the axle

shaft –

The toner ring is press fit on the axle shaft. The

toner ring is pressed after pressing of the retainer

ring on the shaft. While pressing the ring

inspection should be done for any damage to

the teeth’s of the toner ring. It would require a

force of 3200 kgs minimum to seat the toner ring

against the retainer ring.

ABS Toner

Ring
