SAFARI

ABS

ANTI-LOCK BRAKES

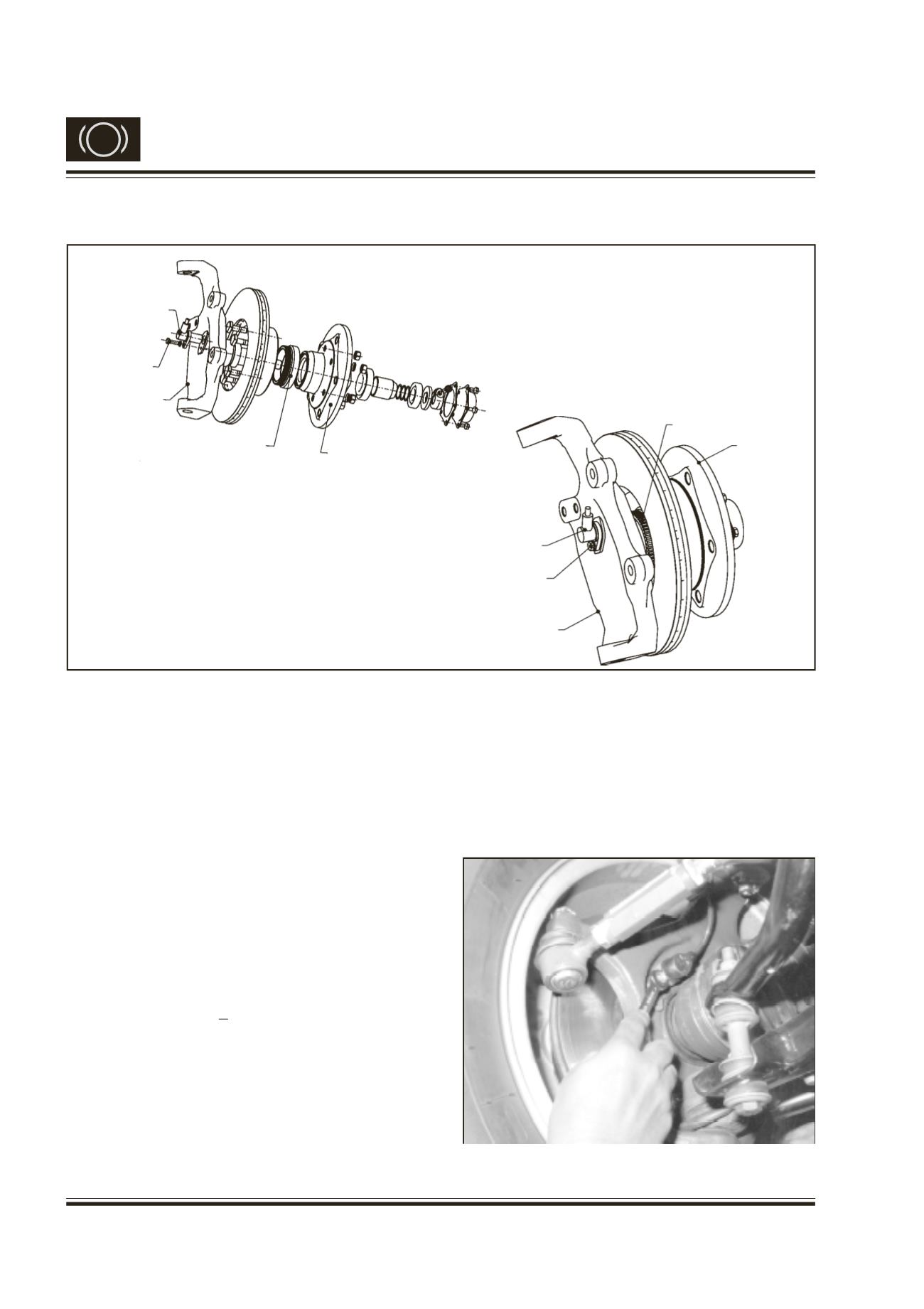

Fig. 20

Fig. 19

REMOVAL / INSTALLATION OF FRONT WHEEL

SPEED SENSOR

Take proper precaution while disconnecting the

wheel speed sensor from vehicle wiring harness,

by not damaging pins on connector.

Remove harness connector.

Remove sensor mounting screw and remove

the wheel speed sensor from the steering

knuckle. (Fig. 20)

Remove the sensor cable anchorage on the

front stub axle & chassis long member.

Take out the sensor cable connector.

Measure speed sensor resistance.

Resistance : 1600

+ 320

Inspection of Front Toner ring

Jack the vehicle and properly support front of

the vehicle.

Steer the wheel to extreme steering locks

position so that the toner ring on the stubaxle

is easily seen.

Closely inspect the toner ring by slowly rotating

the wheel and remove the dust and mud/iron

particles in between teeth.

Check for any damaged teeth. (Front toner ring

has got 54 teeth)

SENSOR

MTG. SCREW

STUB AXLE

TONER RING

HUB

SENSOR

(ON STUB AXLE)

SENSOR MTG. SCREW

STUB AXLE

HUB ASSLY

TONER RING

(ON HUB)
