SAFARI

FRONT AXLE - 4

4. AUTOMATIC LOCKING HUB

4.1 DIS-ASSEMBLY

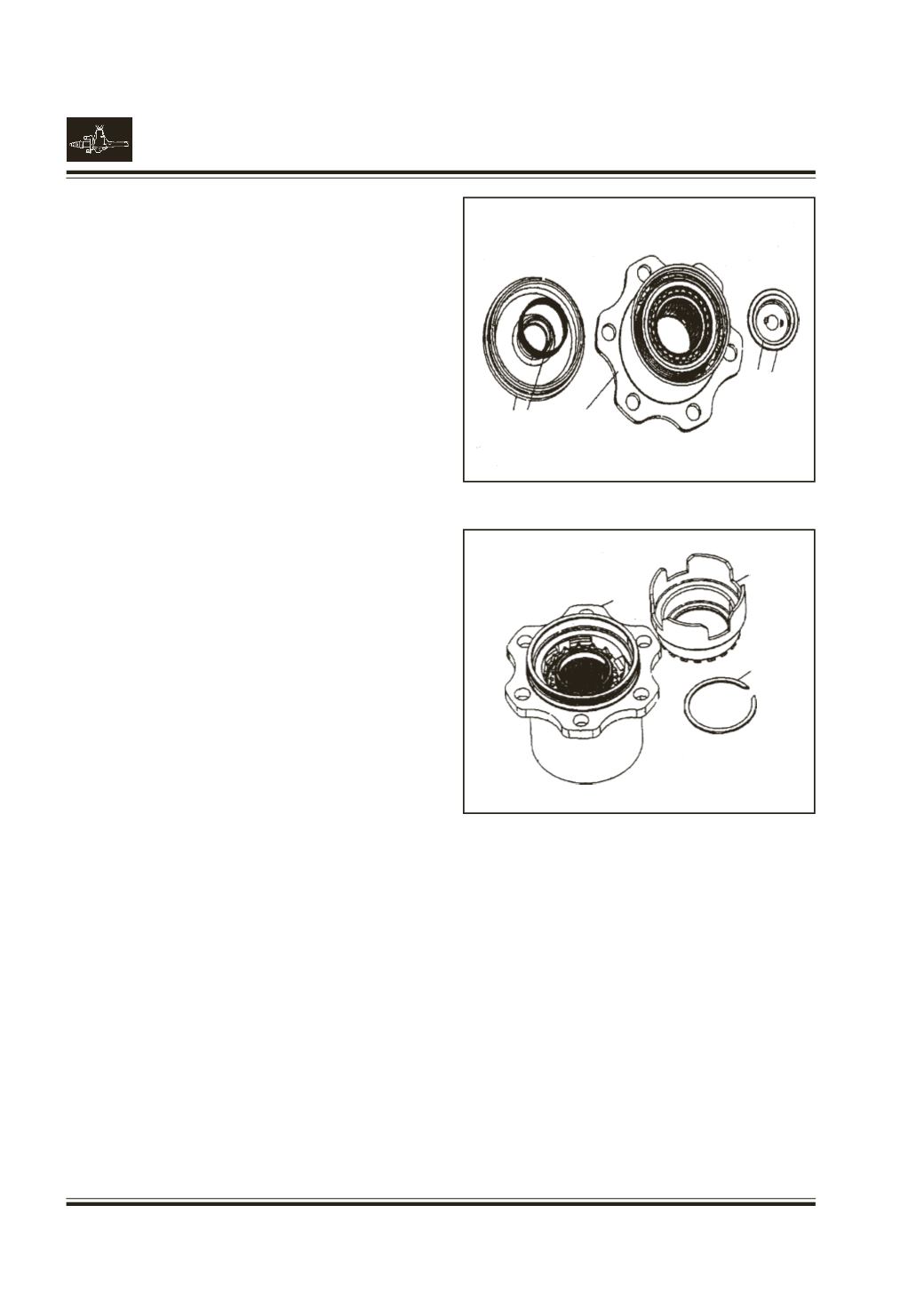

1. Remove the end cap and bearing race spring (4). Re

move the bearing inner race and retainer (5).Note the

position of the components for correct assembly.

2. Remove 6 nos. bolts of auto locking hub.

3. And pull out the hub assembly.

4. To make disassembly easier, install hub assembly on

the stand, so that the entire assembly can be

positioned vertically.

5. Remove the snap ring (27) with suitable plier. Exercise

cautionwhen removing the snap ring.

6. Remove the drag sleeve, with brake band (26).To lift

out the drag sleeve , rotate it slightly to release the

brake band tangs fromthe sleeves and tilt it upon the

side opposite the tangs.

Fig. 5

Fig. 6
