FRONT AXLE - 4
X
4
1. Specifications
Input Configuration
Female Splines
Output Configuration
Bolted Flange
(M 10 x 25mm, 6Nos. Bolts)
Location
74 mm dia and 'O' Ring for water resistance
Working Principle
Automatic Locking
Projected Length over from the
74.0 mm (Nom.)
face of the wheel hub
Lubricant
Drag Sleeve
: Darmex 123LT grease
Balance Parts
: ATF Oil
Assy. bearing race
: Light wheel bearing grease
Locking & Unlocking in degree.
90 Deg. (C.W. & C. C. W.)
Gross Weight
1.75 Kgs. Approx per hub
Appearance
Black Powder Coated with
Aluminium Decorative Plate

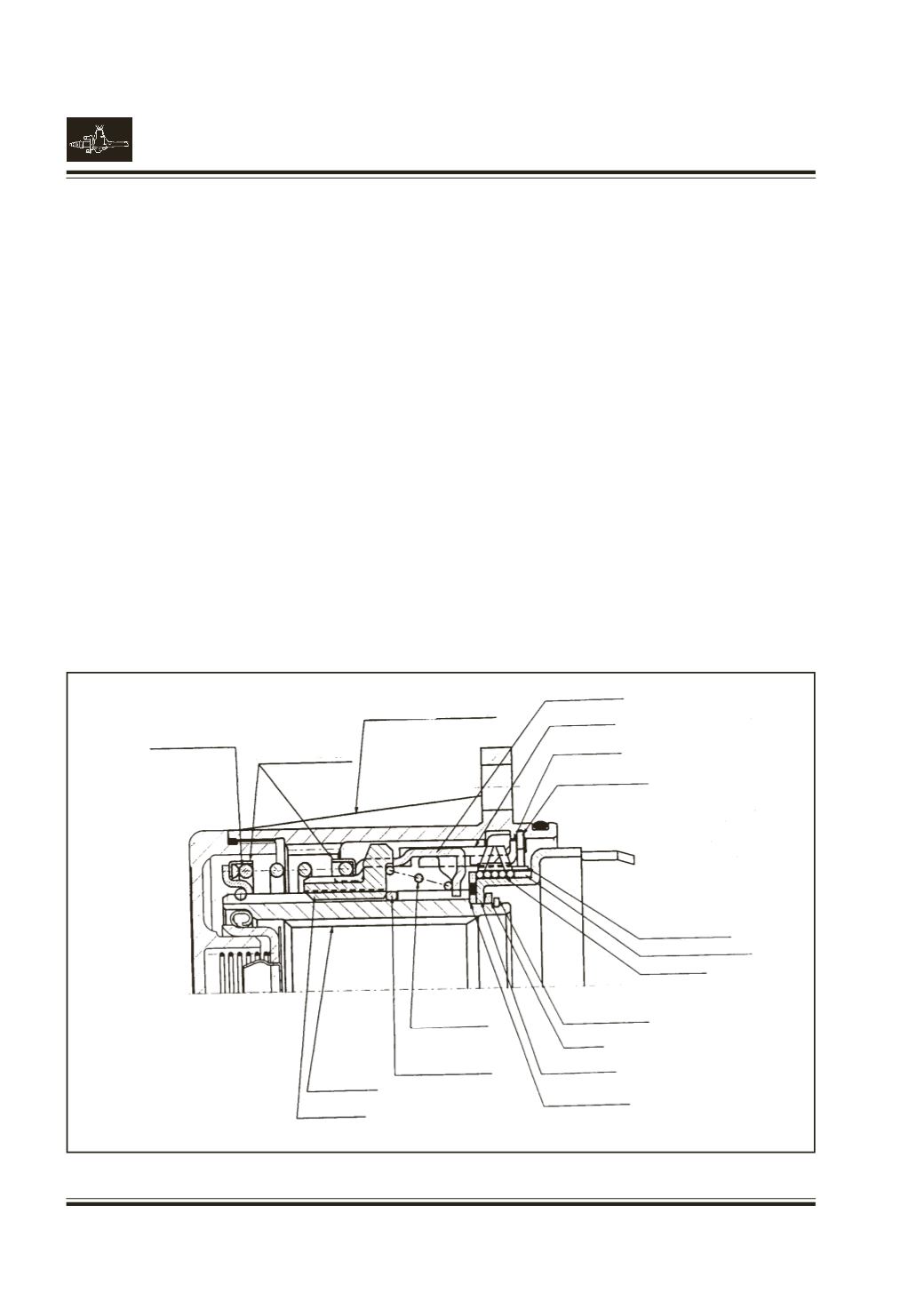

Fig. 1
RETURN SPRING
RETAINER SPRING
HOUSING. OUTER CLUTCH
CAMFOLLOWER
CAGE - INNER
CAGE - OUTER
RETAININGRING
RETAININGCLIP
BRAKE BAND SPACER
BRAKE BAND
RETAINER RING
SPACER
SLEEVE DRAG
WASHERDETENT
SPRINGGEAR
ENGAGING
RETATNINGRING
SLEEVE HUB
GEAR CLUTCH
