12. Combi Switch :

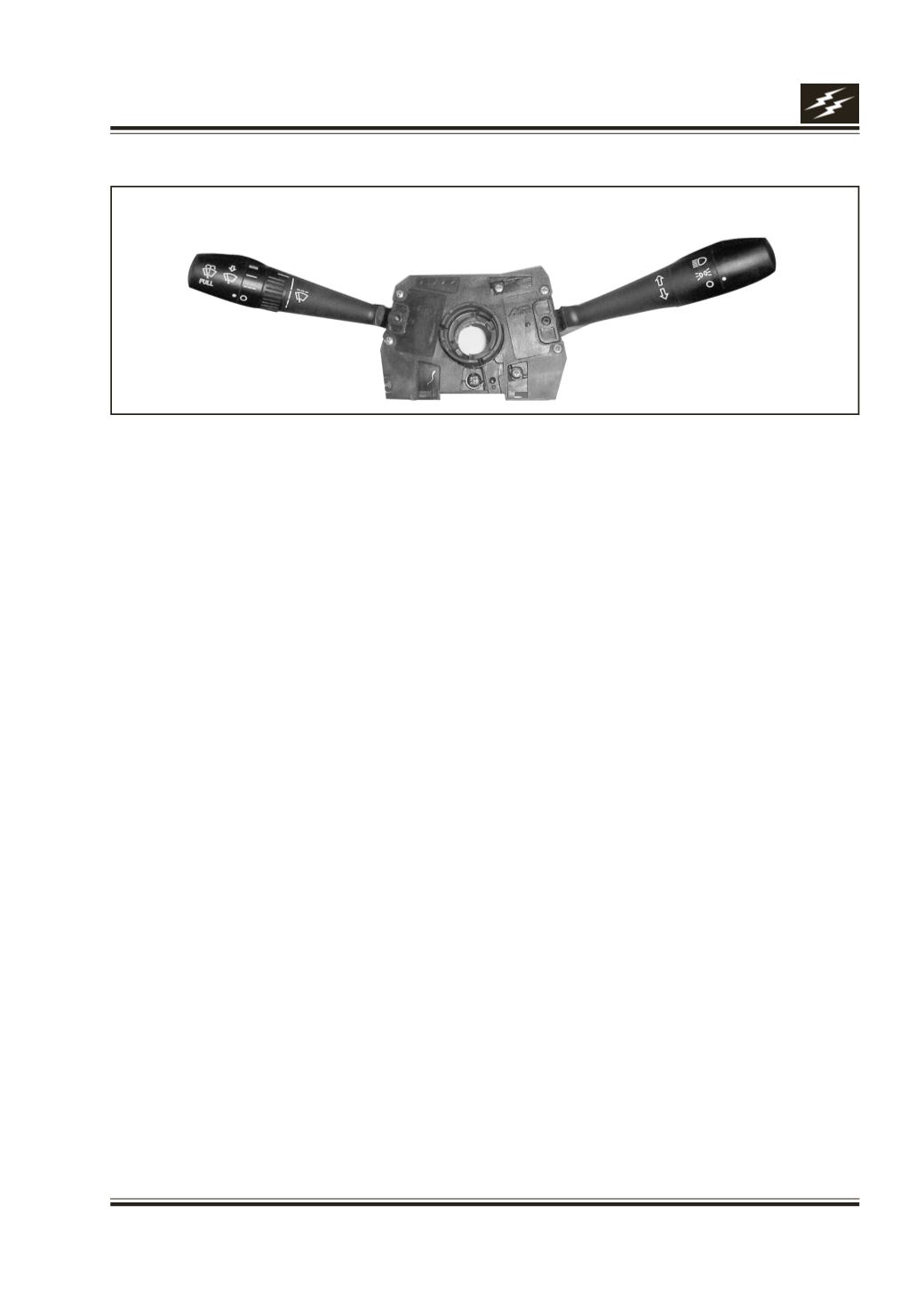

Fig. 22

COMBI SWITCH (RHD)

Fitment

The Switch should be located on the steering

column with Anti Rotation projection engaged on

the column slot.

Hold the Switch down against the top of the column

with switch body symmetrical about column axis

and tighten the clamping screw and check for firm

fitment by operating the stalks into all positions.

Fix the nacelle and check for fouling and operation

of the stalks in the extreme positions. Rubber flaps

(if fitted) should not come out of the window in

the nacelle and should not obstruct the movement

of the stalks.

Apply contact grease on the horn contact pin and

also smear the same to form a thin film on the

contact face of the contact ring on the steering

wheel.

Care should be taken to engage the cancellation

trigger projection into the slots on the steering

wheel boss and check for self cancellation of RHS /

LHS side indicator function and also clearance

between the switch to & bottom of the spring boss

and gap between contact ring and top of the

contact pin guide.

Make the electrical connections.

Remove

Please follow reverse procedure (relevant points)

Testing / Checking

No Serviceable Parts Inside, replace if it does not

operate as shown in Fig. 22

Please refer Electrical Circuits of Head Lamp Parking Lamp

System, Front Wiper Washer System.
