4 DLT ENGINE

Installation of accelerator cable

1.

Insert accelerator cable pedal end inside the

firewall hole.

2.

Insert inner cable end in accelerator pedal.

Refer fig. 194 & 195 RHD/LHD pedal end.

3.

Locate accelerator cable in clamp on firewall as

shown in the Fig. 194 & 195 and route the cable.

4.

Loosen the nut from the threaded end of the cable.

Engage the threaded end of the cable in throttle

body bracket. Insert inner cable end socket in

the FIP lever ball pin Fig. 196. Lock the socket

with spring pin No. 14, lock the ball pin No. 11

with lock plate No. 12.

5.

Adjust the dimensions 67 + 3 mm for RHD and

42 + 2 mm for LHD. Ensure tightness in inner

cable by adjusting the nuts on threaded end of

the cable.

6.

Ensure that when accelerator pedal is fully

depressed, full travel of throttle lever is achieved.

Removal of Accelerator cable

Removal of accelerator cable is in reverse order of

installation.

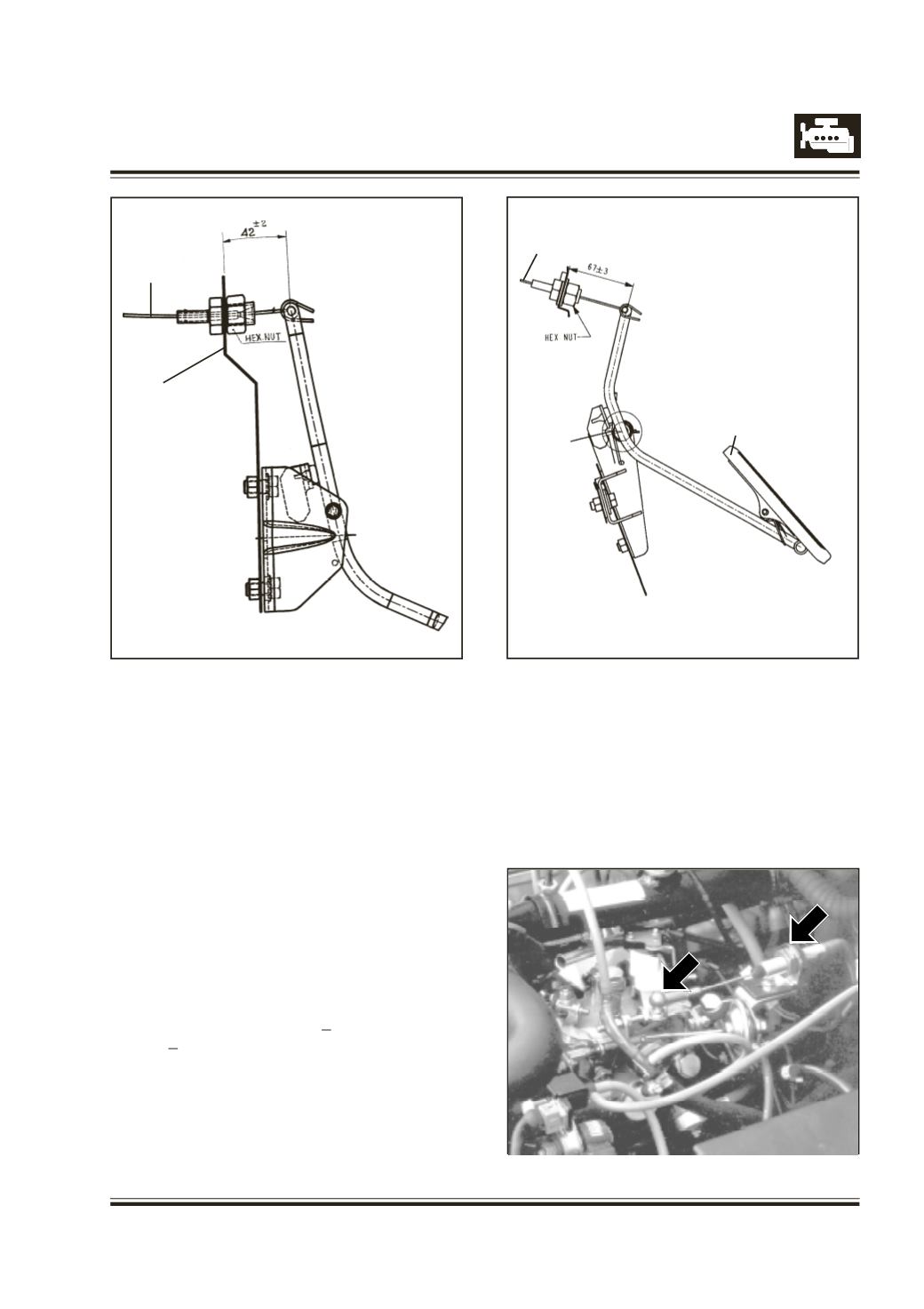

Fig. 194

Fig. 195

mm

mm

Fig. 196

LHD

RHD

Inner Cable

Fire wall

Accelerator pedal

Inner Cable
