4 PL FUEL SYSTEM

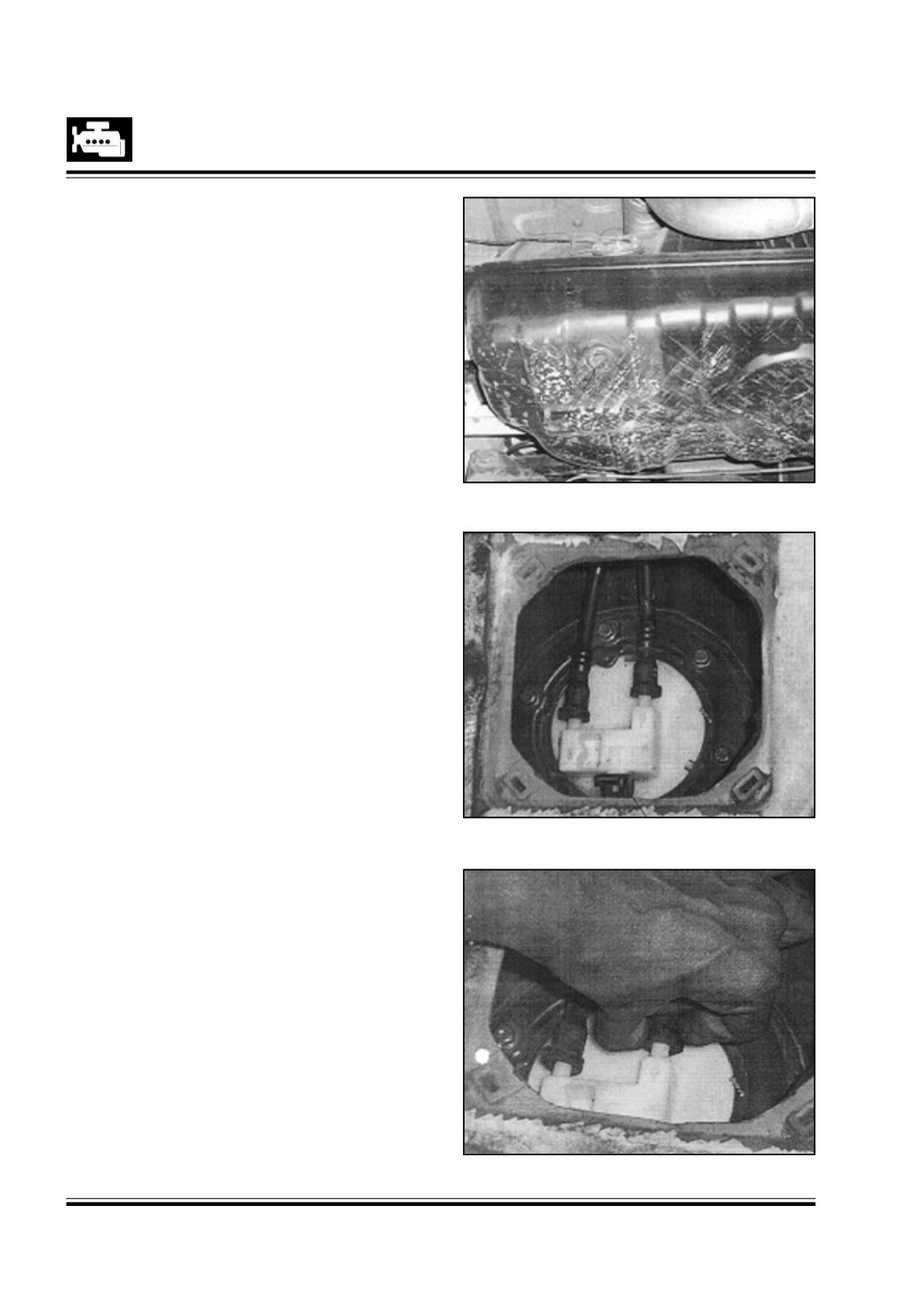

Fig. 5
Fig. 4
Fig. 3
FUEL TANK :
The fuel tank is located under the rear seat of the vehicle.
The fuel pump and fuel level gauge are assembledon the
upper part of fuel tank. For servicing the fuel level gauge
the fuel tank must be removed from the vehicle.
Removal :
1.
Remove fuel filler cap.
2.
Drain the fuel from the fuel tank before removing
the tank from the vehicle via drain plug (Fig 3). Do
not drain or store fuel in an open container to avoid
possibility of fire or explosion.Put lid on container.
3.
Releasing fuel systempressure - Since the fuel system
remains under pressure when the engine is not
running,release the fuel system pressure before
disconnecting any fuel lines as per following
procedure.
a) Start engine.
b) Disconnect fuel pump electric connector
located under middle floor carpet. (Fig 4.)
c) Let engine stall,then turn“OFF”ignition switch.
d) Disconnect negative cable at battery.
4.
Disconnect the fuel lines (delivery and return) from
the fuel pump. Disconnect quick fix couplings by
pressing the two tabs as indicated. (Fig 5.)
