SAFARI

ENGINE

132

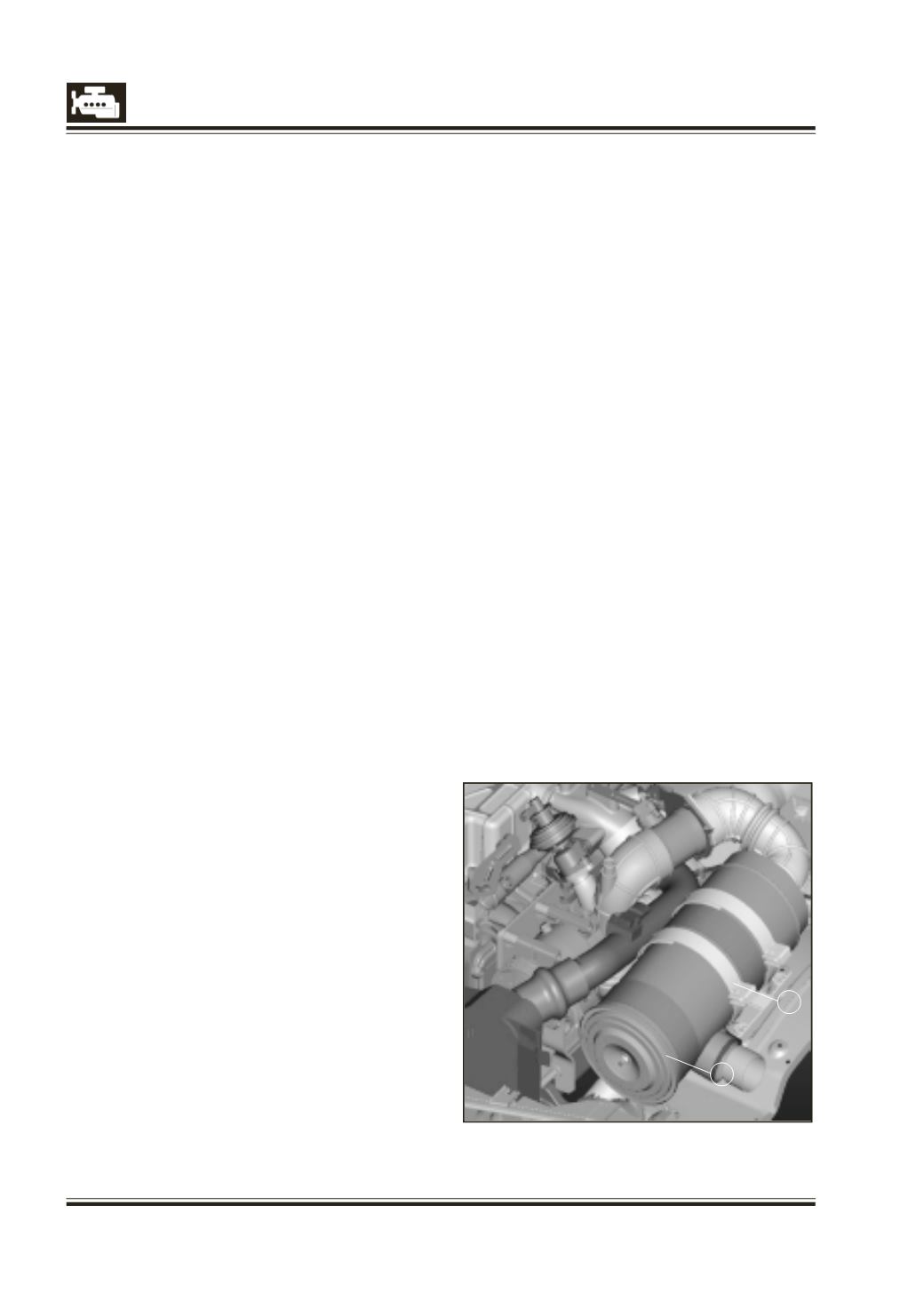

1 Air Filter

2 Air Filter mounting bracket

AIR INTAKE SYSTEM

Air filter and air Intake system

Air filter

Dry type Air filter of higher capacity 7 m

/min air

filter for higher air mass flow due to turbocharger

and higher dust holding capacity. Initial restriction

180 mm of H20.

General

Air filter serves to filter dust from intake air for the

engine. The air filter on the Safari DICOR is dry type.

This also serves to dampen intake air noise. In

addition to dust separation, the filter has a high

dust holding capacity.

Operation

In dry type air filter the air flows into air filter

chamber due to suction pressure. The dust is

separated by the filter cartridge and clean and dust

free air is sucked in the engine.

Maintenance

A service indicator is fitted on the filter outlet which

indicates high pressure drop due to dust

accumulation. This indicator is to be checked during

servicing after specified kms. If the red band

appears then the cartridge should be cleaned with

pressurized air. The cartridge to be replaced after

specified kms.

Choked air filter cartridge causes

1. Increased wear of piston and cylinder bore.

2. Loss of power and pickup.

3. Increased fuel consumption.

4. High smoke.

The cartridge to be replaced in above mentioned

conditions.

Removal

1. Loosen hose clips and remove hose (air filter to

turbocharger).

2. Plug the pipe to turbocharger to avoid entry of

foreign objects in the pipe. Any foreign material

can seriously damage the turbocharger leading

to its replacement.

3. Unscrew strap clamp nuts holding the air filter

on the filter mounting bracket and release the

clamp. Remove the rubber strap.

4. Loosen the hose clamps of air intake hose (from

side panel) to air filter.

5. Lift the filter housing and keep it on the work

bench.

6. Remove the rear cover of the filter housing by

unscrewing the central bolt nut holding the

paper filter cartridge. Remove the seal.

7. Unscrew the nut and remove the air filter

cartridge.

8. Unscrew the service indicator.

Assembly and Installation

1. Insert the cartridge in the central clamp bolt

with rubber seal.

2. Fit the rear cover and tighten the clamp nut on

the clamp bolt with 25 Nm torque.

3. Place the bottom rubber straps on the filter

clamp and place housing on the clamp.

4. Insert the inlet of the air filter in to the inlet

hose from the side panel.

5. Place the straps on the upper clamps and clamp

the upper clamps with the bolts.

is not functioning efficiently it is recommended to

replace it with new one.
