4 DLT ENGINE
FUEL SYSTEM
Introduction :
The Diesel vehicle fuel system consists of following
components :
1.
Fuel tank assy.
2.
Fuel tank strainer.
3.
Fuel filter (on Engine)
4.
Fuel level gauge.
5.
Fuel filler cap
6.
Fuel hoses and fuel lines (i.e.
delivery & return lines)

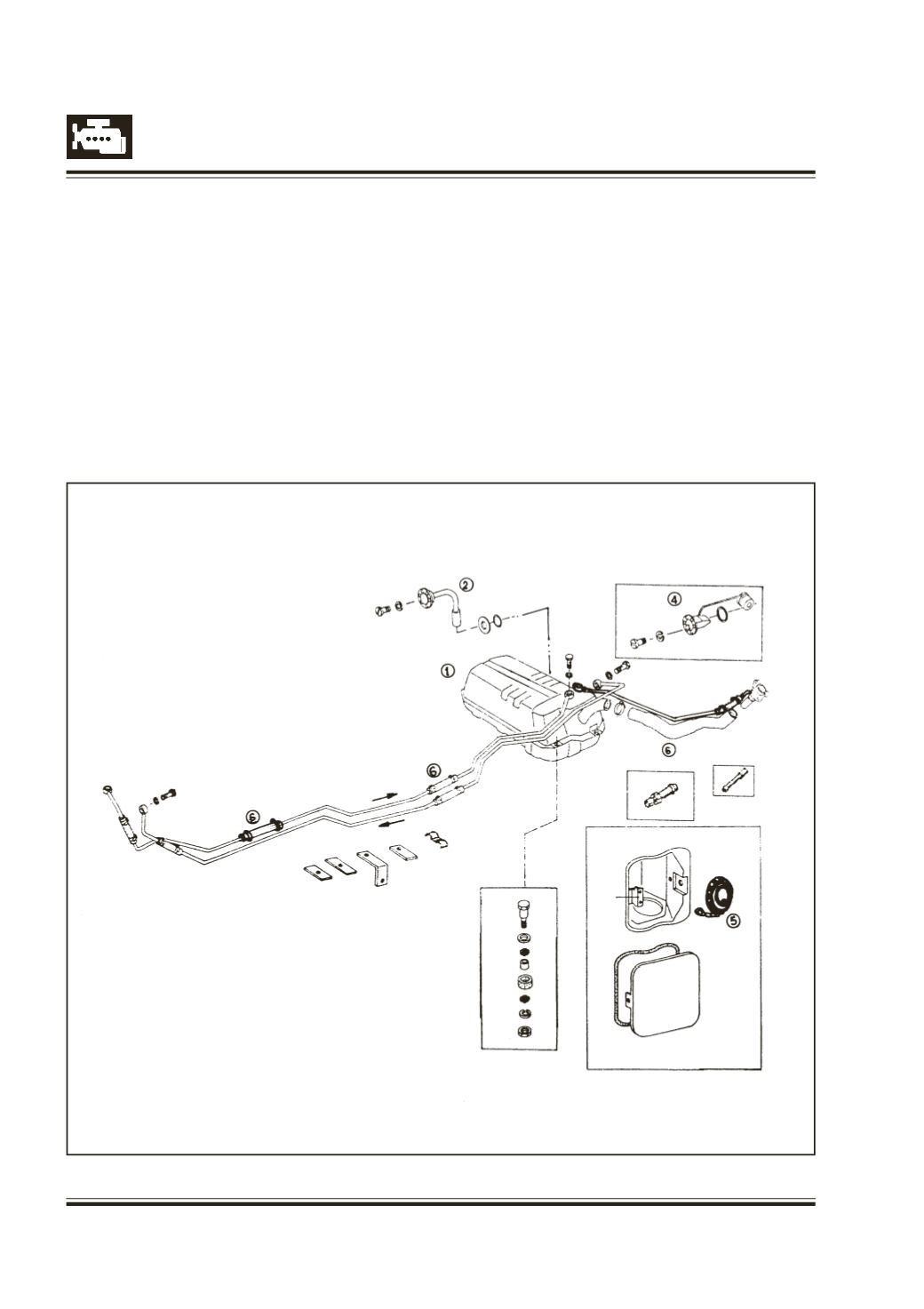

Fig. 176 Fuel system exploded view
Warning :
l
While removing the fuel tank from the vehicle,
keep sparks, cigarettes, and open flame away
from it.
l
Before repairing fuel tank assy., clean it
thoroughly
l
Always wear safety glasses.
1.
Fuel tank assy.
2.
Fuel tank strainer.
3.
Fuel filter (on Engine)
4.
Fuel level gauge.
5.
Fuel filler cap
6.
Fuel hoses and fuel lines (i.e.
delivery & return lines)
