SAFARI

4 DLT ENGINE

FIP TIMING :

Refer following table for setting FIP timing based on

engine & FIP types.

Engine Type FIP Timing (in mm)

Mico

Lucas

483 DLNA Euro I/II

0.90+0.02 0.70+0.02

4DLTC Euro I

0.83+0.02 0.90+0.02

4DLTC Euro II

0.71+0.02 0.90+0.02

4DLTC Euro III

0.90 + 0.02

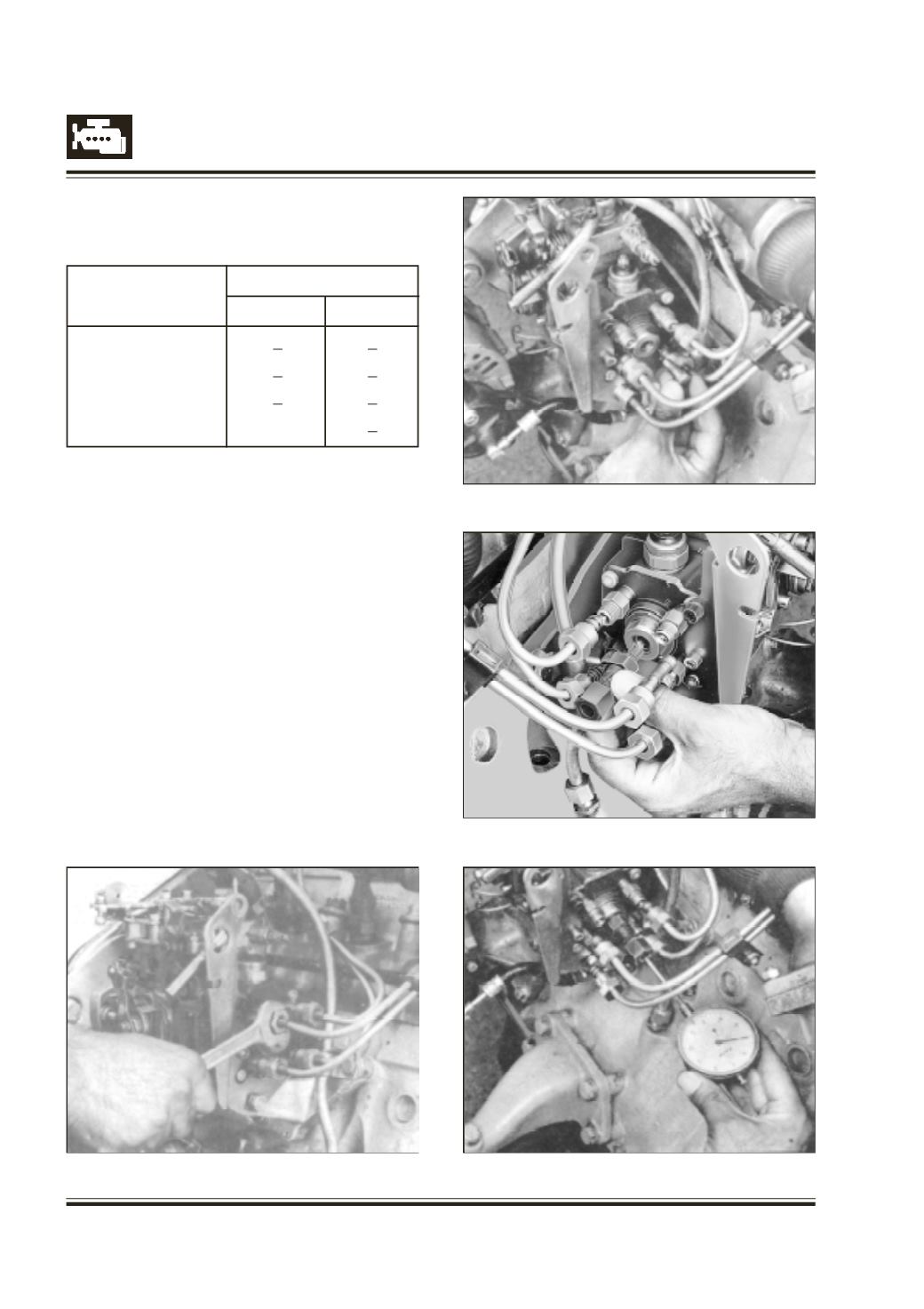

F.I.P. TIMING SETTING PROCEDURE (MICO)

[4DLTC Euro II]

nsure that timing pin is located in the flywheel hole

through the cylinder block rear wall.

isconnect high pressure injection pipes from

injectors to fuel injection pump. Refer Figure 152

lightly loosen fuel injection pump front mounting

nuts and rear mounting taper nut.

emove timing plug on fuel injection pump.

Refer Figure 153

it timing adapter, 2654 5890 05 09 in place of timing

plug. Refer Figure 154

emove timing pin from the flywheel.

ount dial gauge in timing adapter with some

preload. Refer Figure 155

Fig. 153

Fig. 154

Fig. 155

Fig. 152
