GEAR BOX G-76
Fig. 68
iii. SHIFTERSLEEVES
There are three types of shifter sleeves.
3rd/4th shifter sleeve is without any groove on its outer
diameter.
1st/2nd shifter sleeve is with one groove on its outer
diameter.
Reverse/5th shifter sleeve is having two grooves on its
outer diameter. Ref Fig. 68

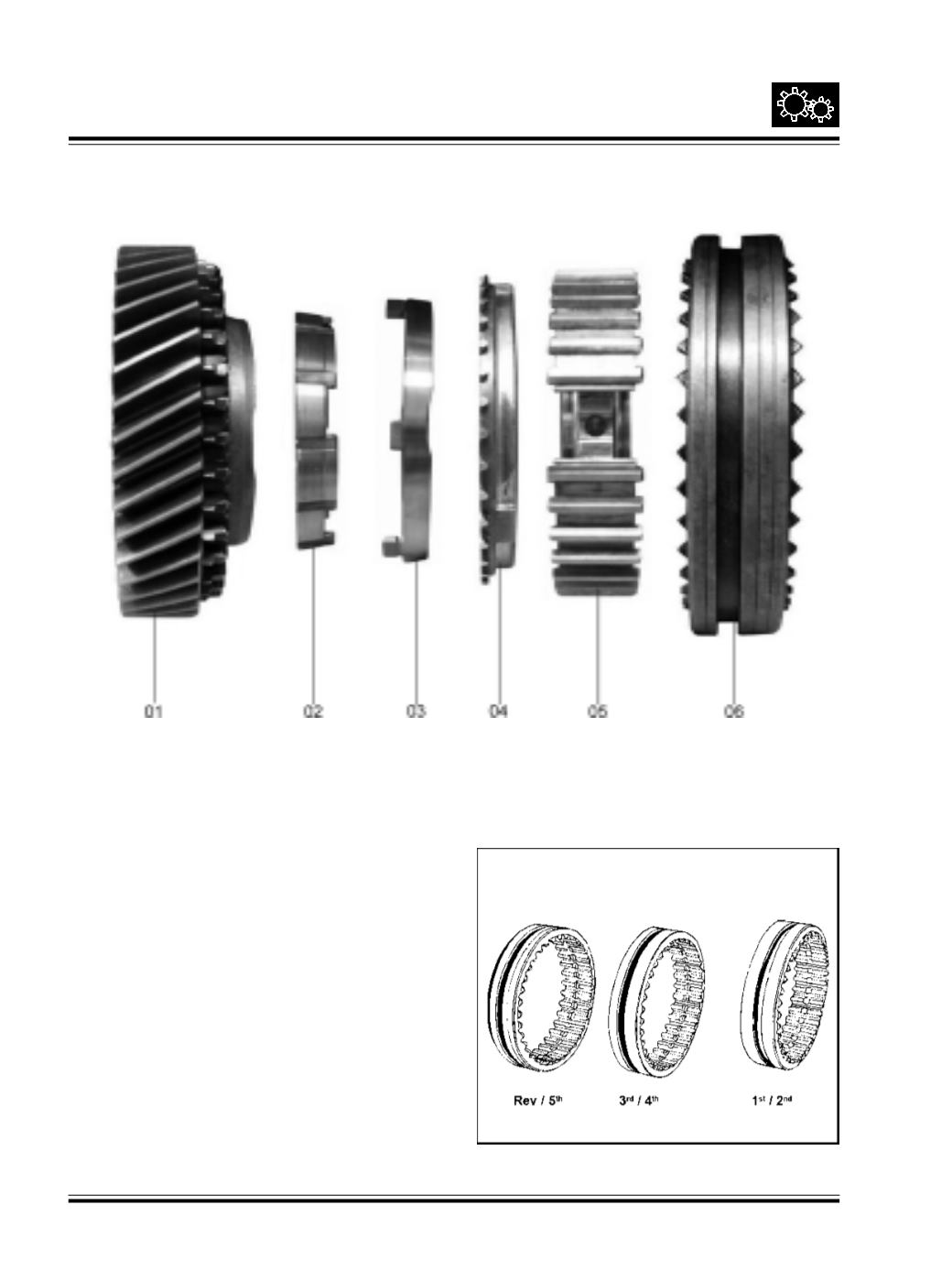

Fig. 67
01 2ND / 3RD speed gear.
02 Inner synchro cone.
03 Intermediate cone.
04 Outer synchro cone.
05 Engaging gear.
06 Shifter sleeve.
INTRODUCTION TODOUBLE SYNCHROCONE.
