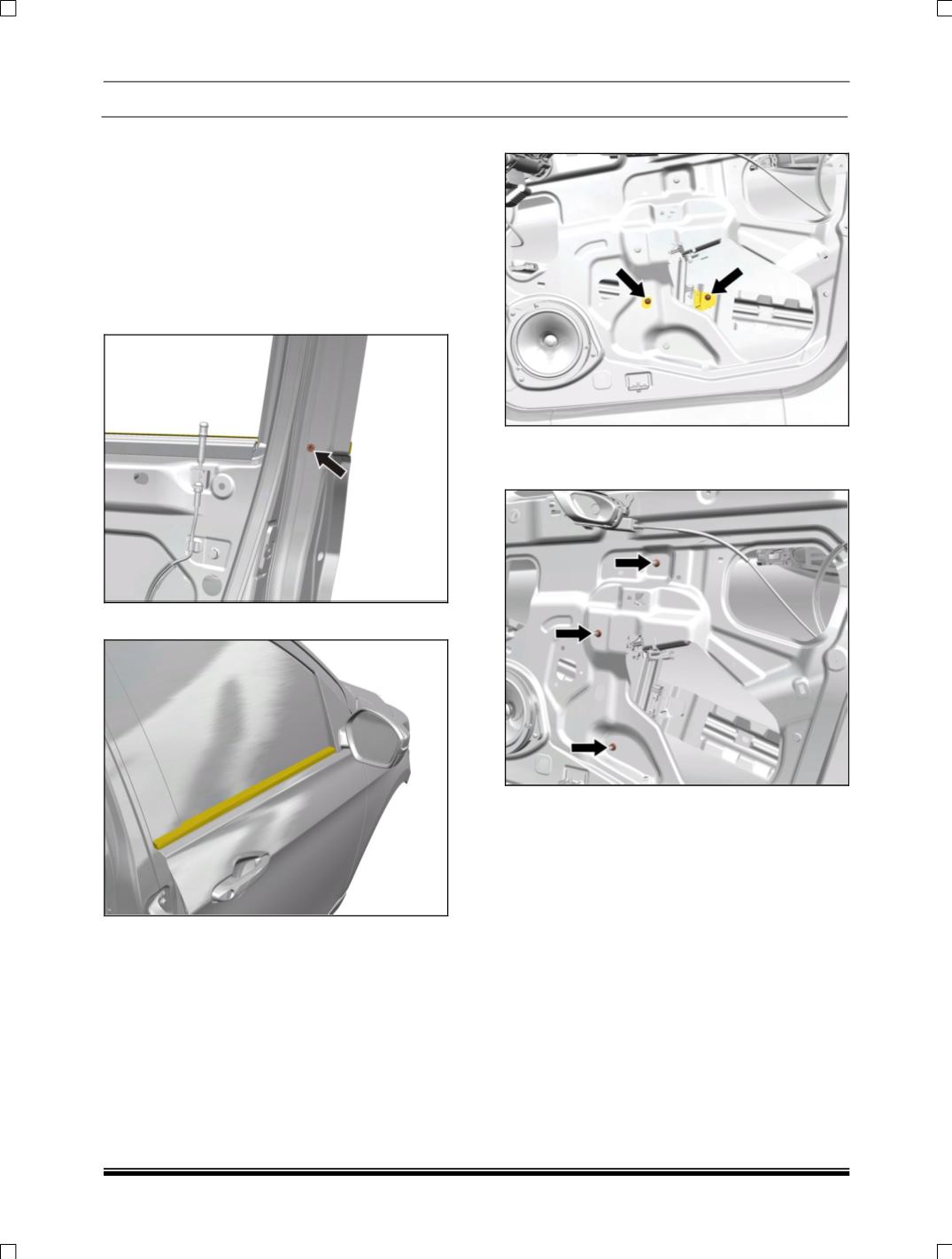

9.2.13 FRONT DOOR GLASS AND WINDOW

WINDING MECHANISM

REMOVAL

1. Before starting to remove first lower the

window glass.

2. Remove the door trim.

(For procedure refer

door trim removal procedure.)

3. Open the front door and loosen and remove

mounting screw of the outer belt.

4. Remove the outer

belt

of door window.

5. Remove the glass mounting screws.

6. Remove the glass from the window.

7. Loosen the window winding mountings.

8. Remove electrical connection of window

winding motor.

9. Remove Window regulator rail with Motor

assembly from Door assembly.
