ELECTRICAL
59
c)

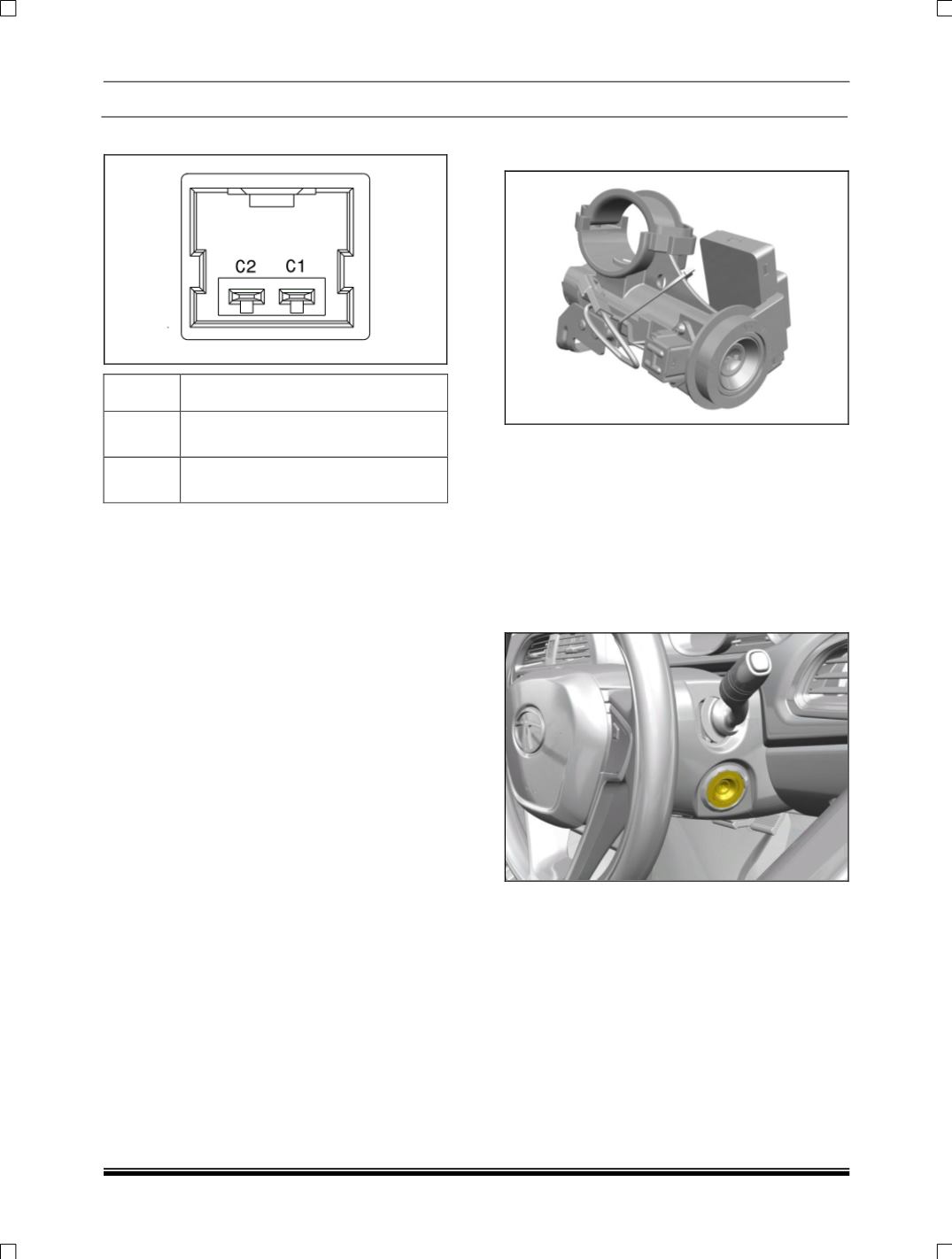

Horn connector
PIN
DETAIL
C1
To steering wheel for horn
(+ve)
C2
To steering wheel for horn
(-ve)
8.14 STEERING LOCK CUM IGNITION
SWITCH
FUNCTION
To lock the steering wheel
To start & stop the engine
To switch on accessories and other electrical
system
LOCATION
It is fitted on steering column below the steering
wheel and combi switch.
REMOVAL & REFITMENT OF STEERING
LOCK CUM IGNITION SWITCH (SLCIS):
REMOVAL:
1. Disconnect battery negative terminal.
2. Remove steering nacelle. Refer “Removal &
refitment of steering nacelle" from steering
section.
3. Remove steering wheel. Refer “Removal &
refitment of steering wheel" from steering
section.
