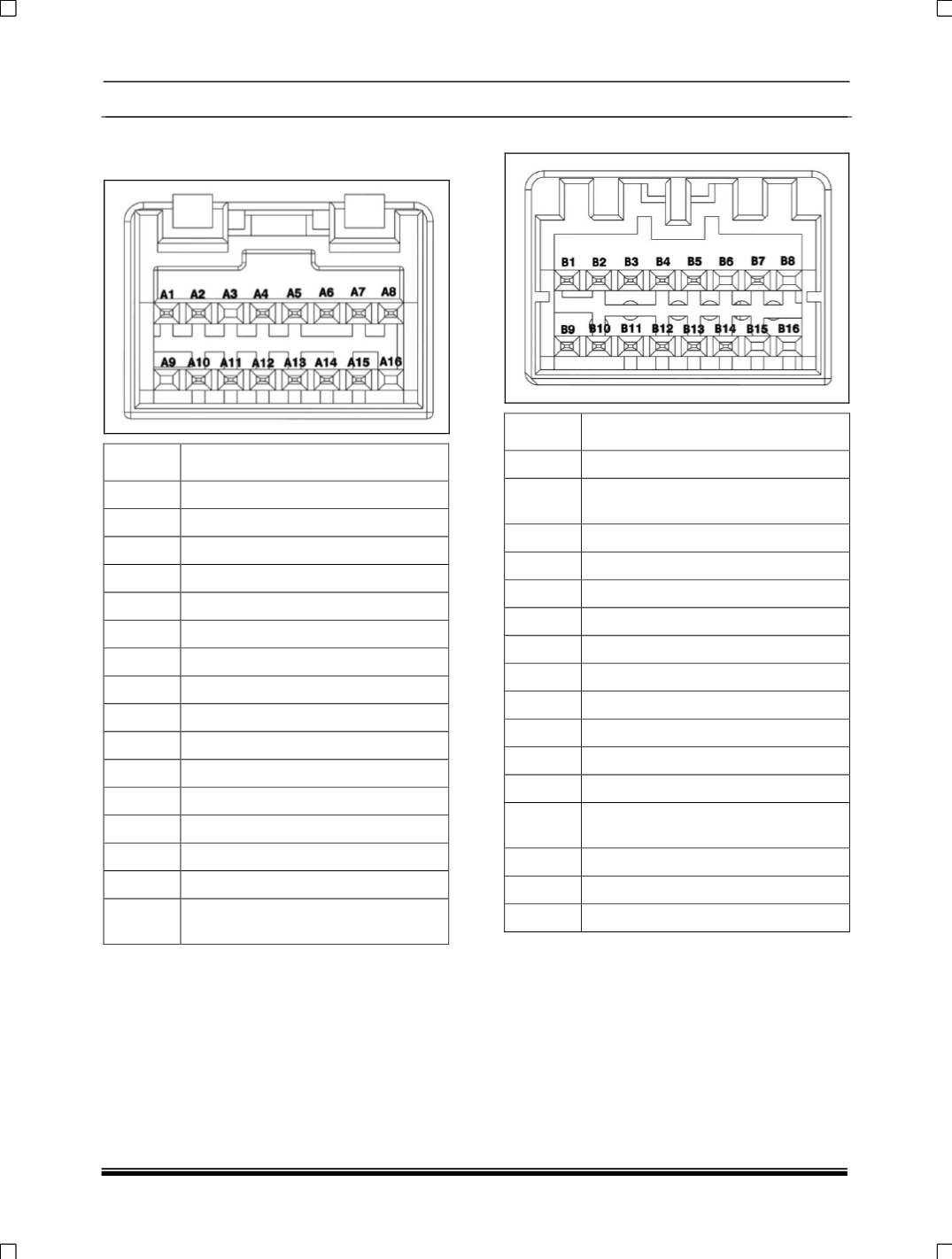

PINOUT DETAILS:
a) Light Stalk connector
PIN
DETAIL
A1
DIP Beam terminal 56b
A2
Feed for HL flash
A3
Dummy
A4
MAIN Beam terminal 56a
A5
LH turn
A6
RH turn
A7
Turn feed signal (GND)
A8
Lighting feed for HL relay 56
A9
Dummy
A10
Head lamp to relay feed
A11
Ground
A12
Head lamp leveling
A13
Ignition feed
A14
Ground feed
A15
Parking light (58)
A16
Dummy (protected for auto
head lamp)
b) Wiper Stalk connector
PIN
DETAIL
B1
Ground
B2
In BCM pin connected to
ground
B3
Front wiper ON/OFF relay
B4
In BCM pin
B5
Front wiper slow/fast relay
B6
Dummy
B7
Front wash in put relay
B8
Dummy
B9
Dummy
B10
To wash pump relay
B11
Rear wiper ON
B12
Ground
B13
Ignition supply in case of BCM
version
B14
INT analog input to BCM
B15
Dummy
B16
Dummy
