TIAGO

ELECTRICAL

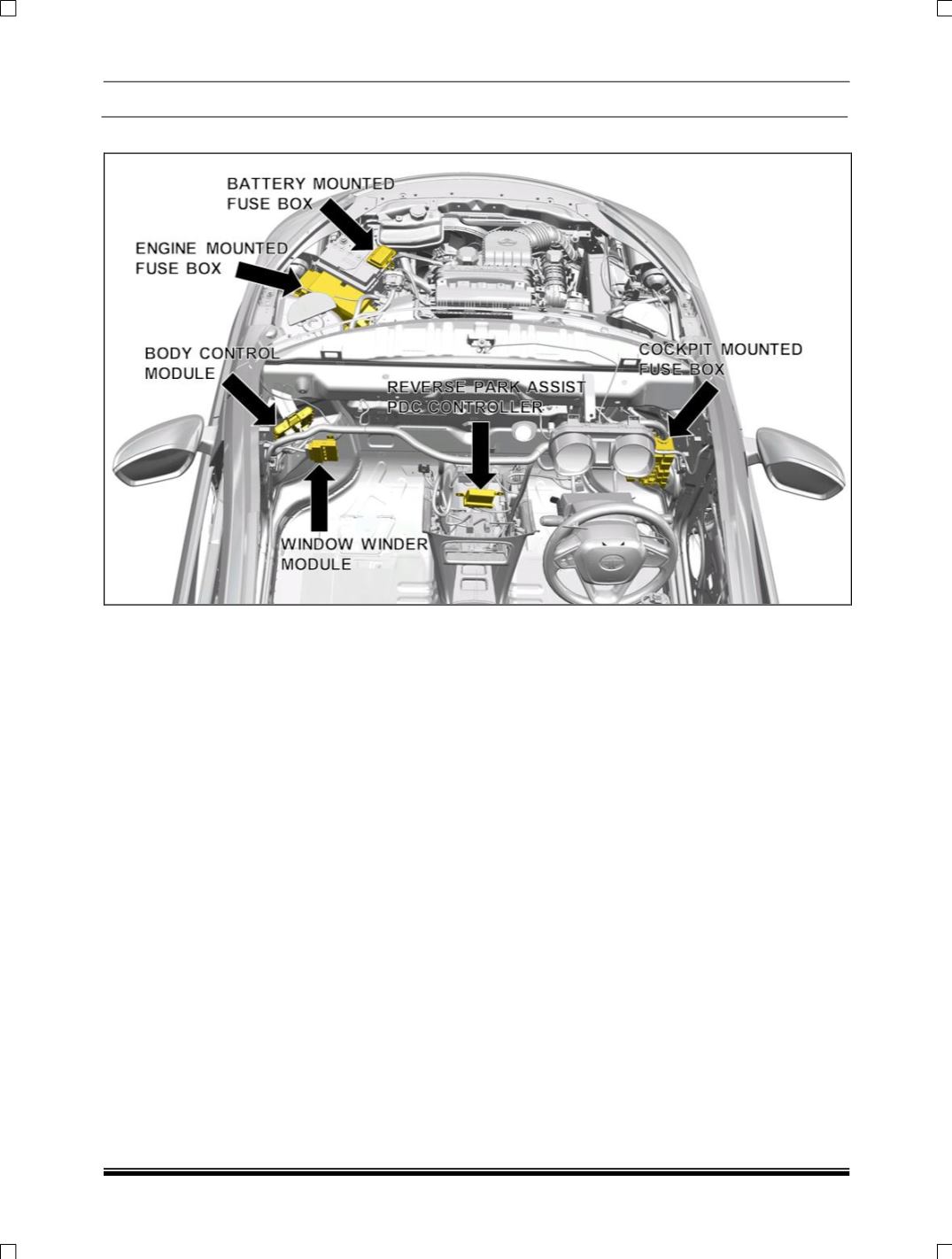

8.3 FUSE BOX / RELAY LOCATIONS (Applicable for RHD variants)

LOCATION:

All the electrical circuits in the vehicle have fuses

to protect them from a short circuit or overload.

These fuses are located in 3 fuse boxes.

i. Cabin or cockpit fuse box

ii. Engine compartment fuse box

iii. Battery mounted fuse box

Checking & Replacing Fuses

If any electrical unit in the vehicle has stopped

functioning, fuses should be checked first.

Procedure to follow:

1. Turn the ignition key to lock position.

2. Remove battery terminal

3. Remove cover of the fuse box.

4. Check each fuse & look for broken/open

controls link wire inside the fuse. If it is burnt,

replace it with one of the spare fuses of same

rating.

5. If replaced fuse of same rating burns out then,

there is probably a serious electrical problem.

Note:

Use designated fuses only.
