1.2L REVOTRON ENGINE
143

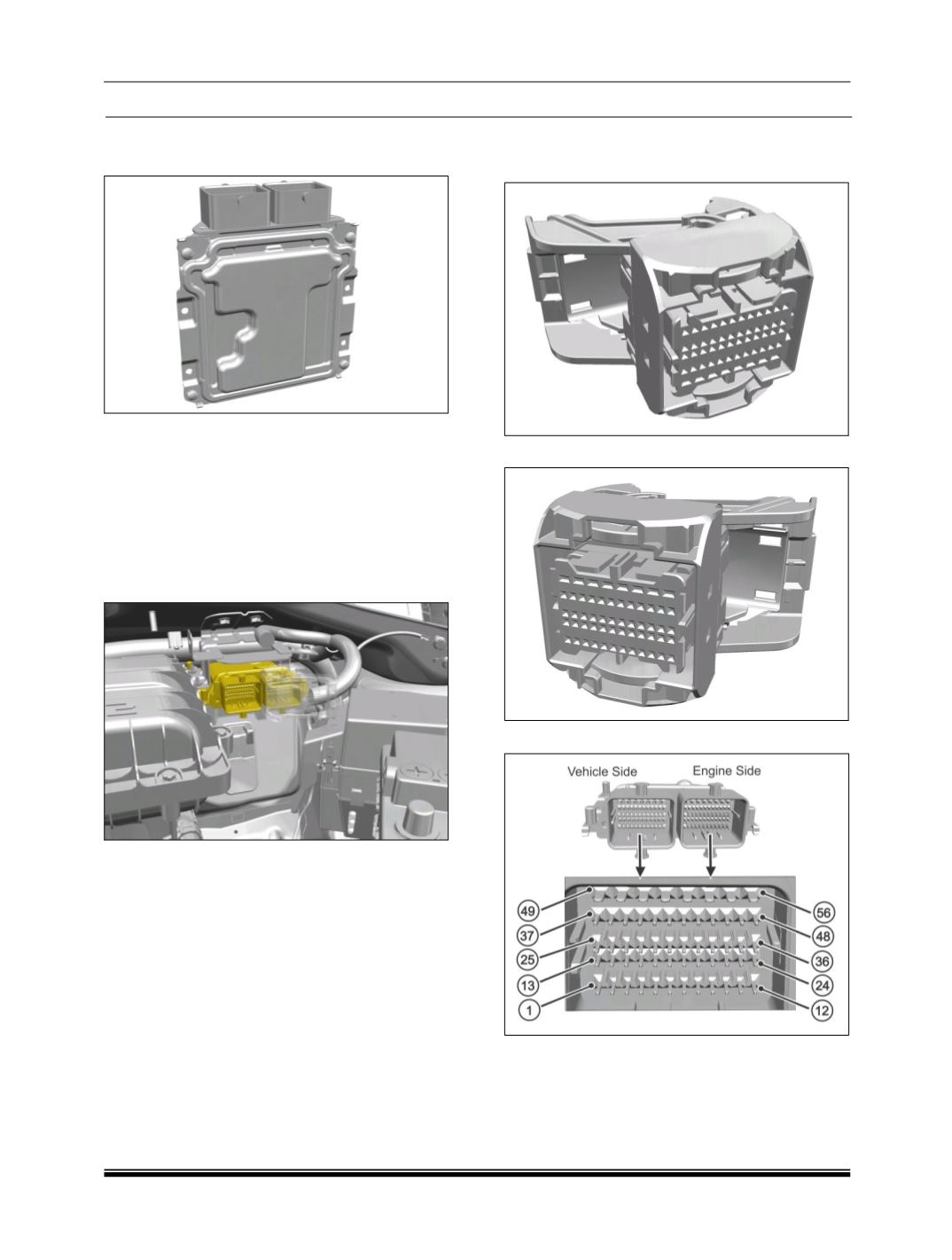

C. Electronic Control Unit (ECU) :
ECU description and operating conditions:
The ECU is designed for 6000 h of operation, a
lifetime of 15 years, and an average of 2 cold
starts per day.
Operating temperature: -40° to +85°C, The
maximum air temperature inside the ECU is 105
°C.
ECU Location :
Electronic Control Unit (ECU) is mounted in
engine compartment.
Storage Temperature :
Please store the ECU around 10°C - 40°C with
relative room humidity: 25% - 75%
Connector Images :
Engine Connector :
Vehicle Connector :
Connector Pin out :
