1.2L REVOTRON ENGINE
139

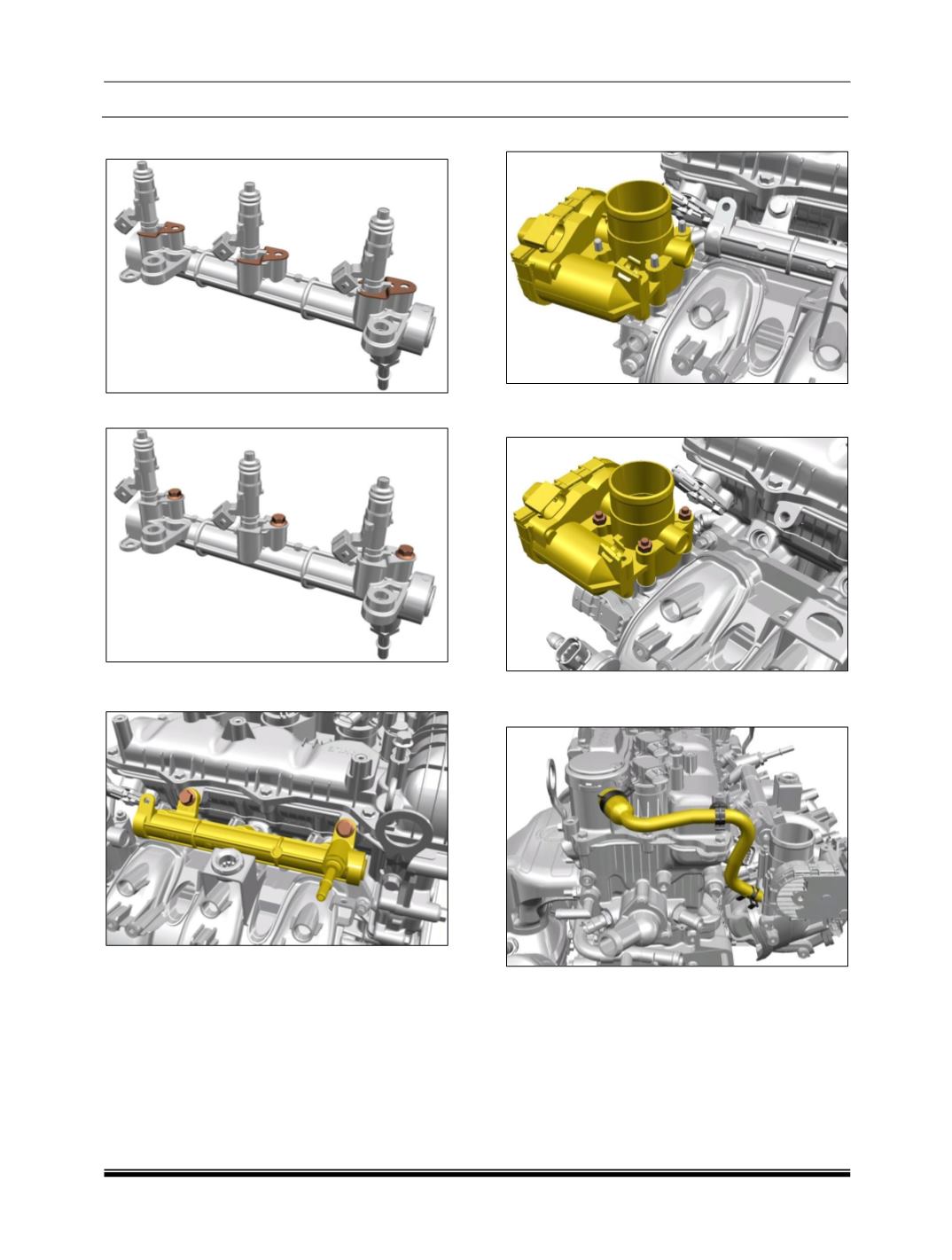

4. Refit the Injector Retainer.
5. Tighten the injector fastener.
6. Assemble the Fuel Rail along with the
injectors.
7. Place the Electronic Throttle Body on studs.
8. Fit the Electronic Throttle Body by tightening
the 4 nuts.
9. Refit the Rubber hose from Head cover NRV
to Intake manifold.
10. Refit the Spring Band Clamp.
