3 CYL DIESEL ENGINE
103
ASSEMBLY
Don't hold the fuel pump unit by tubes,
wires, fuel level sensor unit.
Remove the protection cap only before
assembly of the hydraulic connector.
The fuel pump unit only has to be fixed at
the outer diameter of the tank flange during
assembly into fuel tank.
During transport of the tank with assembled
fuel pump unit. It is absolutely necessary to
protect the tubes with protective caps
against dirt, particles etc.
Return line of vehicle has to be clean.
Hydraulic protection cap : Protection only
against dust and splash water
CONDITION OF USE
Minimum tank filling height for start of the
engine after first filling equal to 25 mm from
bottom of reservoir. (Only valid for
horizontal tank bottom)

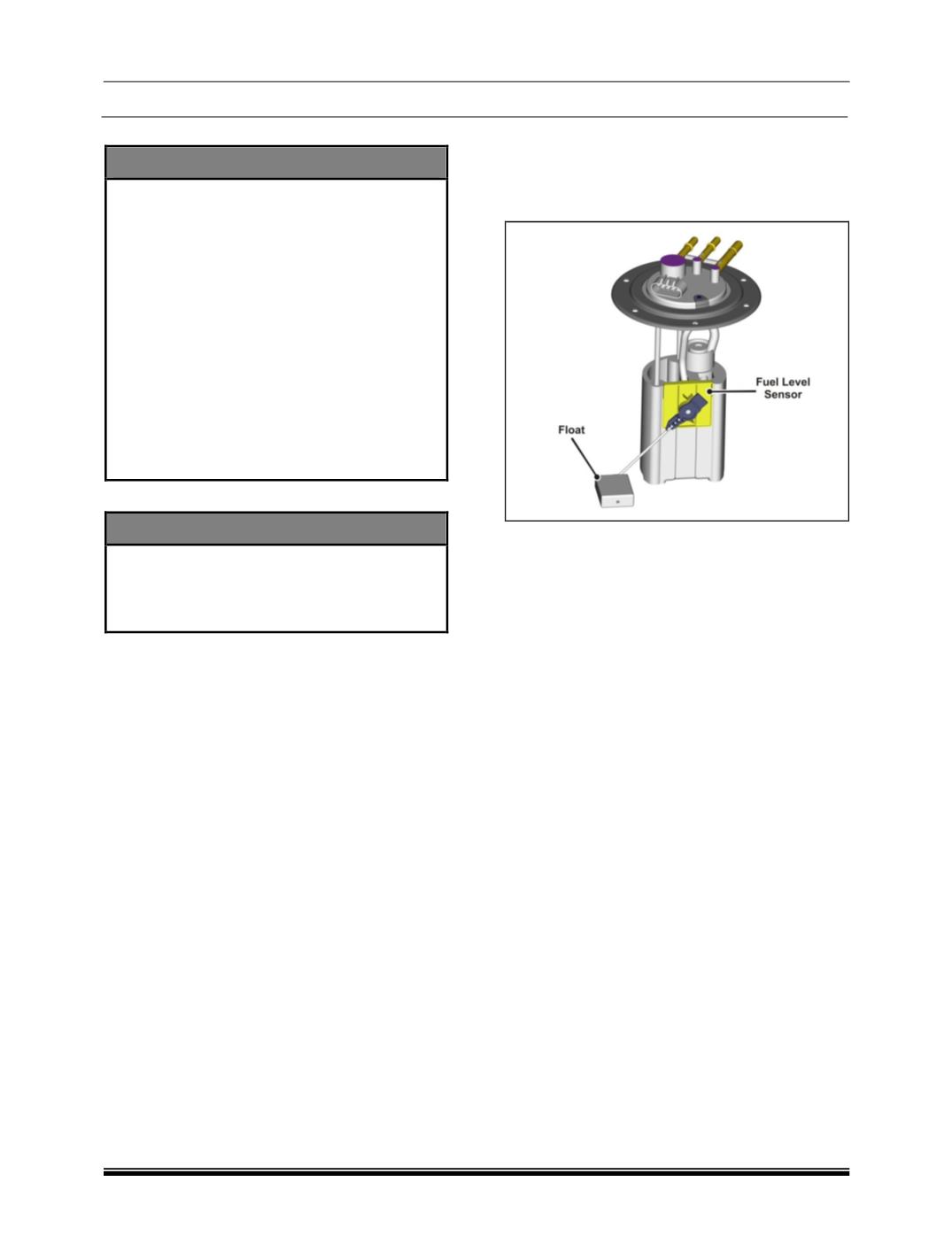

E. Fuel Level Sensor :
Removal :
1. Remove the tank unit.
2. Disconnect the connector.
3. Remove the fuel level sensor by releasing the
snaps.
Fuel Level Sensor Specification :
Vehicle operating voltage : 12V DC with -ve
ground
Operating voltage : 8V to 16V
