SAFARI

ELECTRICALS

Fig. 20

Fig. 19

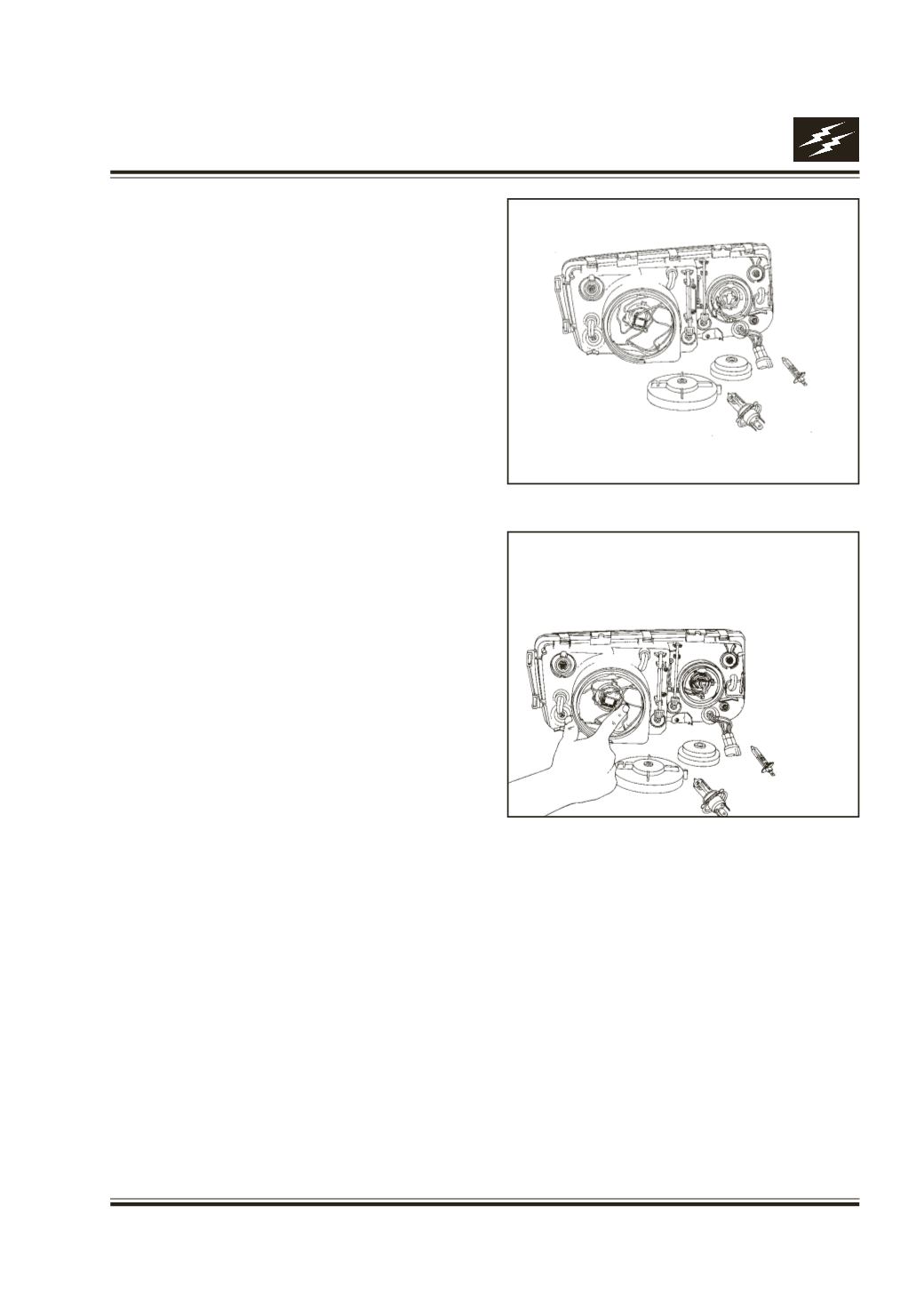

Head Lamp Bulb Replacement Fig. 19 & 20

Raise the bonnet of the vehicle. Unscrew & pull out

the rear protective cover. Pull out the cable socket

from the bulb. Remove locking lever holding the bulb

and remove the bulb.

Install new bulb, properly locating it in the housing.

Fit back the locking lever cable socket and cap.

Repeat the same procedure for pencil beam lamp.

Realign Head Lamp after Replacing Bulb

Do not clean or touch the reflector as it will damage

the mirror finish of the surface.

Your vehicle has halogen head lamp bulb and pencil

beam bulb one each on each side. When replacing,

handle it by steel base. Protect the glass from contact

with your skin or hard object. If you touch glass, clean

it with denatured alcohol and clean cloth.

Note :

Halogen head lamp bulbs get very hot when lit. Oil,

preparation or a scratch on the glass can cause the

bulb to overheat and shatter.
