SAFARI

ELECTRICALS

13. DIGITAL CLOCK :

Note :

Refer body group for assembly / removal of

centere console, before you proceed.

Snap Fit Type

Press holding latch & push from the back, disconnect

wiring to remove. For fitment, make connections &

insert in the cavity from front.

Testing / Checking

No serviceable parts inside. Replace the Clock if not

functioning.

Please refer Electrical Connections for Digital Clock

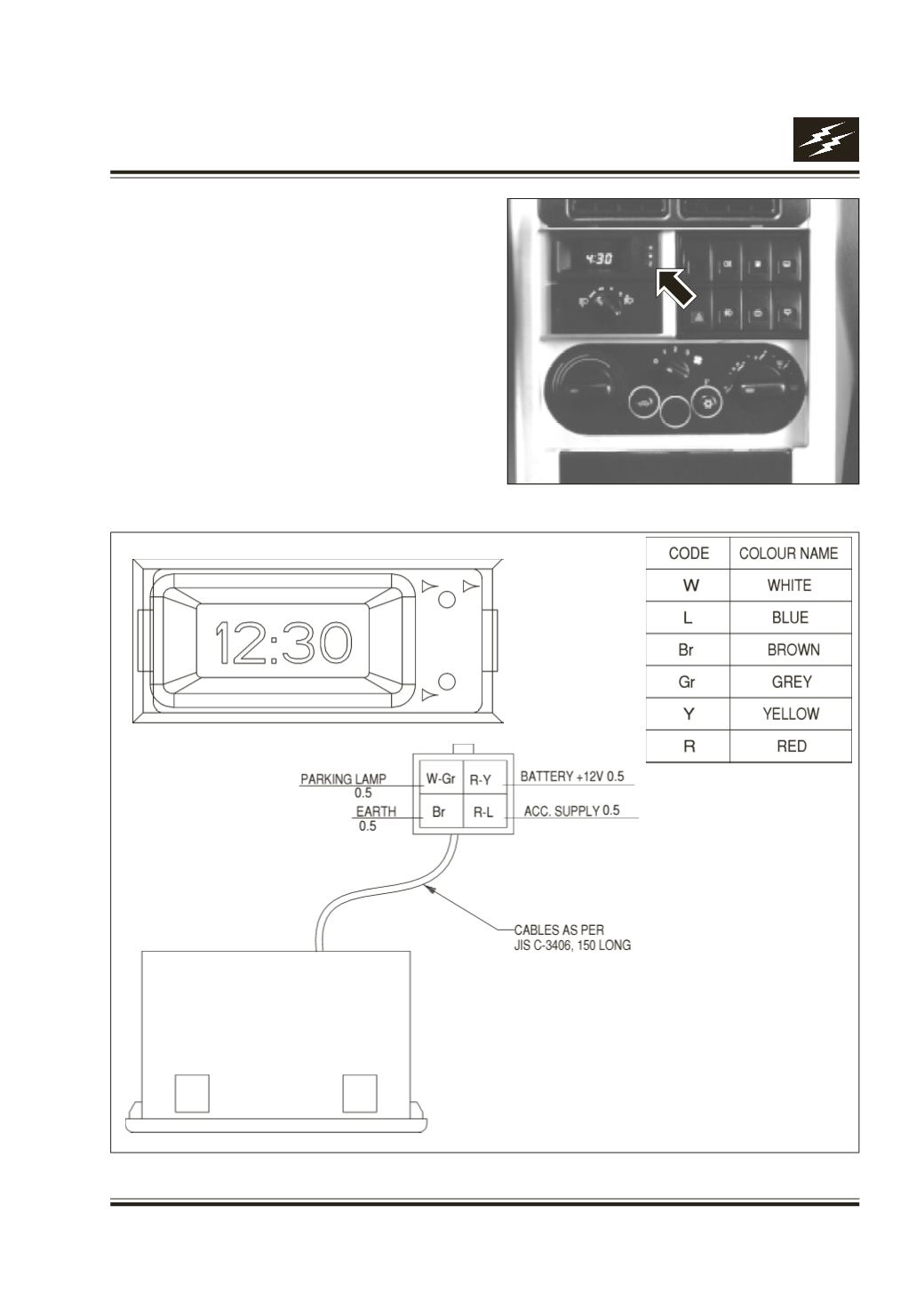

Fig. 25 Digital Clock

MSSL

CONNECTOR HOUSING : 6070 4471 ETO2-1W

TERMINAL : 8230 4040 HSG 30-1

VIEW OF CONNECTOR SHOWN FROM CABLE

ENTRY SIDE.

Fig. 24
