SAFARI

677 / 1525

27
ELECTRICALS
11. HORN :
Remove
1. Remove front number plate.
2. Disconnect connection from horn.
3. Remove bolt securing horn to mounting bracket.

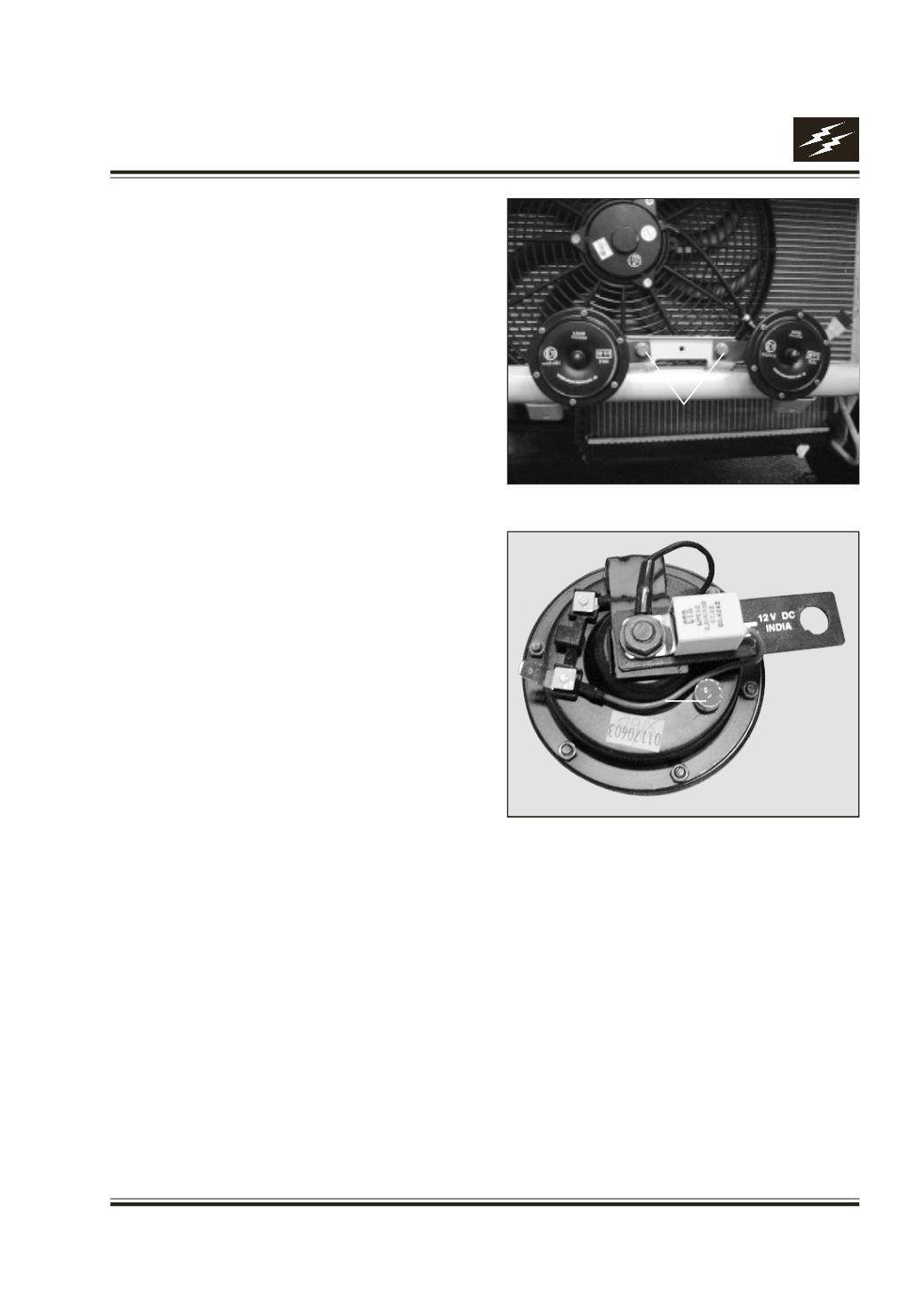

Fig. 21
4. Remove horn.
Fitment
1. Position horn to mounting bracket and tighten nut.
2. Connect blade terminals to horn.
3. Fit front number plate.
Testing / Checking
a) Horn not working
l Tighten ground properly.
l Check fuse & continuity.
l Check relay & ensure it’s fitment in the base.
l Fix connectors properly.
l Check contacts of horn switch, adjust if required.
l Replace the horn.
b) Horn Sound Deteriorated
l Adjust setting screw till clean & sharp sound is
obtained. Fig. 22
Please refer Electrical Circuit of Audible Warning
Devices
Fig. 21
Fig. 22
Horn Securing Bolts
Setting Screw
