SAFARI

REAR AXLE

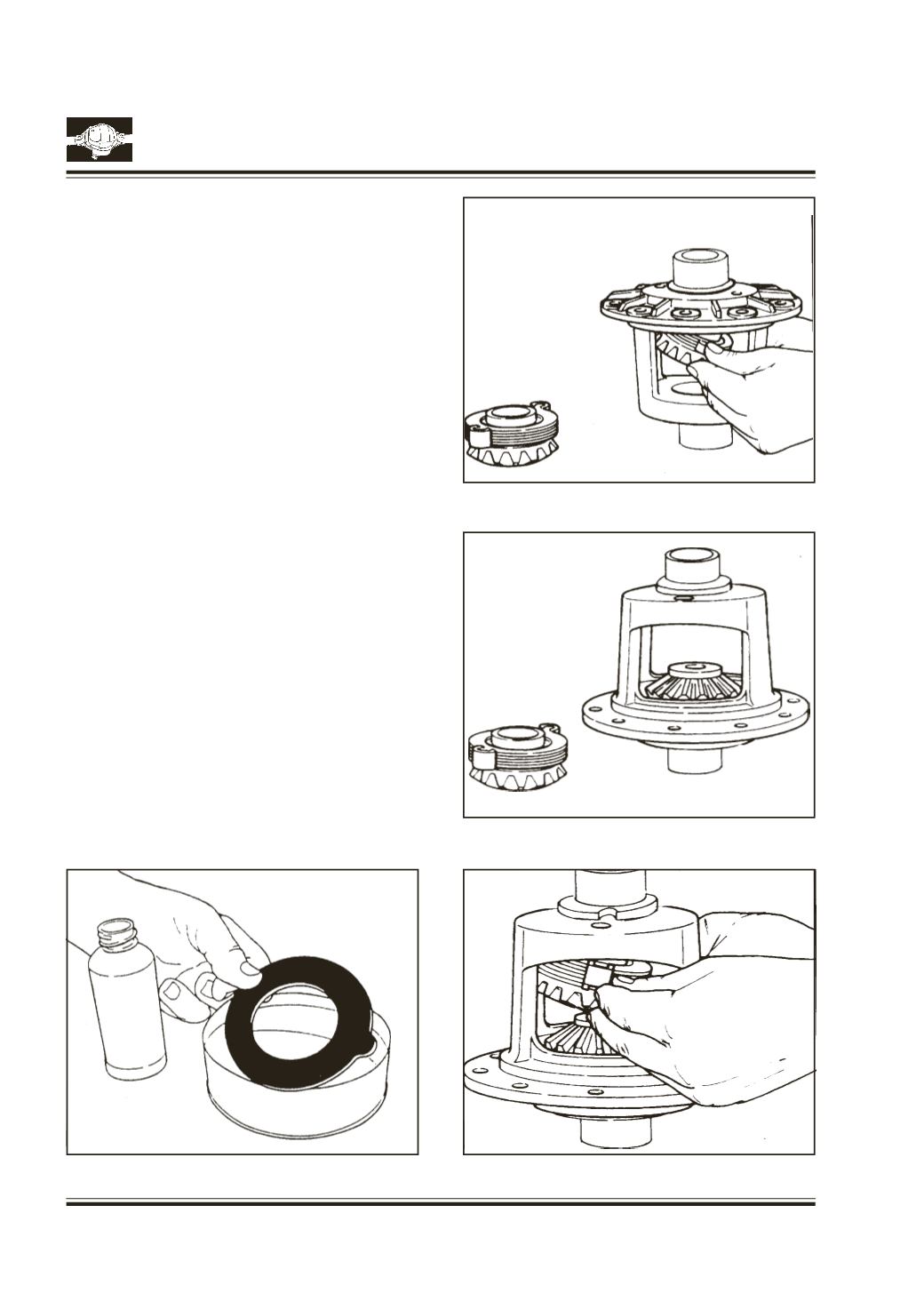

Assembly of carrier centre section

Prior to assembly, prelubricate each disc and plate

with friction modifier by pre soaking for a minimum of

20 minutes. Fig. 49

Assemble the retainer clips to the ears of the plates.

Assemble the clutch pack and side gear into the case

Fig. 50

Note:

Ensure the clutch pack stays assembled to

the side gear splines and that the retainer

cups are completely seated into the pockets

of the case.

Reposition case. Assemble the adapter of Track

Lock tool pt. no. 2699 5890 3501 plate into the side

gear.

Apply a small amount of grease into the centering

hole of the adapter plate.

Fig. 51

Assemble the other clutch pack and side gear.

Fig. 51

Fig. 50

Fig. 52

Fig. 49
