FRONT AXLE - 4
X
4
Assemble the required amount of shims onto ring
gear side hub and opposite side as determined using
the worksheet using Dolley for pressing differential
case bearing.
Pt.no.2704 5890 3325.

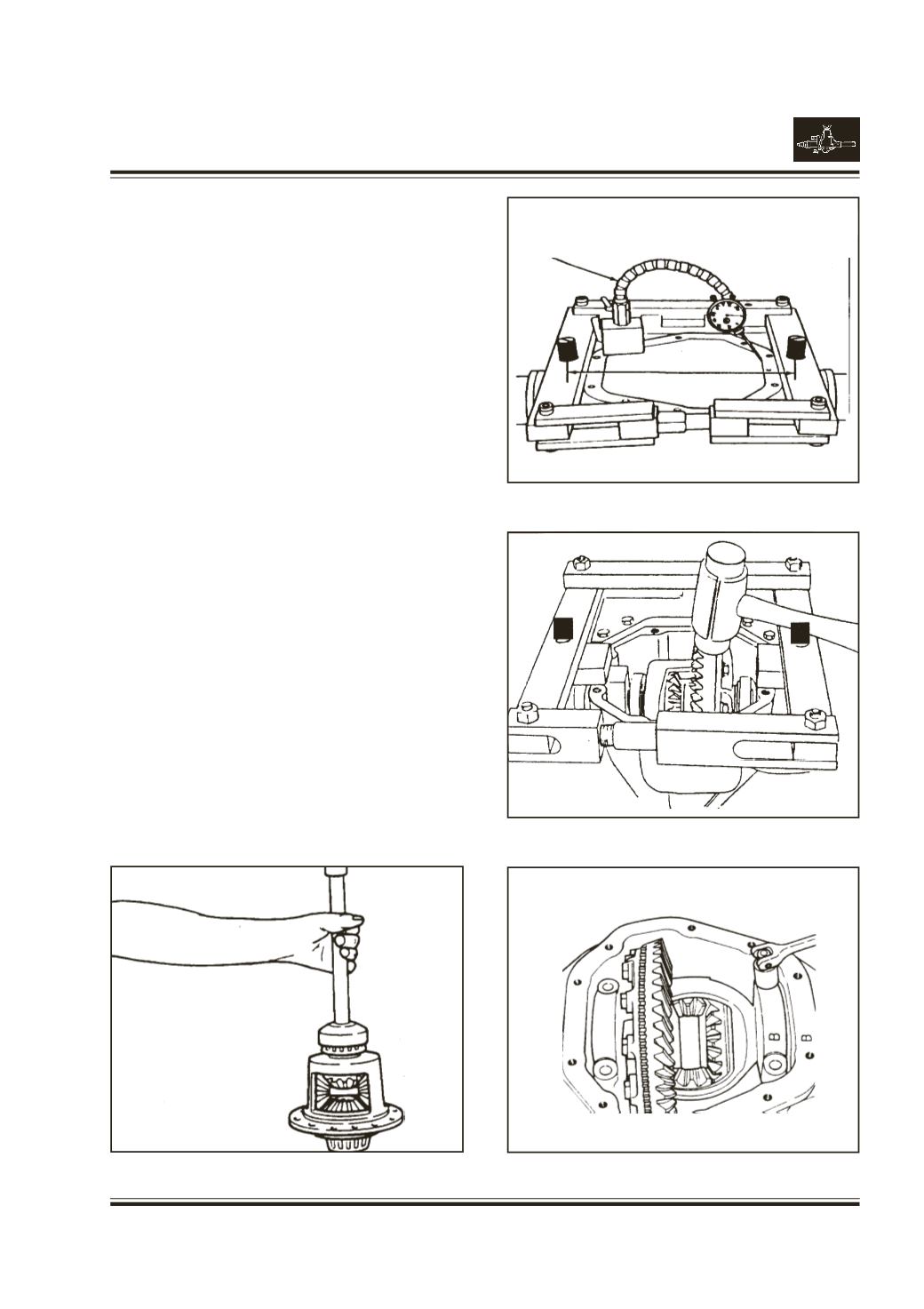

Fig. 55
Install spreader and indicator.
Do not spread carrier over 0.5 mm.
Fig. 56
Remove indicator.
Install the differential assembly into carrier.
Fig. 57
Install bearing caps.
Fig. 58
Ensure the correct fitment of the caps.
Torque bearing capscrews to specification.
Fig. 56
Fig. 57
Fig. 58
Fig. 55
DIFFERENTIAL
HOUSINGSPREADER
DIAL INDICATOR
A A
