If taper and ovality is found to exceed specified limit

or bore dimension is not as specified,

Machine bore to next over size

Criteria to choose the bore size :

Bore diameter of worn out cylinder bore.

Size of next piston available.

Recommended clearance between piston and

bore.

Required bore diameter.

NOTE :

0.050 to 0.070 mm stock should be left for honing.

CAUTION :

Maintain the parallality of cylinder bore axis and

perpendicularity to axis of crank shaft

Clean block & all passages thoroughly

Check water jackets and oil passages for leakage

at air pressure 5 bar, under water.

If block is to be stored apply grease to machined

surfaces.

CYLINDER HEAD

Mating Surface

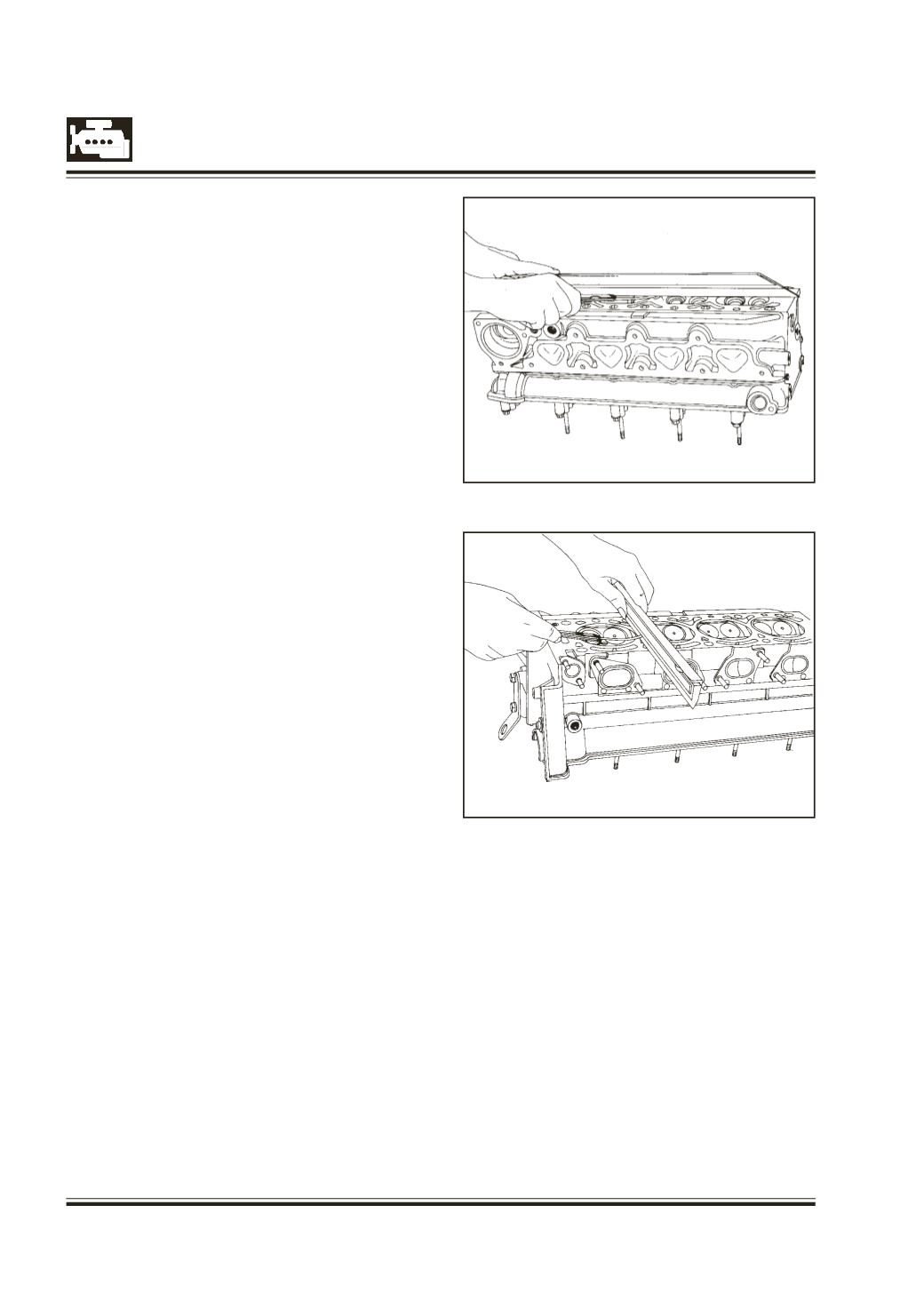

Using a straight edge and feeler gauge, check

cylinder head mating surface with crank case.

Fig. 92 & 93

If unevenness exceeds permissible limits, replace

cylinder head.

CAUTION :

CYLINDER head top and bottom surface

re-machining in service is NOT permitted.

Fig. 93

Fig. 92
