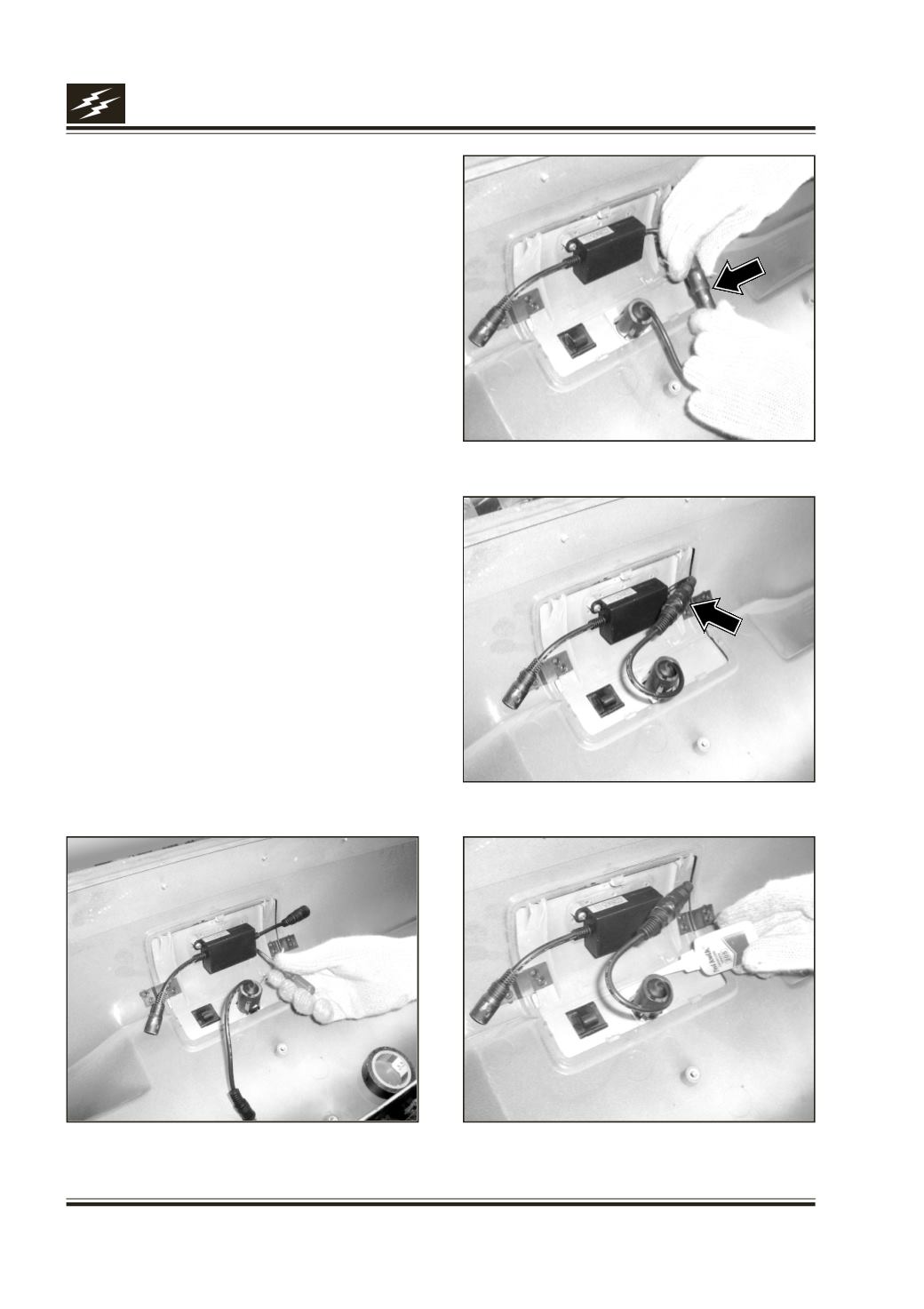

4. Fix Module Box using two screws on to the Base

provided onto the inside of Tow Cover. (Fig.5)

5. Connect the 12 pin mini DIN to integrate the

camera and the module box, properly matching

white arrows on both connectors. (Fig.6) Cover

the joint by good insulation tape, to avoid water

entry. (Fig.7)

6. Stick Metal Pad Lock to Inside of Tow Cover using

thin Layer of quick fixing adhesive. This will avoid

rotation of Camera in-place. (Fig.8)

Fig.5

Fig.6

Fig.7

Fig.8
