SAFARI

1477 / 1525

ELECTRICALS
87

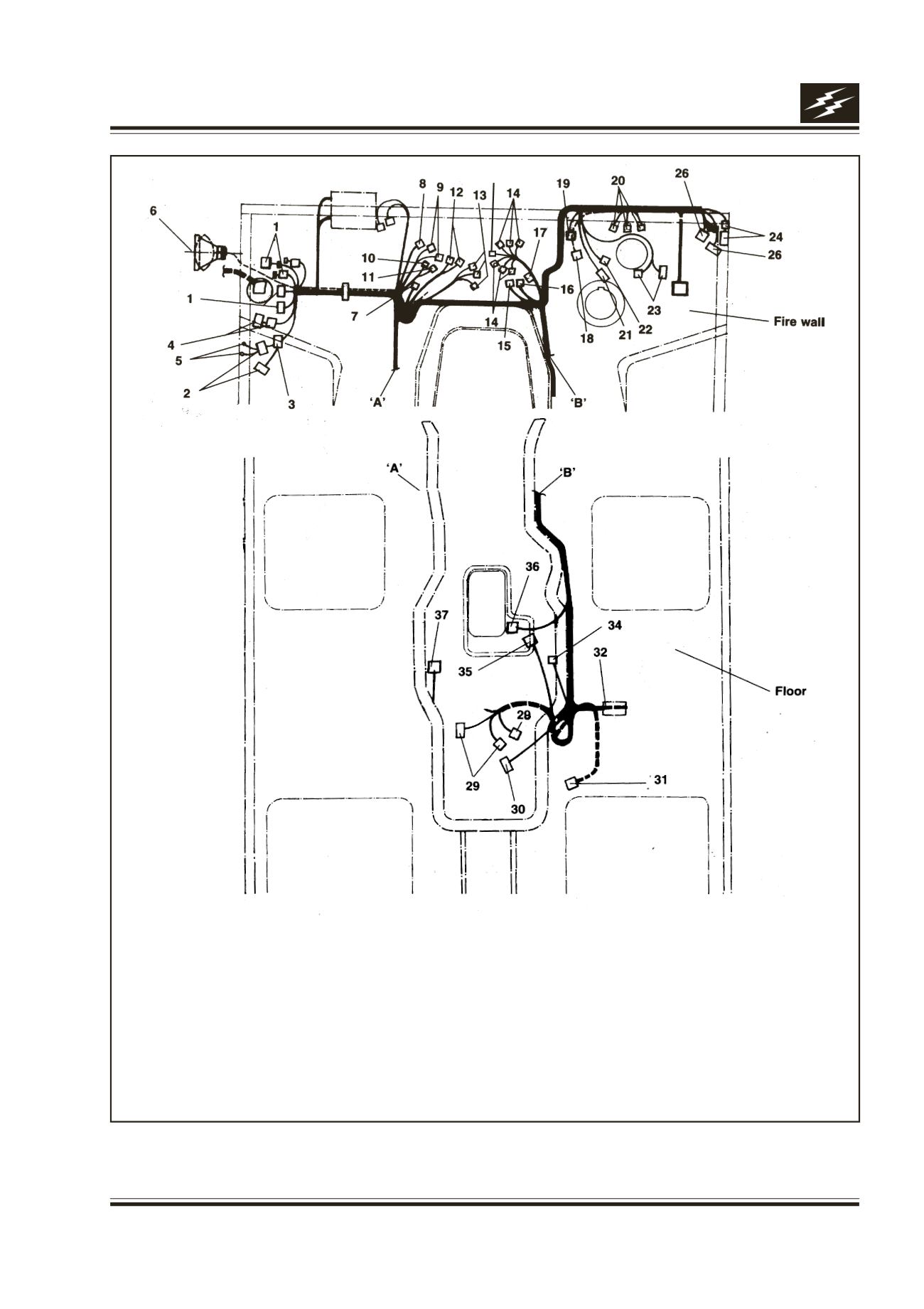

Fig. 7 - Wiring harness cabin (RHD)
1. TOWIRINGHARNESS FRONT
2. TOWIRING HARHESS TAIL-LH
3. TOWIRINGHARNESSROOF
4. TOWIRINGHARNESSFRONTDOOR
5. EARTH
6. ANTENNACABLE
7. TOANALOGCLOCK
8. TOFRONTBLOWERRESISTOR
9. TOFRONTA/CTHERMOSTAT
10. TOSERVOMOTOR
11. TOFRONTBLOWERMOTOR
12. TORADIO
13. TOCIGAR LIGHTER
14. TOFACIA SWITCHES
14A.HAZARDWARNING
15. TOFRONTA/C
16. TOFRONT BLOWER SWITCH
17. DIODEMODULE
18. TO CLUTCH SWITCH
19. TORHEOSTAT
20. TO INSTRUMENT CLUSTER
21. TO STEERING LOCK CUM IGNITION SWITCH
22. TOCOMBI SWITCHWIPER
23. TO COMBI SWITCH LIGHTNING
24. TOWIRING HARHESS TAIL - RH
25. EARTH
26. TOWIRINGHARNESS FRONTDOOR - RH
28. TOCENTRAL LOCKINGCONTROLLER
29. TOTRANSFERCASE
30. TOPARKING BRAKE SWITCH
31. TOREAR SOLENOIDVALVE
32. TOTRANSFERCASECONTROLLER
34. TO SEAT BELT LOCK SWITCH FRONT - RH
35. TO REVERSE LIGHT SWITCH
36. TOTRANSFER CASE SELECTIONSWITCH (4X4)
37. TO SEAT BELT LOCK SWITCH FRONT - LH
14A
‘A’
‘A’
