ENGINE
156
0 1 ASSY.BRACKET (AIR FILTER
MOUNTING)
0 2 RUBBERSTRAP
0 3 HEXSCREW
0 4 WASHER
0 5 GROMMET
0 6 TUBE
0 7 ASSY.AIR FILTER DICR
07-a ASSY.FILTERELEMENT
08'
SEALINGWASHER
09'
SERVICE INDICATOR
10 ASSYAIR INTAKETUBE
11 SPRINGWASHER
12 HEX.SCREW
13 HOSE (FROMFENDERTO
FILTER)
14 HOSE (AIR FILTERTOHFM
SENSOR)
15 HOSECLAMP
16 HOSECLAMP
17 ADAPTOR (HFMSENSOR)
18 SEALINGRING
19 HFMSENSOR
20 HEX.SCREW
21 SPRINGWASHER
22 HEXNUT
23 HOSE
24 HOSECLAMP
25 HOSE (TCTO IC PIPE)
26 HOSECLAMP
27 PIPE (TC TO IC)
28 HOSE (TC PIPE TO IC)
29 HOSECLAMP
30 INTERCOOLER
31 WASHER
32 HEXSCREW
33 HOSE (ICTOTOP PIPE)
34 PIPE (ICTO INTAKE ELBOW)
35 HOSE (TOP PIPETO INTAKE
ELBOW)
36 HOSECLAMP
37 WASHER
38 MANIFOLDHEATER
39 AIR INTAKE ELBOW
40 BRACKET (HFMSENSOR
SUPPORT)
41 HEXFLANGE SCREW
42 T-MAP SENSOR

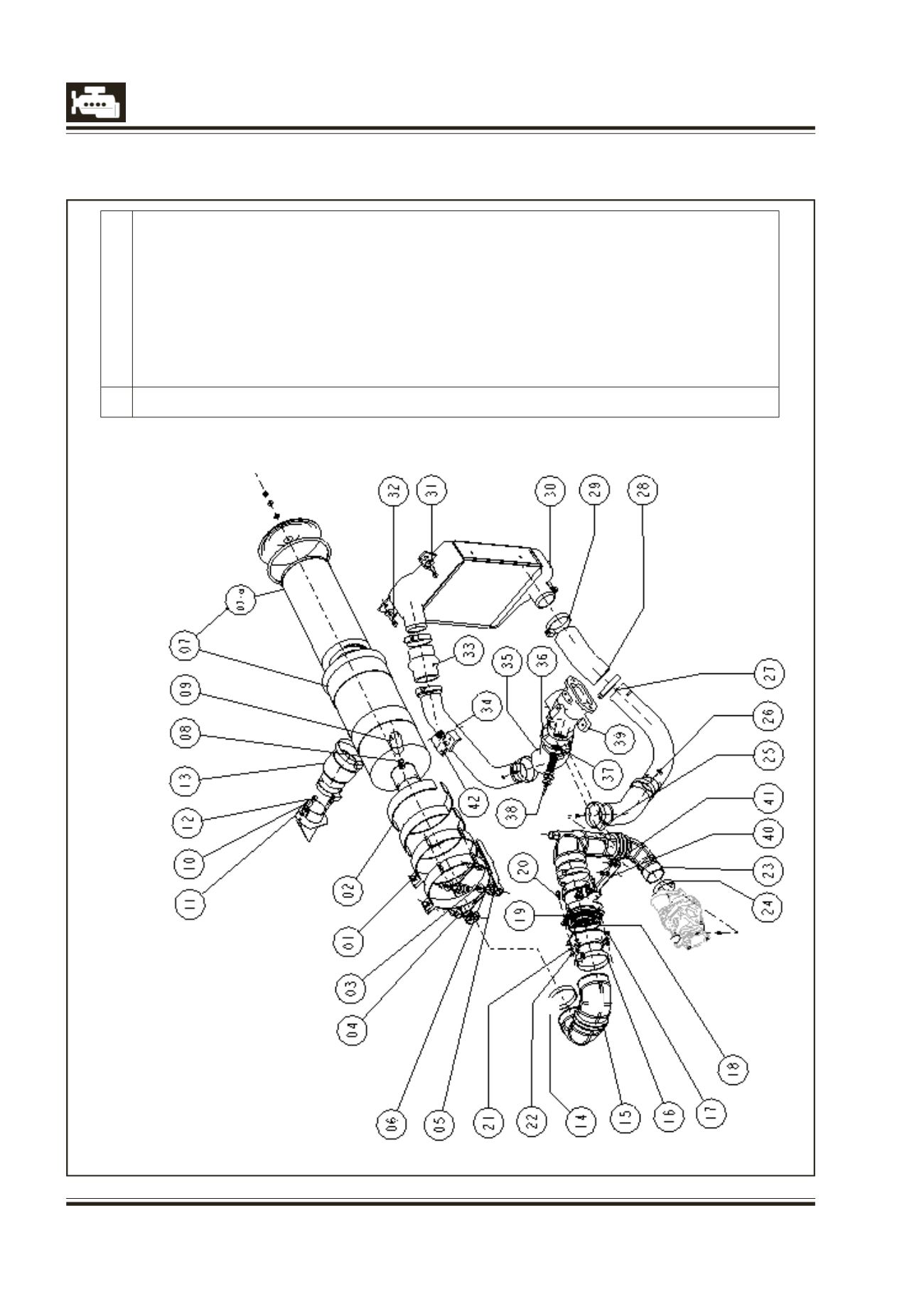

AIR INTAKESYSTEM
TATA SAFARI DICOR ENGINE BS-III / EUROIII
