ENGINE
154
0 1 CAMSHAFTNORMAL
0 2 CYL.PIN (CAMSHAFT)
0 3 CAMSHAFTGEAR (REDUCED
MODULE)
0 4 DRIVEGEAR (REDUCED
MODULE)
0 5 HEXFL SCREW
0 7 BUTTINGRING
0 8 PIN
0 9 CAMSHAFTBUSH
10 THRUSTWASHER
11 PHASESENSOR
13 VALVE PUSHROD INLET &
EXHAUST
14 ASSYROCKERARMSHAFT
15 ASSY ROCKERARMLEFT
WITHBUSH
15-a BUSH
16 BALL ENDTAPPETADJUSTER
17 HEX NUT (BALL PIN -ROCKER
ARM)
18 ASSYROCKERARMRIGHT
WITHBUSH
19 ROCKERARMSUPPORT
20 ROCKERARMSUPPORT
21 ROCKERARMSUPPORT
22 GRUBSCREW
23 SPRINGLONG
24 SPRINGSHORT
25 SPRINGCLIP
26 ASSYROCKERARMSHAFT
27 CONNECTINGNIPPLEOUTSIDE
28 CONNECTING NIPPLE INSIDE
29 SPRING CONNECTINGNIPPLE
30 BOLT (ROCKER ARM)
31 HEXBOLT
TIMER ARRANGEMENT
SR.
NO.
Description

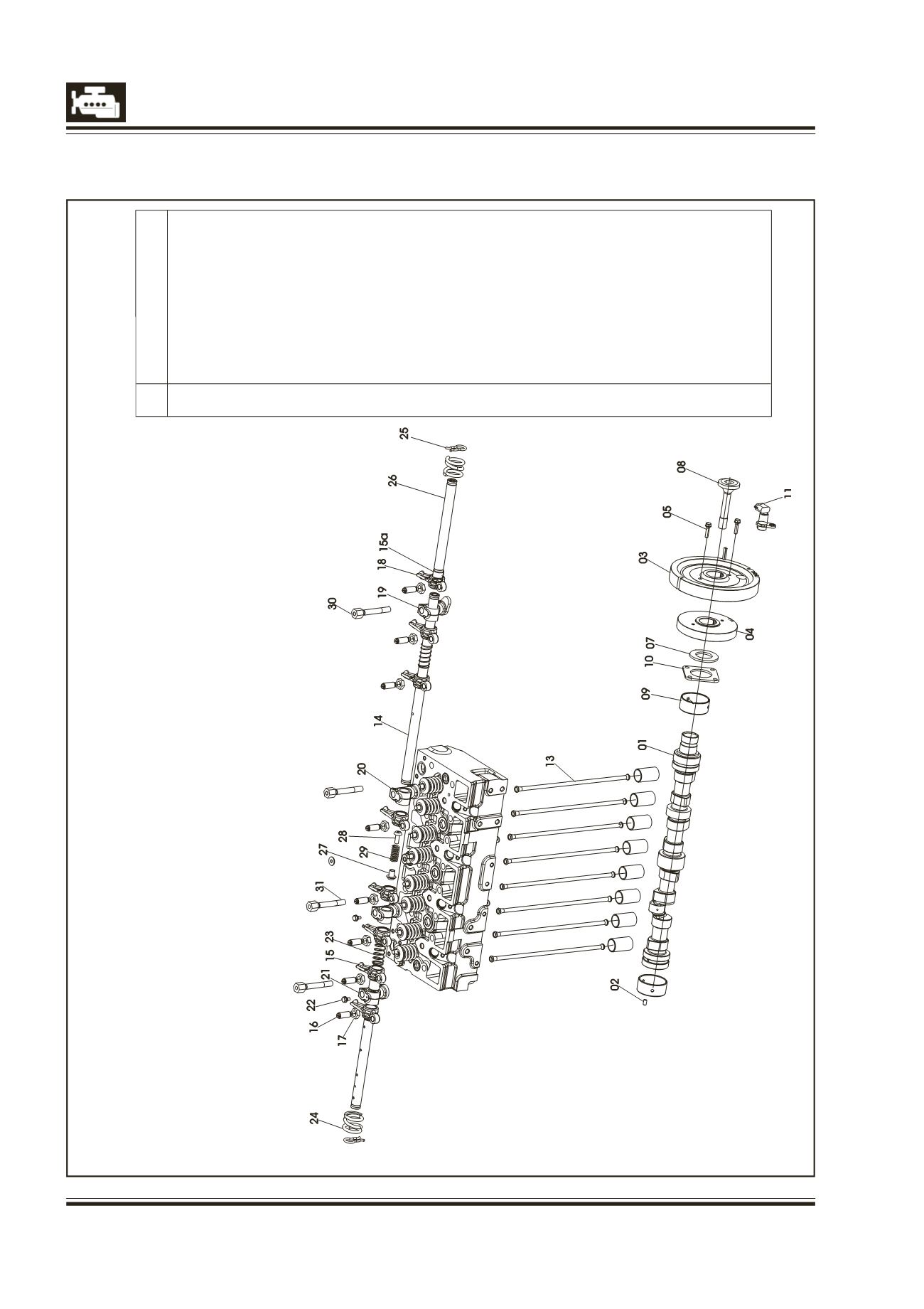

EXPLODED VIEWS
