1319 / 1525
ENGINE
152
1 ASSY.CRANK CASEW/O
CLUTCH HSG.
2 CYLINDER LINER
3 CLAMPING SLEEVE CYL BLOCK
4 SLEEVE CYL BLOCK
5 CYL PIN
6 PLUG (OIL GALLARY)
7 SEALINGWASHER
8 CYL PIN CYL HEAD TO CYL BLOCK
9 SEALINGPLUG
10 SEALINGWASHER
11 CYL PIN
12 MAIN BEARING CAP BOLT
13 SEALING RING HALF
14 CLUTCH HOUSING
15 HEX SCREW
16 HEX SCREW
17 SPRINGWASHER
18 CLUTCH HOUSING (LOWER PART)
19 ASSY.OILSUMPW/ODRAINPLUG
20 ASSYCOMBISCREW
21 ASSY.MAGNETIC DRAIN PLUG
22 SEALINGWASHER
23 ASSY FLANGE [OIL SUMP ]
24 RETAINING FLANGE ON OIL SUMP
25 GASKET
26 HEX SCREW
27 SPRINGWASHER
28 HEX SCREW
29 SPRINGWASHER
30 DOUBLE SOCKET
31 SEALINGWASHER
32 COUPLING NUT
33 ASSY.GASKETOILSUMP
34 ASSYTUBEDIPSTICKW/ONUT&
FERRULE
35 ASSY.OILDIPSTICK
36 ASSY.TGH WITH BOTTOM COVER
37 HEX SCREW
38 CYL PIN
39 TIMING GEAR HOUSING FRONT
COVER
40 GASKET (TGH COVER)
41 SEAL CRANKSHAFT FRONT
42 ASSY. TGH NOISE SHIELD (NVH)
43 HEX BOLT
44 HEX SCREW
45 SPRINGWASHER
46 GASKETTIMINGGEARHOUSING
47 ASSY PUSH ROD CHAMBER COVER
48 GASKET PRC COVER
49 SEALINGWASHER
50 HEX BOLT
51 CHEESE HD SCREW
52 COVER
53 HEX BOLT

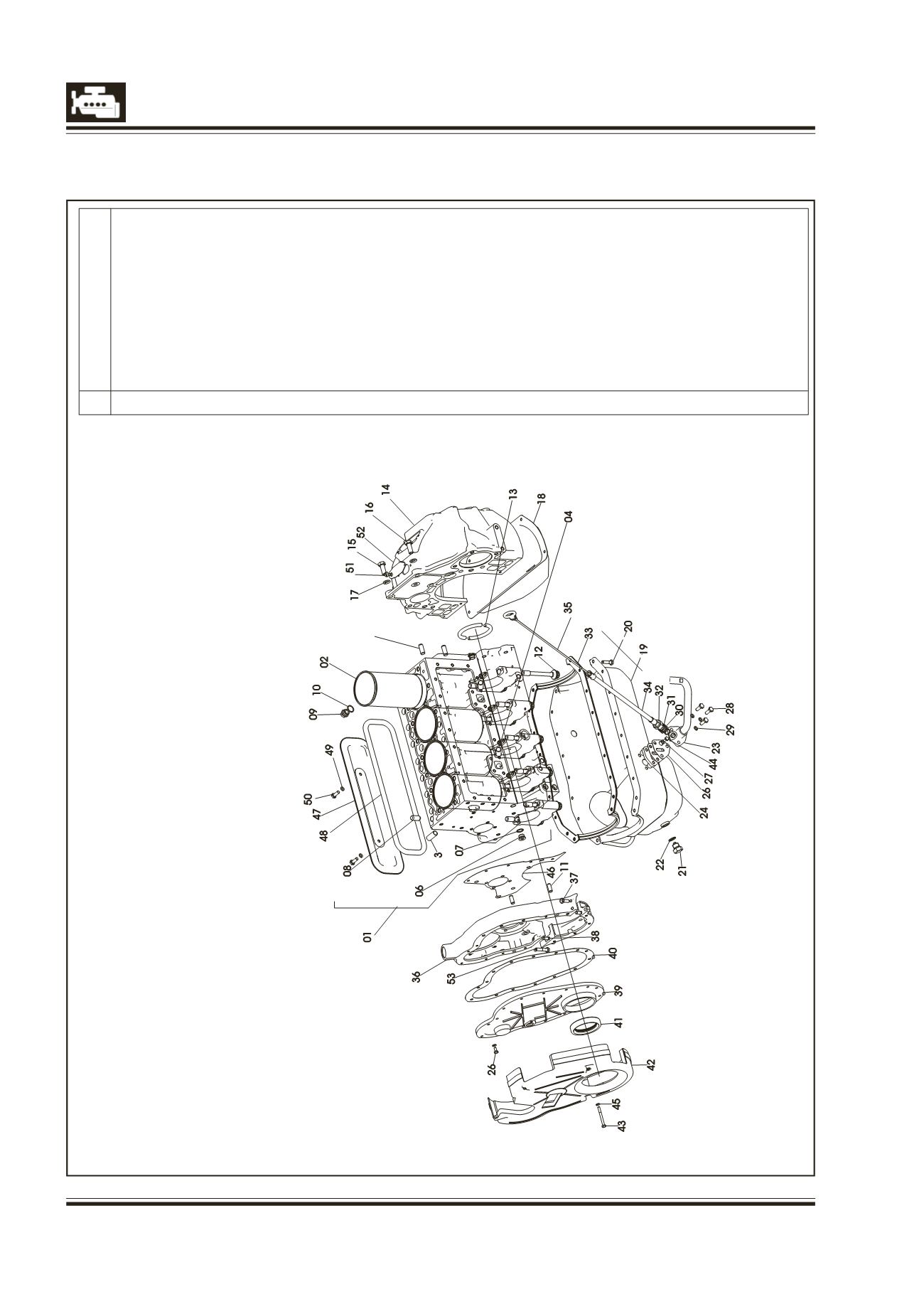

CYLINDER BLOCK
SR.
NO.
Description
EXPLODED VIEWS
5
25
