SAFARI

ENGINE

121

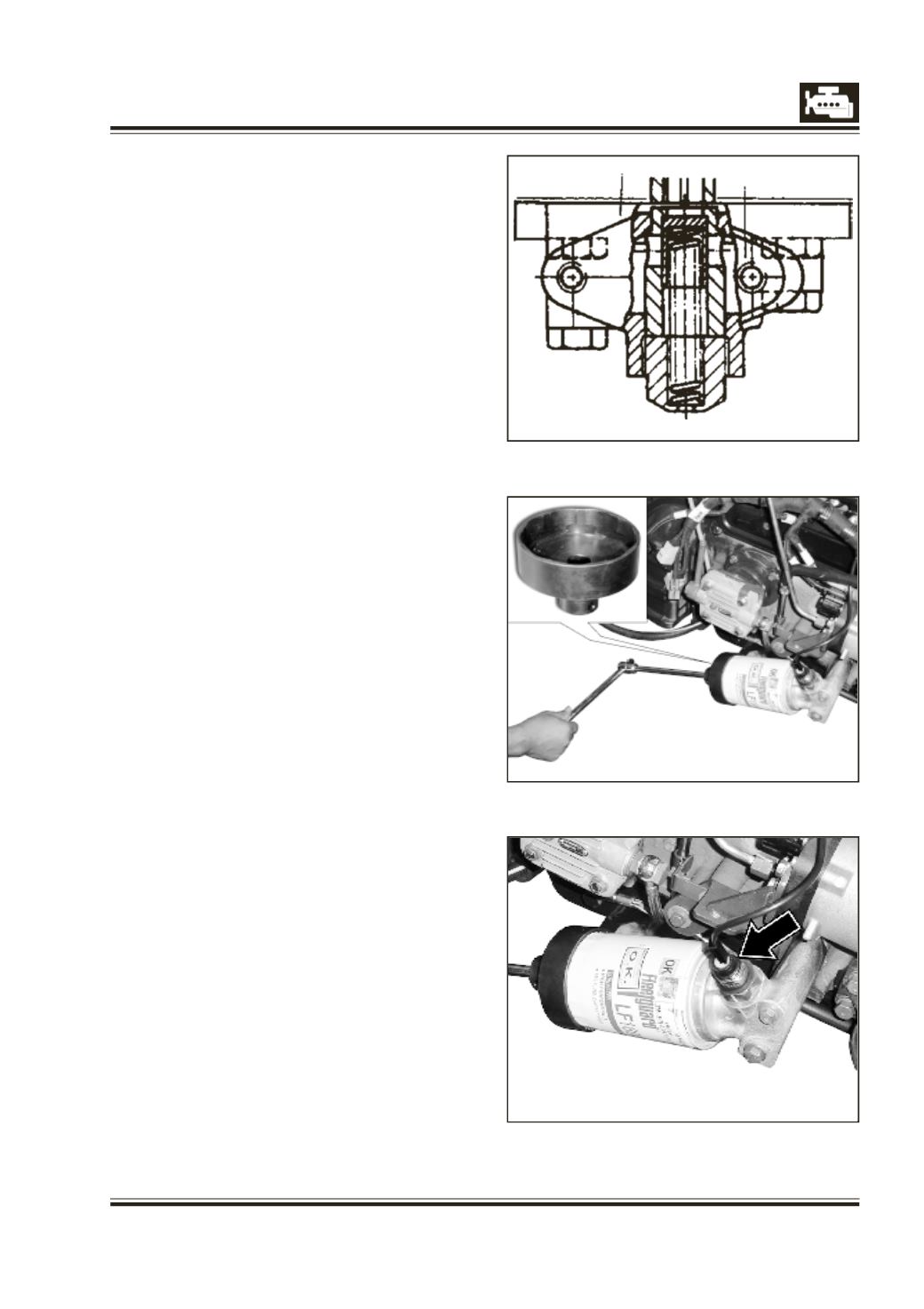

Fig. 13 Pressure Relief Valve

Fig. 14

Oil pressure switch

8 Mount housing cover to housing and tighten

mounting screws to specified torque.

9 Install pressure relief valve body, plunger and

spring into oil pump housing cover Fig. 13 and

tighten the cap to specified torque.

10 Mount strainer to housing cover and tighten

mounting screws to specified torque

Oil Filter

Spin on type filter with dust holding capacity -

20 gms. Oil filter to be hand tightened only. The oil

filter to be removed and replaced after specified

kms.

Oil Filter removal & Fitment procedure:

REMOVAL:

1. Remove the front engine guard located below the

vehicle

2. Drain the oil from the engine

3. Unscrew the Oil filter using the spanner (Part

No. 2699 5890 18 02 )

4. Use tool 2699 580 1804 to avoid oil spill.

FITMENT:

1. Take a new oil filter and fill oil in it so that

cartridge gets soaked and also When the

engine is started oil can immediately flow to

the engine bearings.The time required to attain

correct pressure is reduced.

2. Place the seal on the adapter groove and apply

oil to it for lubrication during Tightening.

3. Insert the filter in the adapter and screw the

filter with the spanner.

4. Fill the engine oil and fix the guard.
