ELECTRICAL
149
ELECTRICAL

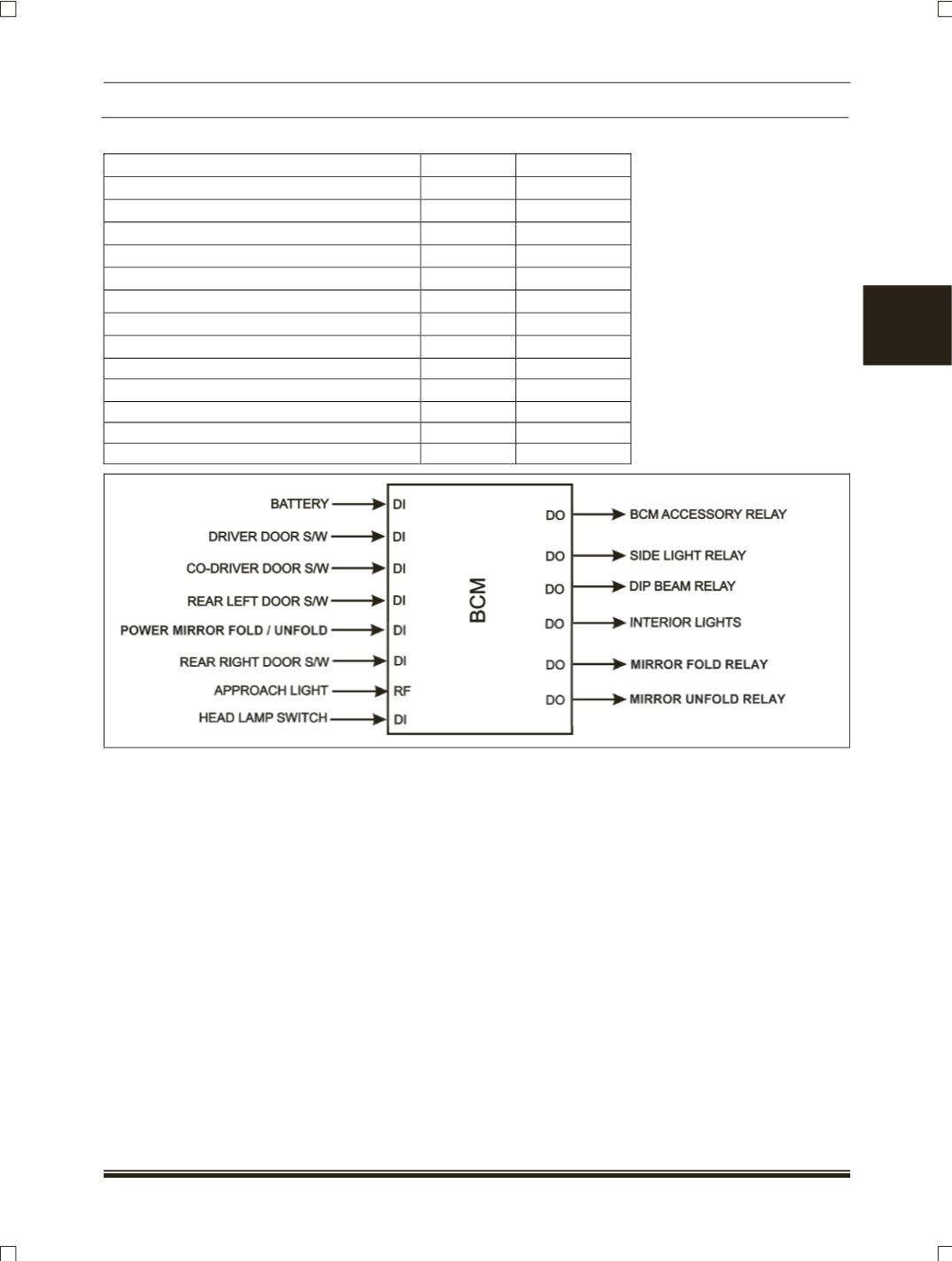

4. CONVENIENCE:
SIGNAL
LEVEL
TYPE
Battery
High
Input
Driver Door Switch
Low
Input
Co-Driver Door Switch
Low
Input
Rear Left Door Switch
Low
Input
Rear Right Door Switch
Low
Input
Approach light
RF
Input
Head Lamp Switch
High
Input
Power mirror fold / unfold switch
High
Input
Parking/Side Light Switch
High
Output
Dip/Low Beam Relay
High
Output
Interior lights
PWM
Output
Mirror fold relay
PWM
Output
Mirror unfold relay
PWM
Output
A. DELAYED ACCESSOREY POWER OFF:
The BCM Accessory Relay output is connected to the Window winding controller and the BCM
Accessory delay Relay.
Whenever the vehicle power state is IGNITION or RUN the BCM Accessory Relay output should be
high.
When the vehicle engine is stopped by the user, the accessories should remain powered for a time
period to allow powered functions to be performed without turning the key to the ignition position again. (E.g.
close electric windows and sunroof).
When the vehicle power state changes from IGNITION to OFF or KEY IN SENSOR, the BCM
Accessory Relay output will remain high for 10 minutes.
NOTE:
If driver door is opened then Acc delay will get immediately cancelled.
Accessory delayed functionality should be cancelled after user successfully locked the vehicle by
remote and provided two flashers feedback.
