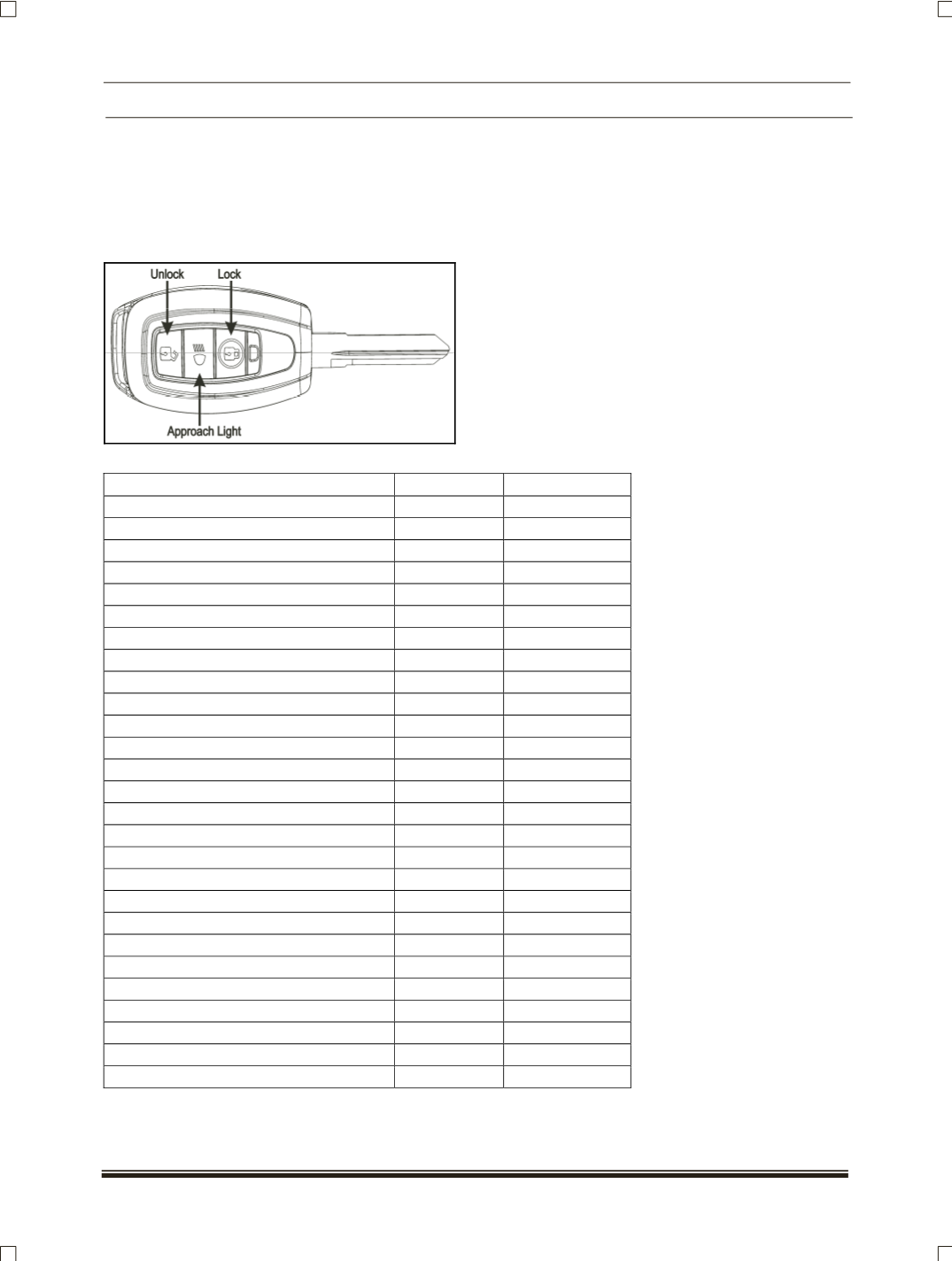

B.REMOTE KEYLESS ENTRY (
RKE
):
Remote key is having 3 buttons:
Unlock
Approach light
Lock
INPUT/OUTPUT DIAGRAM:
SIGNAL
LEVEL
TYPE
Key In S/W
High
Input
Ignition S/W
High
Input
Crank S/W
High
Input
Co-Driver Door S/W
Low
Input
Driver Door S/W
Low
Input
Rear Right Door S/W
Low
Input
Rear Left Door S/W
Low
Input
Driver Door Lock S/W
Low
Input
Driver Door Unlock S/W
Low
Input
Co-Driver Door Lock S/W
Low
Input
Co-Driver Door Unlock S/W
Low
Input
Remote Lock Button
RF
Input
Remote Unlock Button
RF
Input
Tailgate S/W
Low
Input
Inertia S/W
High
Input
Bonnet S/W
Low
Input
Head Lamp Switch
High
Input
All Door Lock Relay
Low
Output
Driver Door Unlock Relay
Low
Output
Other Doors Unlock Relay
Low
Output
Left Indicator Lamps
PWM
Output
Right Indicator Lamps
PWM
Output
Left Indicator Tell Tale
High
Output
Right Indicator Tell Tale
High
Output
Horn
Low
Output
Parking/Side Light Switch
High
Output
Dip/Low Beam Relay
High
Output
