STEERING
39
STEERING

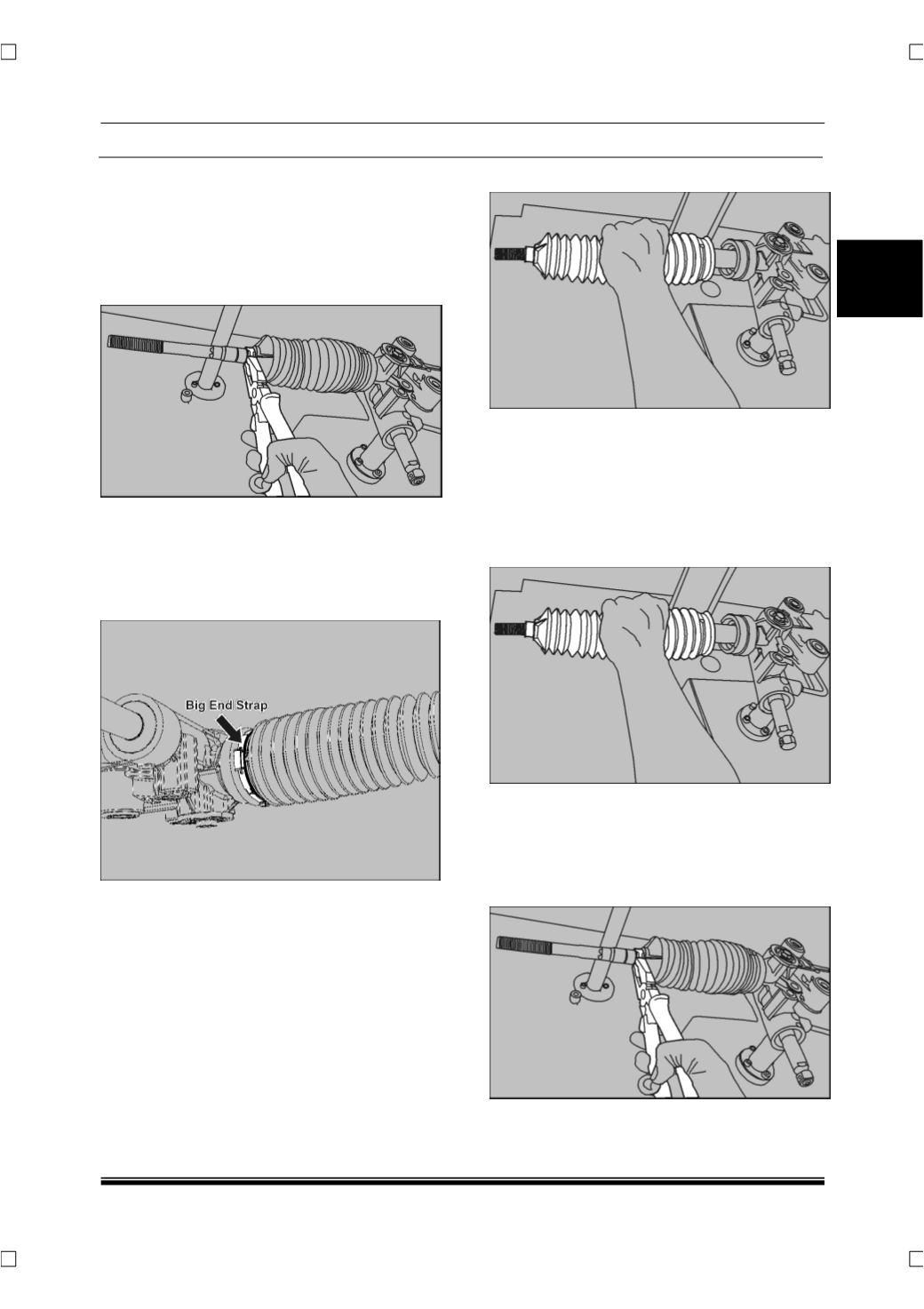

7.3.3.2 BELLOW KIT
DISMANTLING
1. Remove the OBJ assembly.
(For procedure refer
OBJ dismantling procedure.)
2. Remove the bellow small end strap using suita-
ble tool.
NOTE
Discard the strap after removal and use new one at
the time assembly.
3. Remove the bellow big end strap using suitable
tool.
NOTE
Discard the strap after removal and use new one at
the time assembly.
4. Pull out the bellow.
INSPECTION
•
Check the condition of bellow for any cut or
damage.
•
Check the condition of bellow support.
ASSEMBLY
1. Insert the bellow on IBJ.
NOTE
Ensure that the bellow small end and big end are
properly seated at there respective seating area.
(Small end at bellow support and big end housing)
2. Assemble the small end metal strap.
