STEERING
34

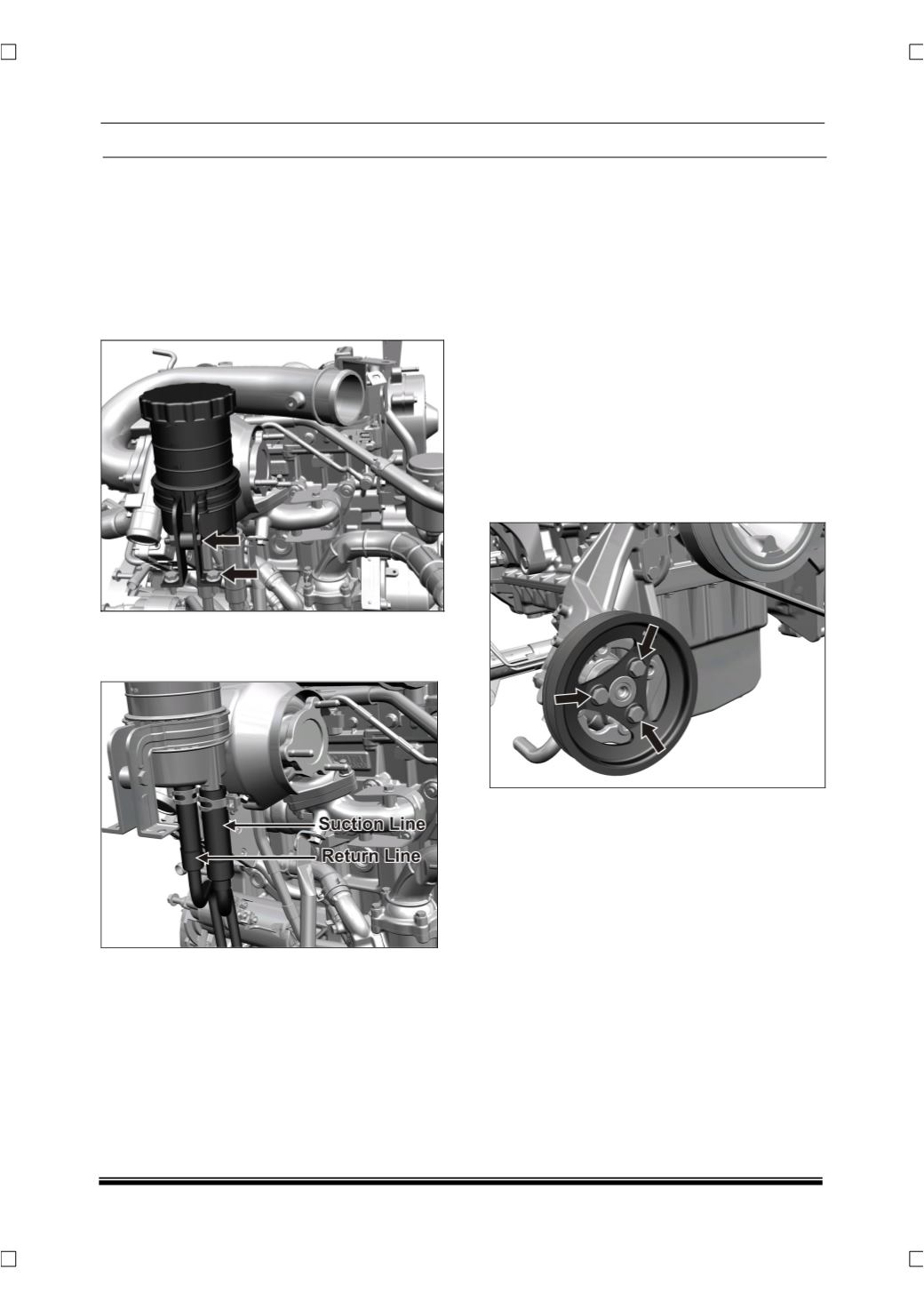

A. STEERING RESERVOIR
REMOVAL
1. Drain the power steering oil.
(For procedure refer
oil replacement procedure in this section.)
2. Loosen and remove the mounting bolt and take
out the sleeve/spacer, then remove mounting
bolts of the bracket holding the reservoir with
the BIW.
3. Remove the spring band clamp and disconnect
the suction line and the return line from the res-
ervoir end.
4. Take out the reservoir assembly.
NOTE
Plug holes of both reservoir and lines to avoid en-
trance of dirt and contamination.
FITMENT
For fitment follow reverse procedure of removal.
B. POWER STEERING PUMP
REMOVAL
1. Drain the power steering oil.
(For procedure refer
power steering oil replacement in this section.)
2. Remove power steering pump belt.
(For proce-
dure refer Alternator Belt removal in Engine
section.)
3. Disconnect the hoses from the power steering
pump.
4. Lock the power steering pump pulley, using a
screw driver and loosen the pulley mounting
bolts.
5. Remove pulley mounting bolts (1) along with
spring washer (3 Nos.) and remove the pulley
(2).
