STEERING

32

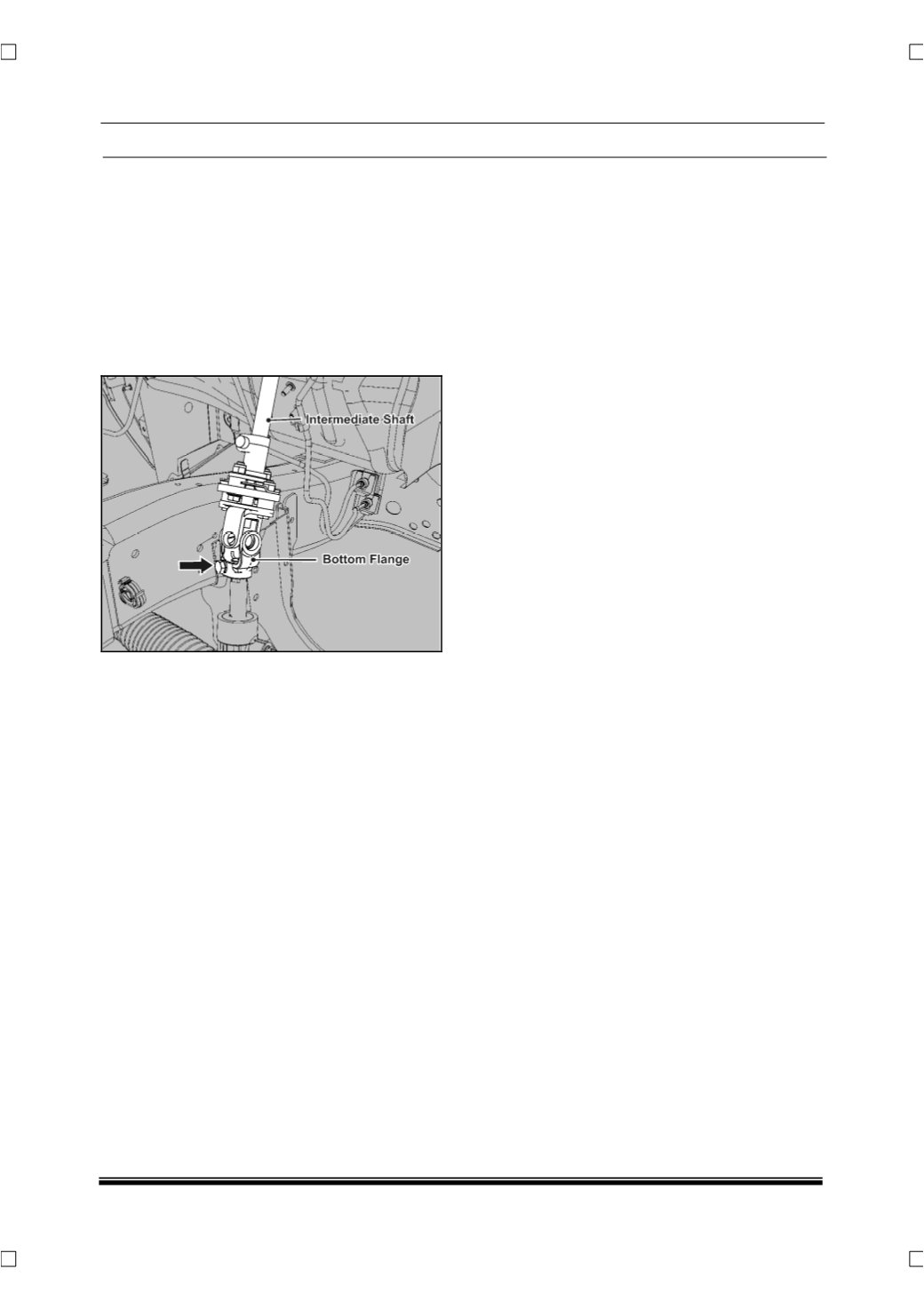

D. BOTTOM FLANGE COUPLING (BOTTOM UJ)

REMOVAL

1. Remove the stone guard. (

For procedure refer

stone guard removal procedure in Body section

)

2. Disconnect the bottom flange from the interme-

diate shaft by removing the mounting bolt.

3. Disconnect the bottom flange from the rack and

pinion assembly by removing the mounting bolt

and take out the bottom flange.

FITMENT

For fitment follow reverse procedure of removal.
