ANTI LOCK BRAKING SYSTEM (ABS)
12

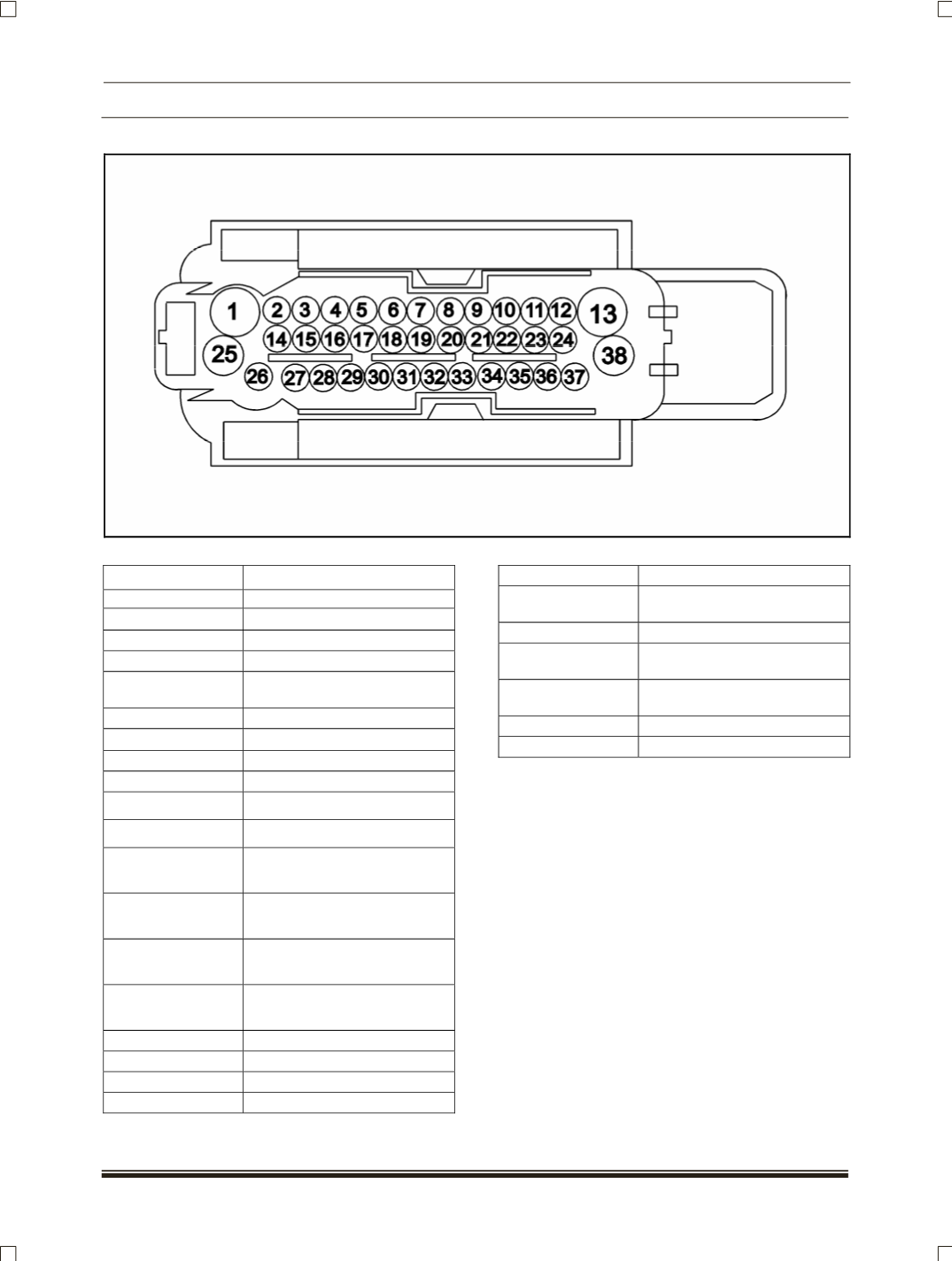

PIN OUT ABS ECU CONNECTOR
(K2)
ECU PIN DETAILS
PIN NO
DESCRIPTION
1
Battery Positive
2 to 3
Not Used
4
ABS Warning Lamp
5
Not Used
6
Front Right Wheel Speed
Sensor Signal
7 to12
Not Used
13
Ground
14
Not Used
15
Not Used
16
EBD Warning Lamp
17
K-Line
18
Front Right Wheel Speed
Sensor Power
19
Rear Right Wheel Speed
Sensor Power
20
Rear Left Wheel Speed
Sensor Signal
21
Front Left Wheel Speed
Sensor Power
22 to 24
Not Used
25
Battery Positive
26
Not Used
27 to 29
Not Used
30
Brake Light Switch
31
Rear Right Wheel Speed
Sensor Signal
32
Ignition
33
Rear Left Wheel Speed
Sensor Power
34
Front Left Wheel Speed
Sensor Signal
35 to 37
Not Used
38
Ground
