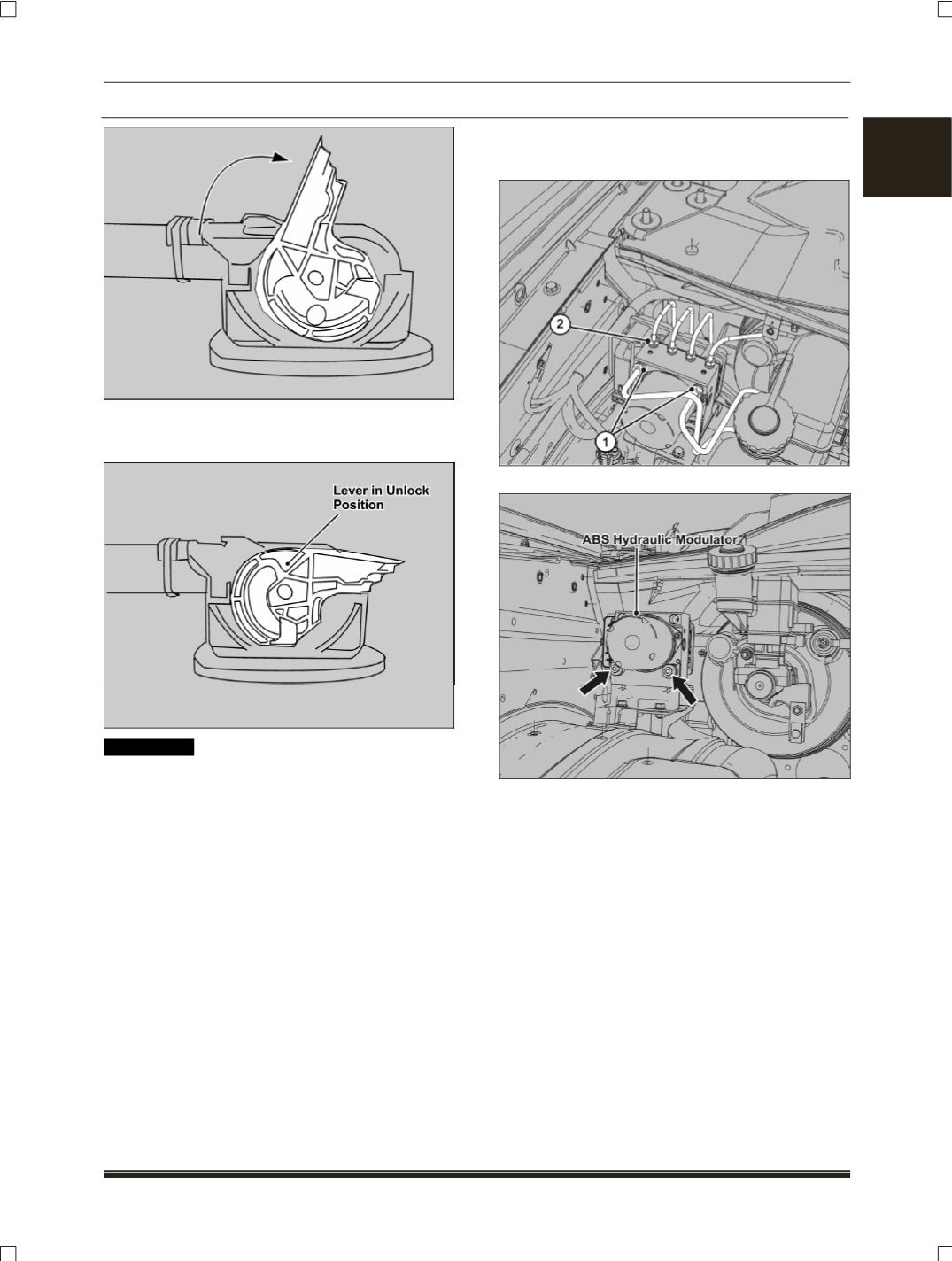

(ii) Lock the lever to it’s unlocking position by
pressing the lever till the
Click
sound is heard
and remove the connector from ABS ECU.
!! WARNING
Never apply a 12V power source to any terminal of
the ECU connector when it’s disconnected.
3. Identify the brake pipes going into and out of the
Hydraulic Unit
(HCU)
with tags so that
reinstallation of the brake lines becomes easy.
NOTE
Proper care should be taken before disconnecting
the brake pipes from HCU and the HCU must be
thoroughly cleaned on the outside to prevent any dirt
particles from falling into the ports of HCU or
entering the brake pipes.
4. Remove the brake pipes from MC
(1)
and feed
pipes to calipers
(2)
from the HCU and plug the
ports with suitable grommet / Cap.
5. Loosen the 2 holding nuts of the ABS ECU.
