FRONT AXLE
(4X4)

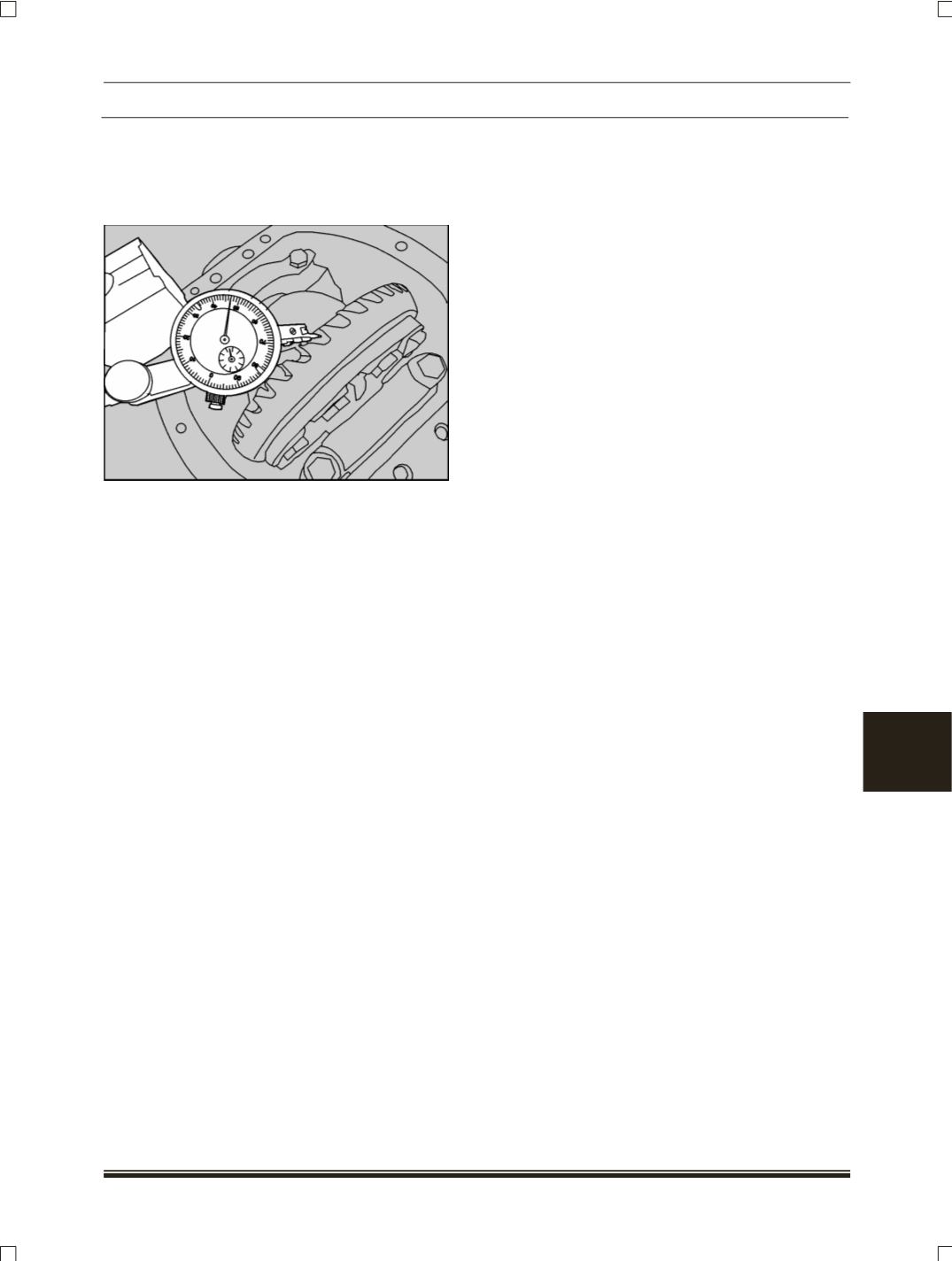

31.Check ring gear and pinion backlash at three
equally spaced points with dial indicator. Back-
lash tolerance is 0.13 to 0.20 mm. and should
not vary more than 0.08 mm between the three
points checked.
32.High backlash is corrected by moving ring gear
closer to pinion.
33.Low backlash is corrected by moving ring gear
away from pinion.
34.These corrections are made by switching shims
from one side of differential case to other.
35.Ifbacklash is within the limit 0.12 – 0.20mm,
check ring gear and pinion tooth contact pattern.
