TRANSFER CASE
32

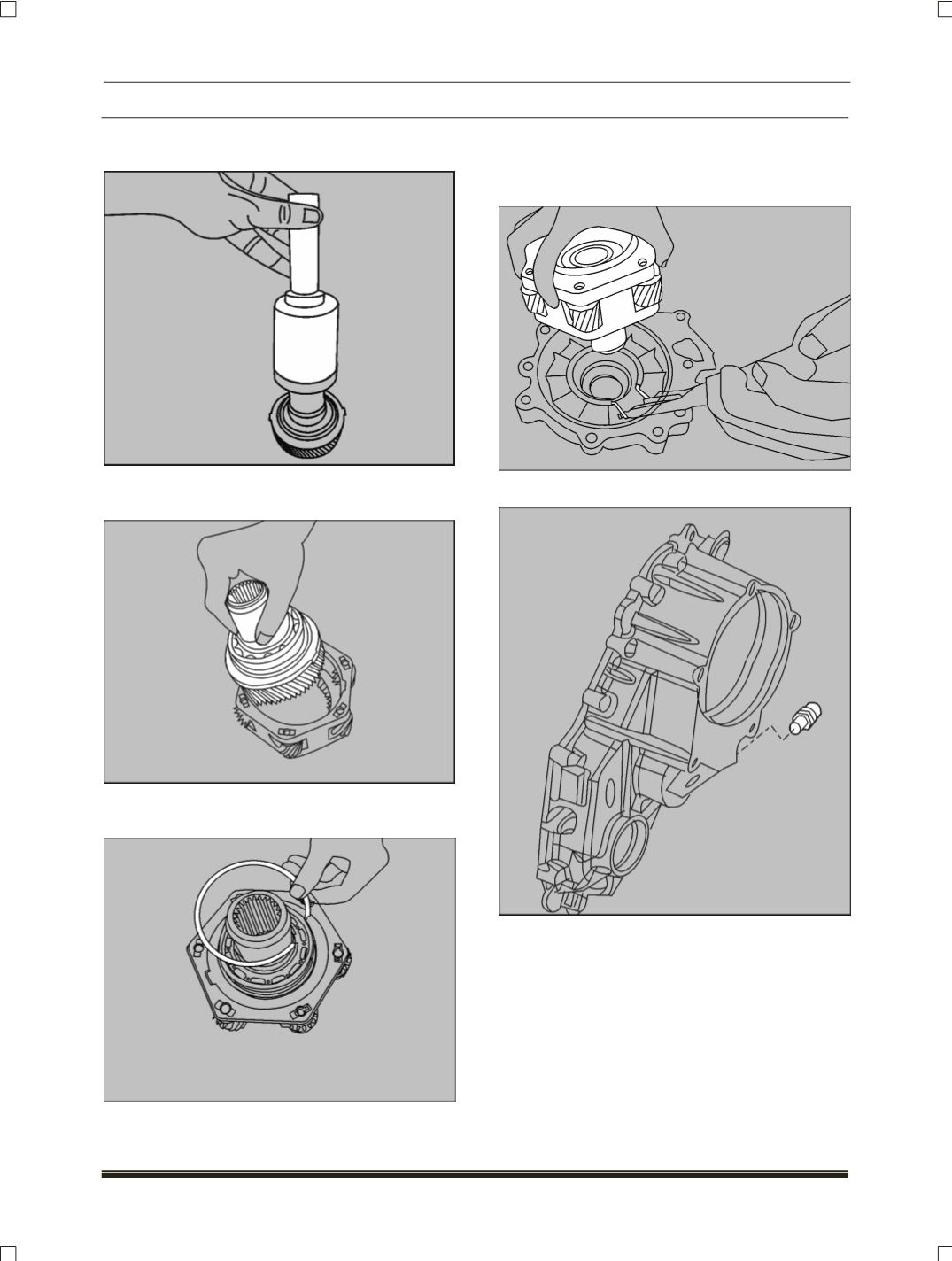

4. Press fit the annular bearing to the input shaft
by using drift (part no 2704 5890 2818 )
5. Assemble the input shaft assembly along with
the bearing with carrier assembly.
6. Fix the snap ring on carrier assembly by using
a screw driver.
7. Expand the long end of the snap ring by using
snap ring plier (part no 2870 5890 26 03) and
assemble the input shaft assembly to the
adapter case
8. Install the breather on to the case.
