ELECTRICAL
225
ELECTRICAL

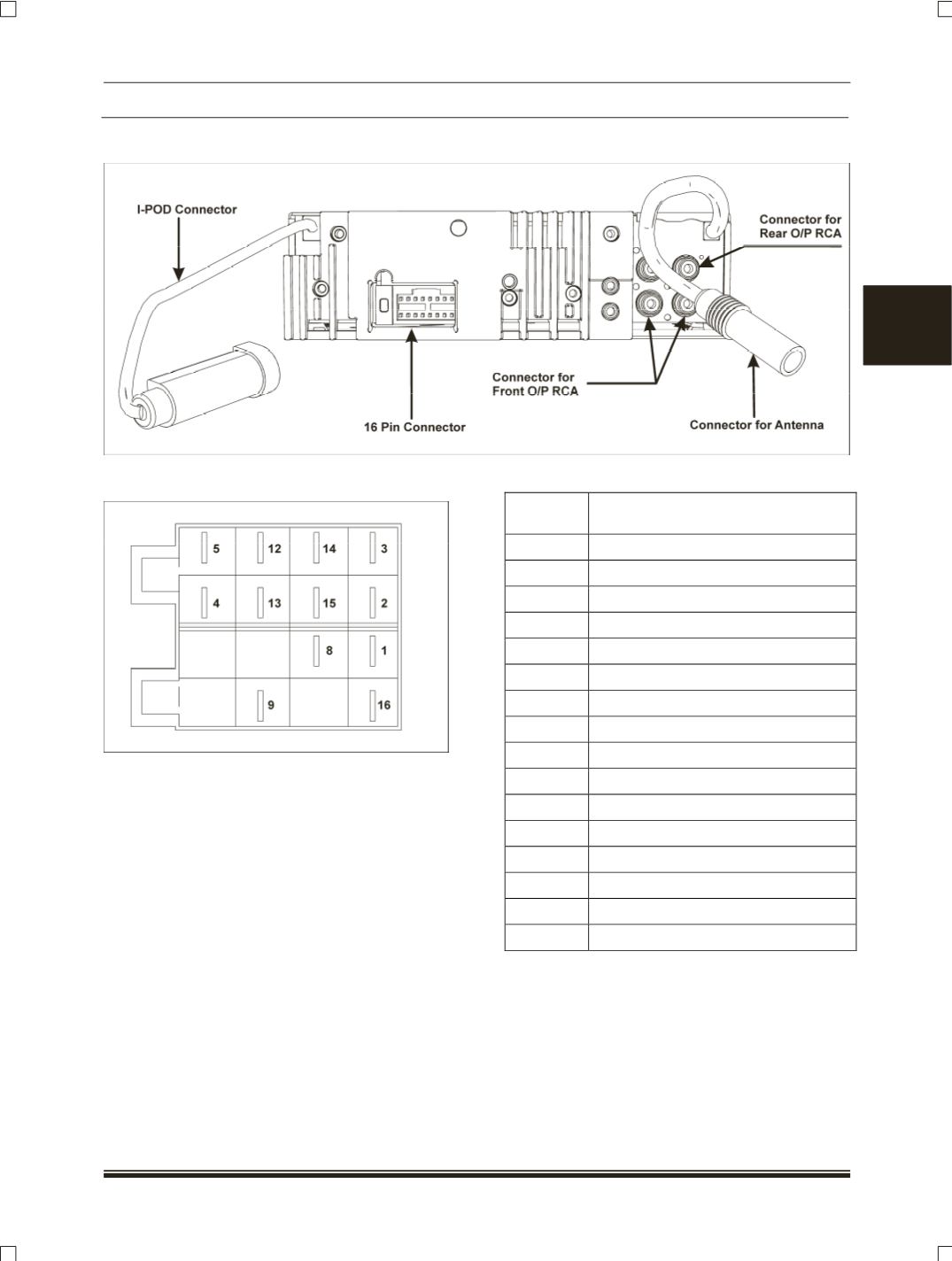

CONNECTOR DETAILS:
16 PIN CONNECTOR DETAILS:
PINOUT DETAILS:
PIN NO
DESCRIPTION
1
Battery ( +12V )
2
Speaker Rear Left ( - )
3
Speaker Rear Left ( + )
4
Speaker Rear Right ( - )
5
Speaker Rear Right ( + )
6
NC
7
ASU Turn ON
8
Power Antenna
9
Ignition
10
Audio Interrupt In
11
Dimmer
12
Speaker Front Right ( + )
13
Speaker Front Right ( - )
14
Speaker Front Left ( + )
15
Speaker Front Left ( - )
16
Ground
