ENGINE COMPONENTS
18

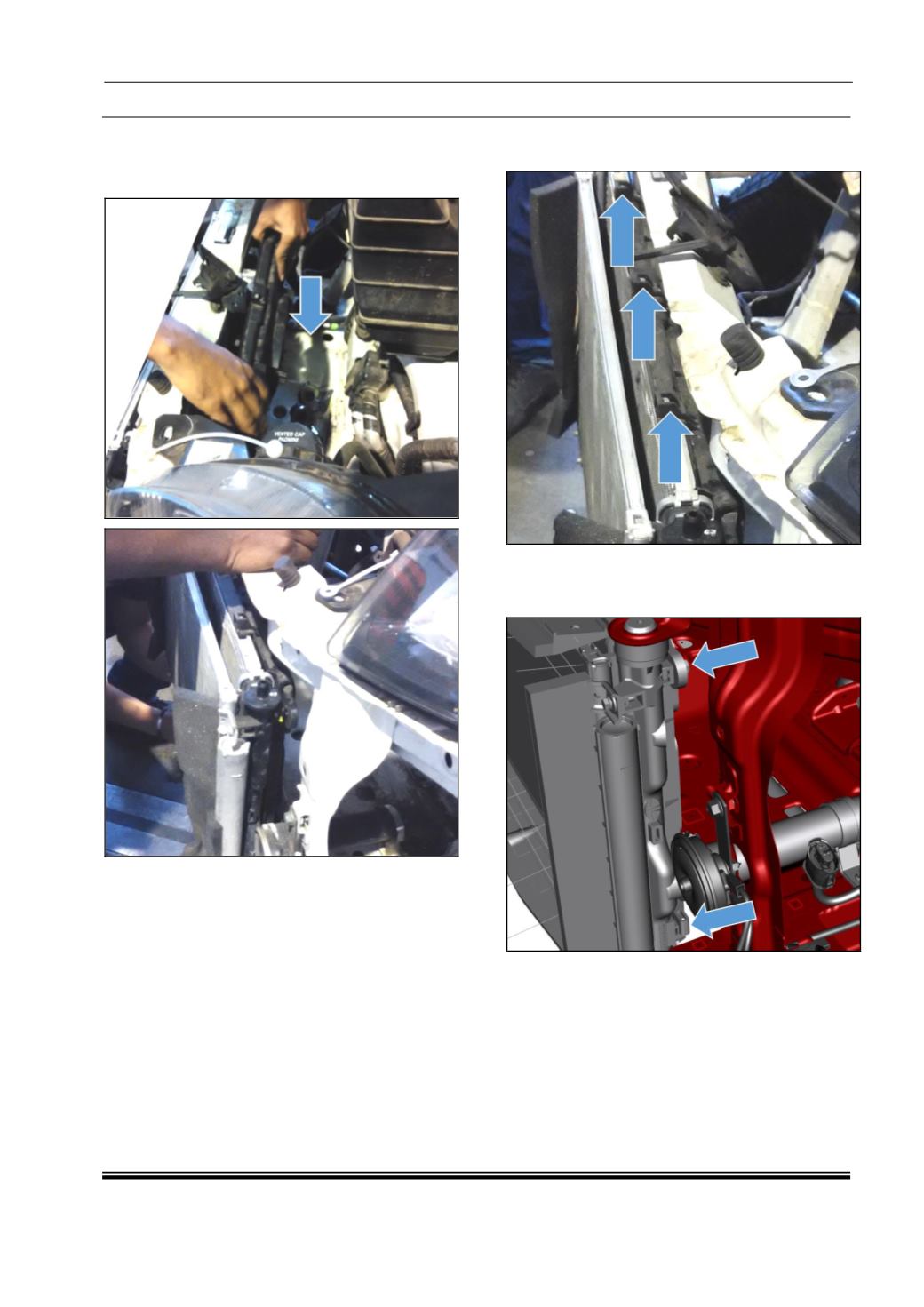

Installation:
1. Access and fit the radiator fan with shroud
inside the bumper cross member carefully.
2. Fit the fan and shroud assembly in radiator
lugs.
3. Tighten the all screw (4 no’s LH/RH) of fan
mounting with radiator assembly as per
specified torque. (7 Nm).
