ELECTRICAL
695
ELECTRICAL

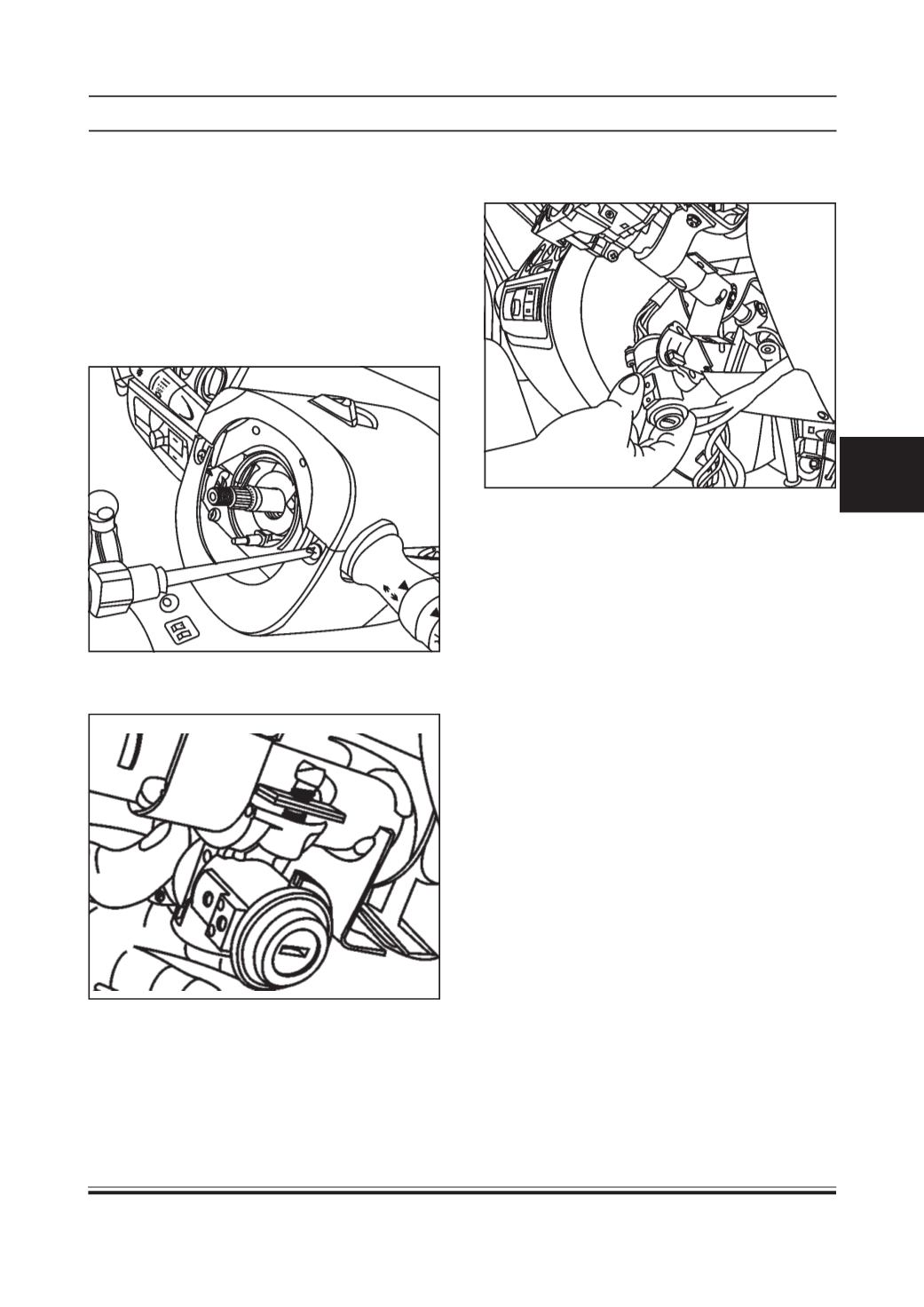

REMOVAL & REFITMENT OF STEERING LOCK
CUM IGNITION SWITCH
REMOVAL
1. Remove steering wheel (Refer “Steering section”)
2. Remove the screw securing steering column lower
panel to the body.
3. Remove two screws securing steering column
upper panel to the lower panel and take out lower
panel.
4. Remove two bolts securing ignition switch
assembly to the steering column.
5. Disconnect electrical connector and take out the
ignition switch assembly.
INSPECTION :
•
Turn the ignition switch to the off position and
back-probe, with the meter’s positive lead, the
power feed wire at the module.
•
Connect the meter’s negative to a good ground at
the distributor base.
•
Turn the ignition to the run or start position as
needed, and measure the voltage.
•
The reading should be at least 90% of battery
voltage.
•
The key should be come out at lock position only.
REFITMENT :
1. Align steering lock cum ignition switch assembly
and tighten two mounting bolts. Connect the
electrical connector.
2. Fit steering column lower panel.
3. Fit steering wheel.
