SUSPENSION SYSTEM
NOTE:

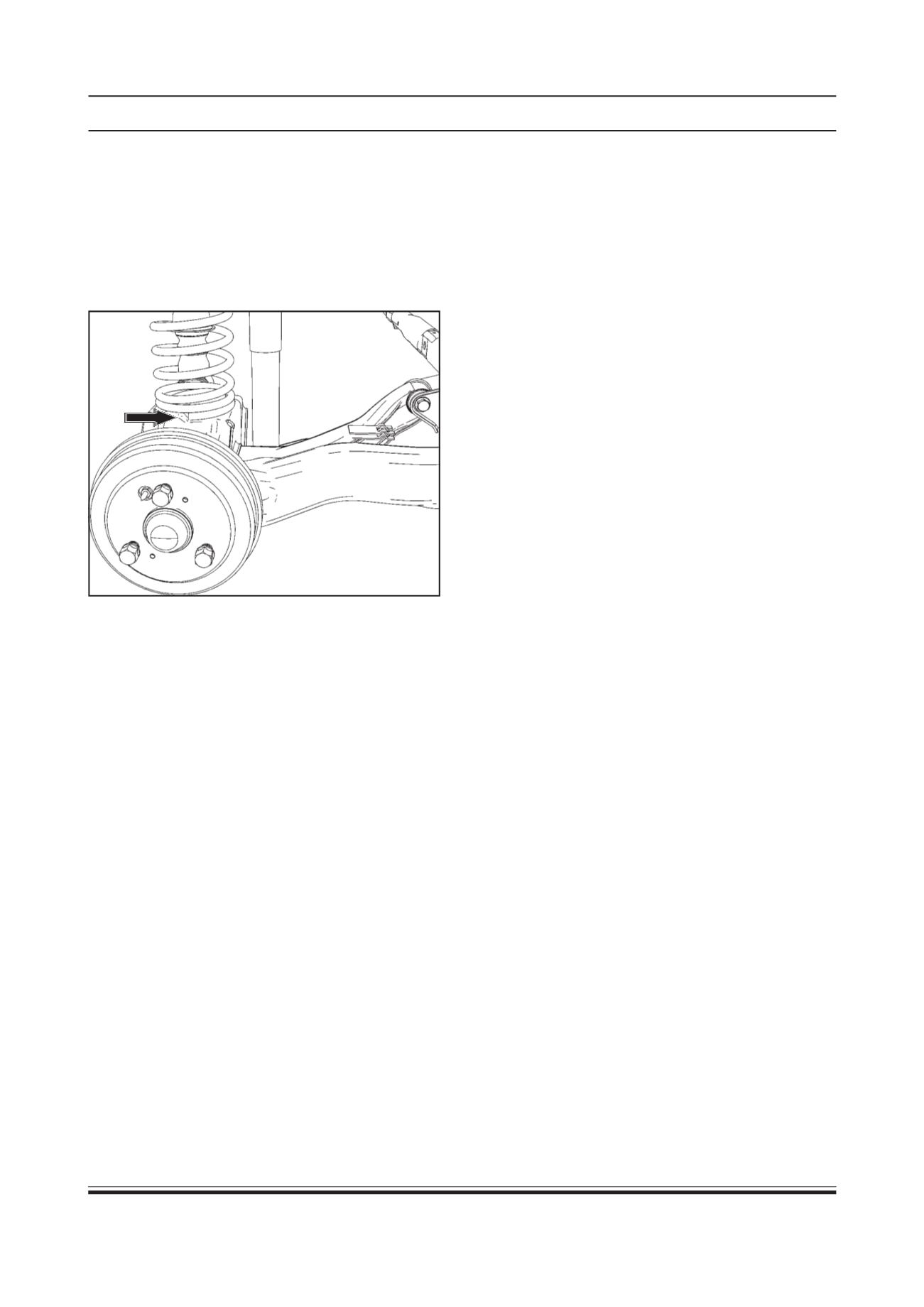

(a) Ensure that the coil spring end is seating
securely on the spring seat at the correct place. If
not, noise will be heard.
Installation:
1. Install coil spring using coil spring compressor .
(b) Ensure that closer pitched coil to be
assembled at bottom side.
2. Mount wheel(s) and tighten wheel bolts to specified
torque.
TIGHTENING TORQUE FOR WHEEL BOLTS = 8 - 8.3
Kg-m
BUMP STOPPER AND SPRING UPPER
SEAT
NOTE :
Refer Exploded view of Rear Suspension
Components while removal and installation process
Removal
1. Remove wheel(s) (Refer wheel removal procedure/
Wheels and Tires group
2. Remove coil spring (03) (Refer coil spring removal
procedure)
3. Remove spring upper seat (04)
4. Remove bump stopper (02)
Inspection:
1. Inspect both components for crack, deformation
or damage. Replace if found defective.
Installation:
1. Install bump stopper (02) to the cradle/body.
NOTE:
Before installing, apply soap water on it.
2. Install spring upper seat (04)
3. Install coil spring (03) (Refer coil spring installation
procedure)
4. Mount wheel(s) and tighten wheel bolts to specified
torque.
TIGHTENING TORQUE FOR WHEEL BOLTS = 8 - 8.3
Kg-m
