SUSPENSION SYSTEM
Wheel bearing
Wheel bearing
housing
NOTE:
Load should be applied concentric to the bearing axis
to avoid skewing and improper fitting of bearing in
housing.
9. Once the wheel bearing housing along with the
wheel bearing is removed from the flange, use
special tool (Part number - 2834 5890 35 01) for
removing the inner race of wheel bearing from the
flange
Inspection :
1. Inspect wheel bearing for noisy and smooth
operation. Replace if found noisy.
2. Inspect wheel hub unit for any damage. Replace if
found defective.
Following precautions should be taken while
assembly :
(a) Hub cavities should be free from dust, rusting and
other foreign particles.
(b) Handle the bearing with clean and dry hands.
(c) Never use hand gloves while assembling bearing.
(d) Never hammer the bearing while assembly and
disassembly, use suitable press.
(e) All greased parts (bearing) must be protected from
dust.
(f) Complete assembly to be done in burr and dust
free environment.
(g) Lubricate wheel bearing outer surface with oil so
that it gets inserted into wheel bearing housing
easily.

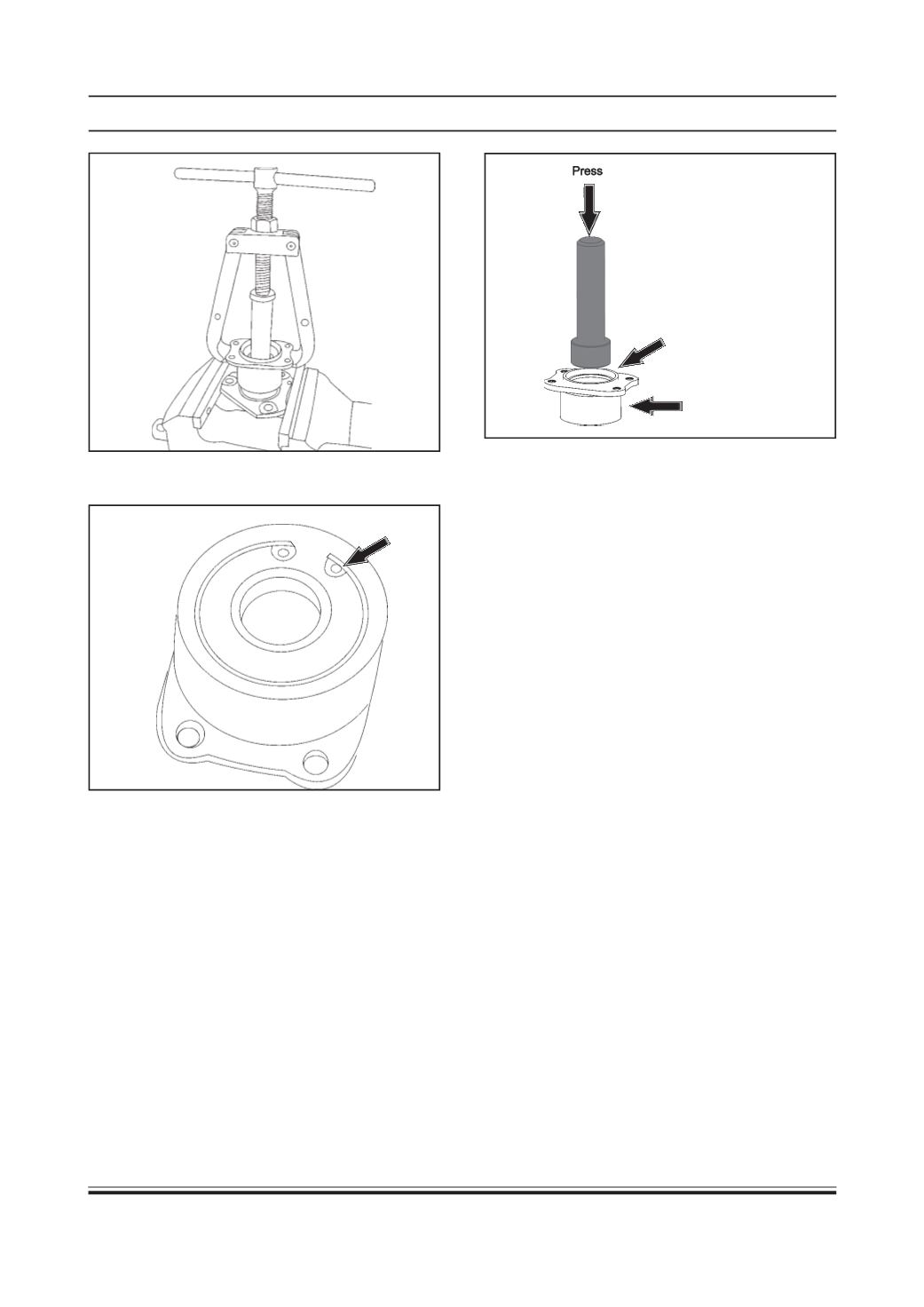

7. Remove internal circlip (04) from wheel bearing
housing with the help of circlip plier.
8. Remove wheel bearing (03) from wheel bearing
housing (02) as follows:
(a) Place the wheel bearing housing on hydraulic
press.
(b) Press the wheel bearing by using special tool
(Part No. 2834 5890 32 01) on hydraulic press and
remove wheel bearing fromwheel bearing housing.
04
