ENGINE 273 MPFI
249
ENGINE
ECU Specifications
Component Information:
Product
MOTRONIC - Engine
Management Control Unit
Type
M17.8.4
Microcontroller
TC1762/40MHz Clock Speed
Word Length
32 Bits
Flash
1 MB
RAM
32 KB

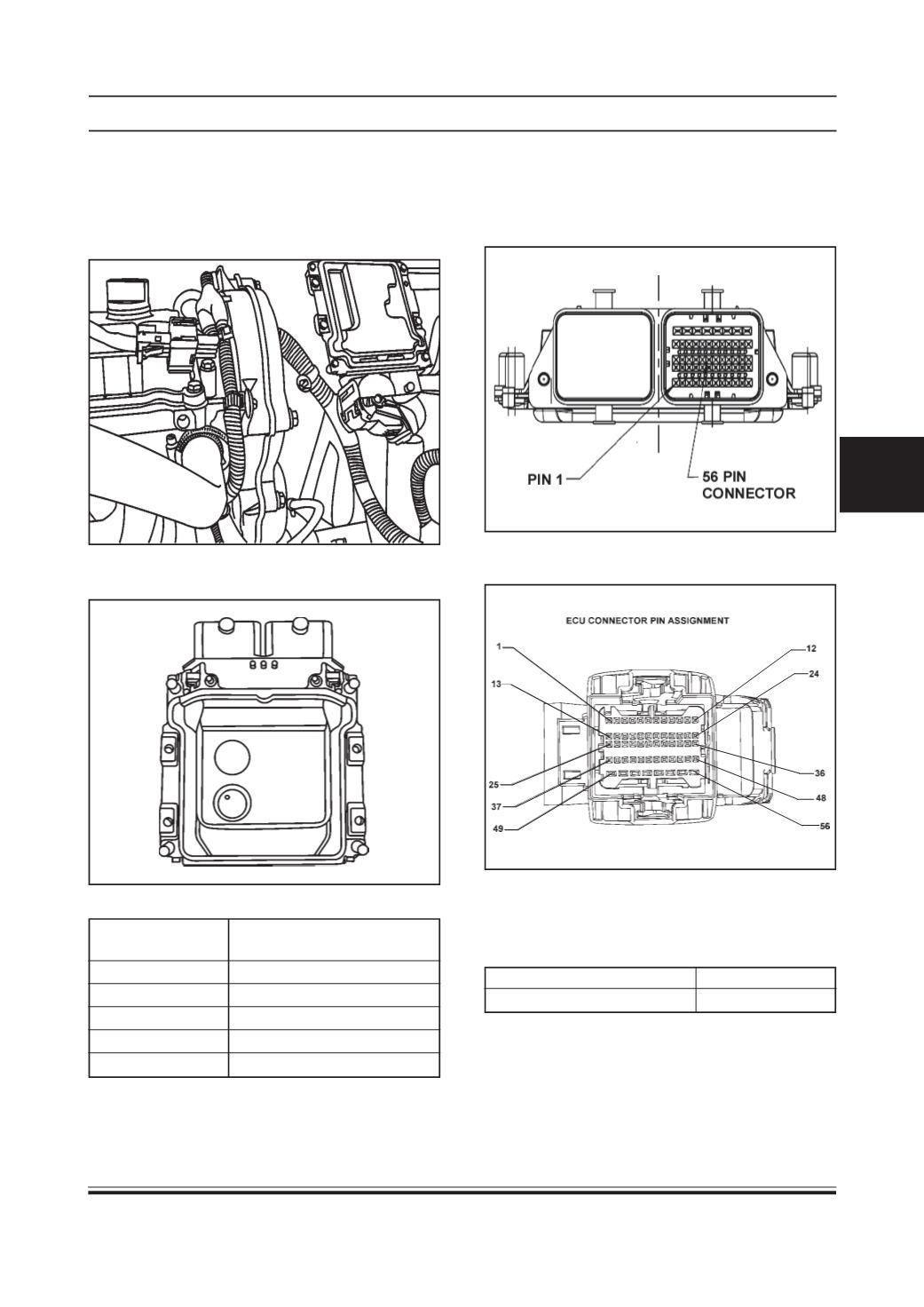

3.11.1 ECU (Electronic Control Unit)
ECU Location
ECU (Electronic Control Unit) is mounted in engine
compartment.
ECU Pin Out details
The ECU has 56 Pins allocated in one connector.
Front View of the ECU connector
ECU Connector View (Wiring Harness Side)
How to identify the pins in the wiring harness is also
shown in the picture.
ECU Storage Conditions
Storage temperature
- 40°C to 105°C
Storage relative humidity
25% to 75%
