ENGINE 273 MPFI

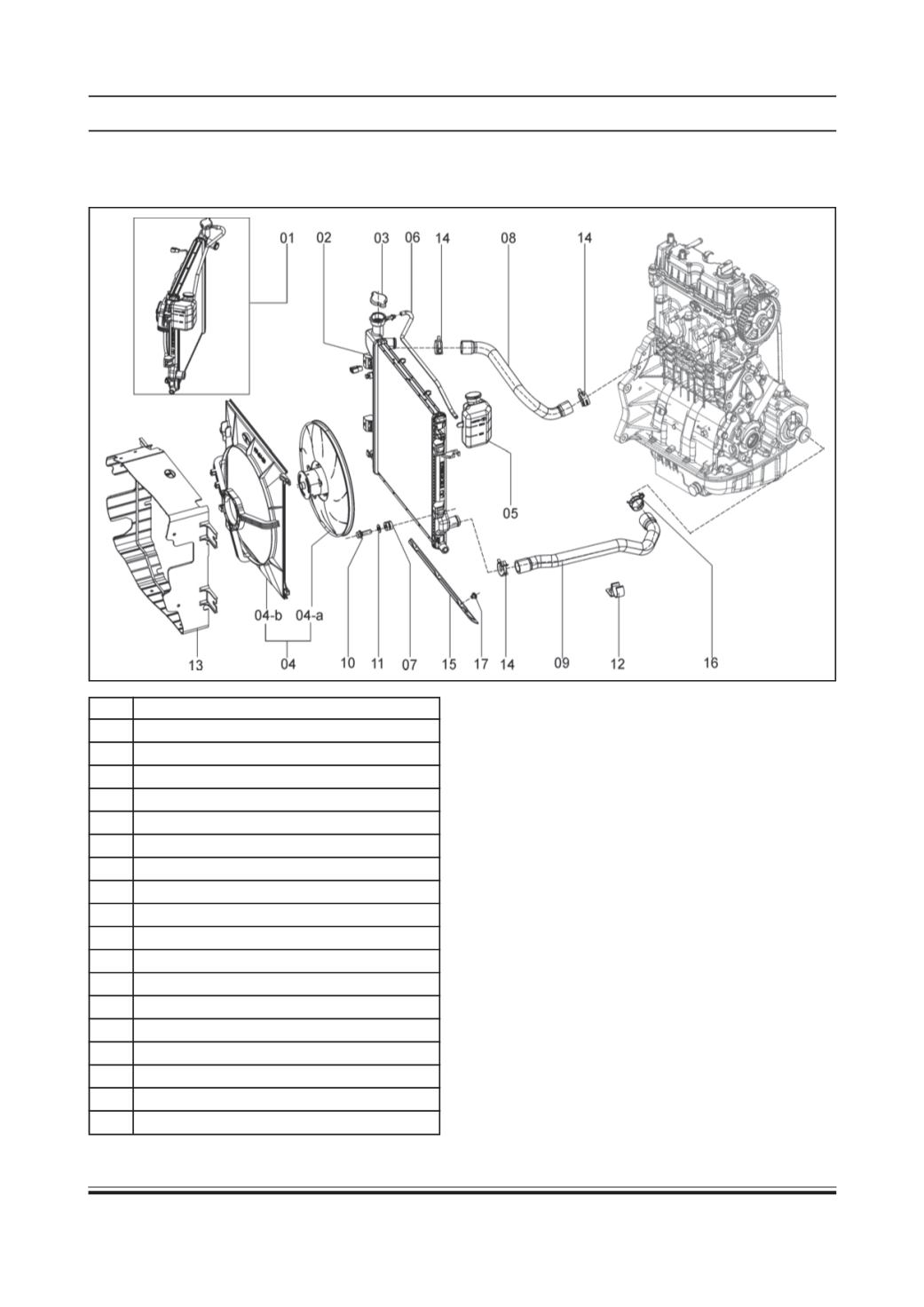

EXPLODED VIEWS
RADIATORAND FITMENTS
No.
Description
01 Assy Radiator Complete
02 Radiator Sub Assy
03 Assy Pressure Cap
04 Assy Fanshroud With Motor
04-a Assy Fan Motor
04-b Fan Shroud
05 Assy Recovery Bottle
06 OverflowTube
07 Assy Isolator (For Air Filter)
08 Rubber Hose (Thermostat To Radiator)
09 Rubber Hose (Radiator To Water Pump)
10 Hex Fl Screw
11 Bright Washer
12 Clamp (For Lower Cooling Line)
13 Radiator Duct
14 Clamp
15 Radiator Deflector
16 Clamp
