ELECTRICALS

172

Step

No.

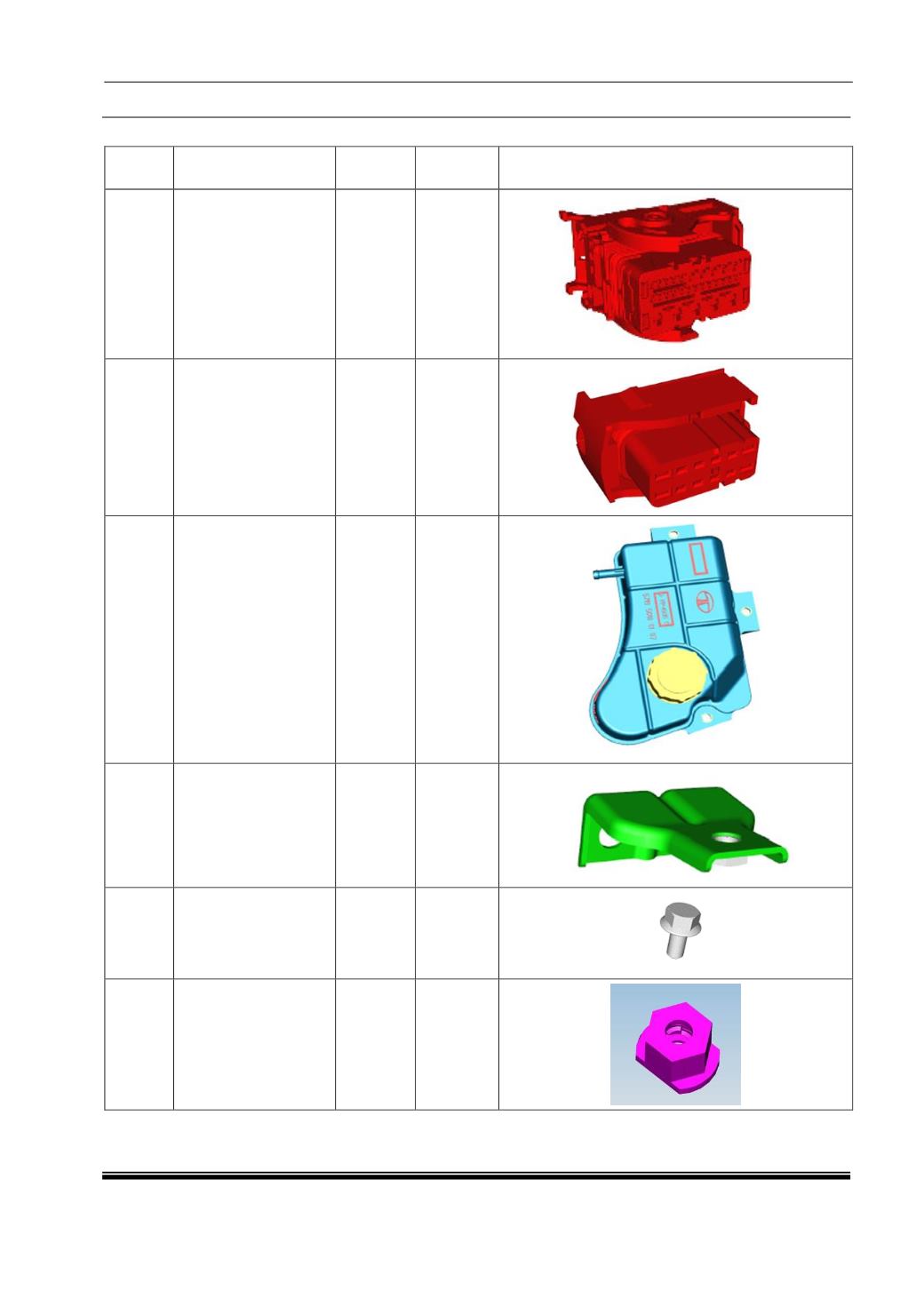

Part Description

Quantity Torque

Part Picture

6

AMT TCU connector

(28 - pin)

1

7

AMT TCU connector

(12 - pin)

1

8

Coolant tank

1

9

Coolant tank

mounting bracket

1

10

Coolant tank

mounting bolts

M6x12

5

1.0 Kgfm

11

1. Auxiliary tank

mounting bracket

bolt M6x12.

2. Plastic push on

nut M6x12

1

1.0 Kgfm
