STEERING SYSTEM

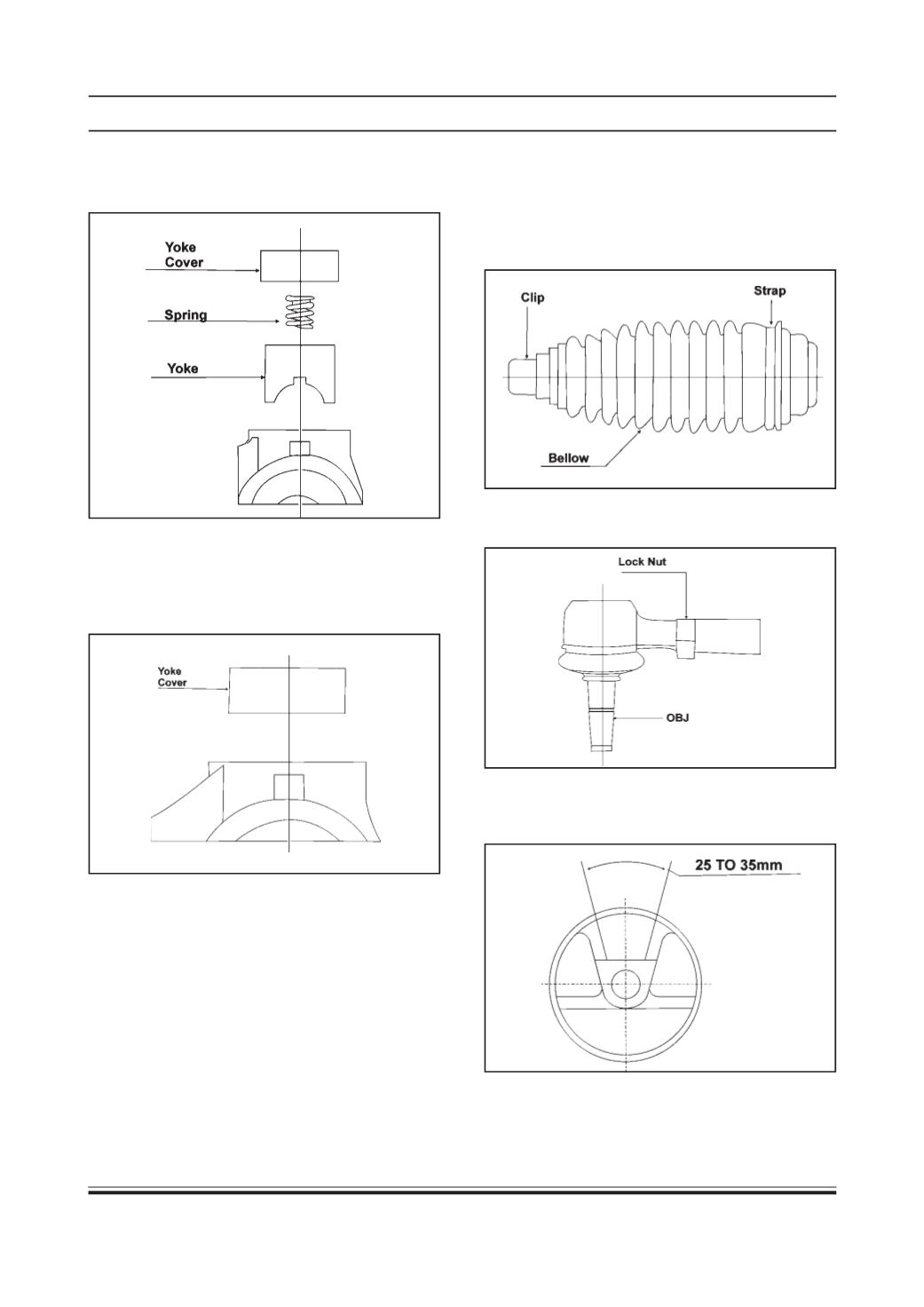

9. Turn the Housing in such a way that the Yoke

Bore is upright and assemble the yoke (08) and

spring (09)

10. Apply 2 to 3 drops of Loctite to the Yoke cover

threads and tighten it to a torque of 70 kg cm.

Now unscrew the yoke cover by 30 °and 45 ° ap-

proximately to achieve free pinion torque of 8 to

12 kgf - cm

11. Assemble the Bellow (18) on the Housing side

and secure the bellow with Bellow strap (20) and

Bellow clip (19) as shown in the fig. Scoop Silicon

grease using Forefinger and apply on groove of

IBJ prior to the Bellow assembly, to enable bellow

to rotate relative to IBJ

12. Fit the Outer Ball joints (14 & 15) on either side of

inner Ball joints

13. Check the free play of the gear at steering wheel

side. (No tyre movement when steering wheel is

turned)
