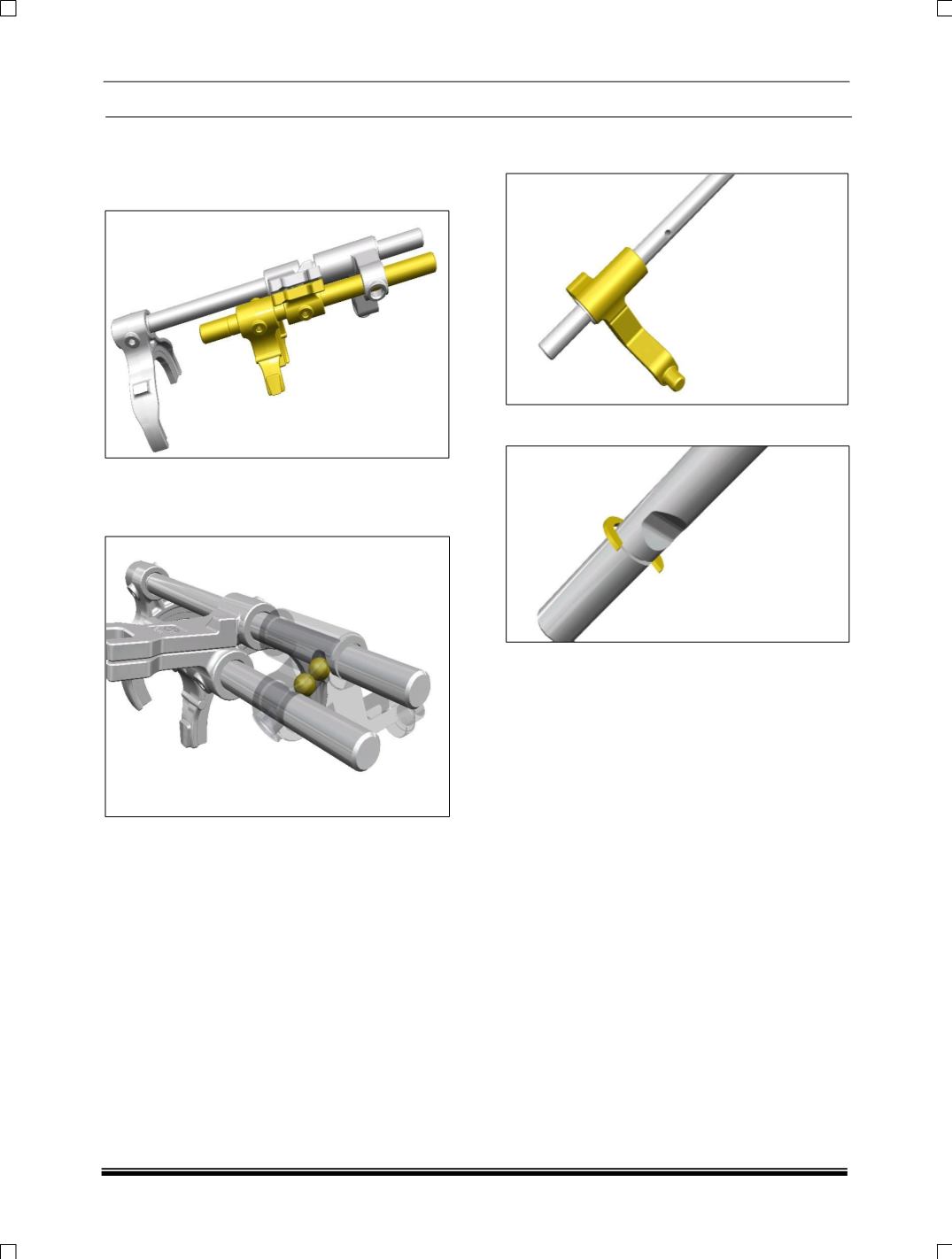

5. Remove the 3
rd
4
th
shifter shaft assembly from
the 5
th
gear shifter shaft assembly and take
out the steel balls from the 5
th
gear shifter
shaft.
NOTE:
Take care of 8 Dia. balls while
disassembling the 5
th
/ reverse and 3
rd
/ 4
th
shifter
shaft assembly
6. Remove the dowel from shifter dog and shifter
fork.
7. Now remove the 5
th
reverse shifter finger from
shaft.
8. Remove the circlip.
B. ASSEMBLY:
1. Assemble the first and second gear shifter by
placing the shifter fork on its flat surface.
2. Insert the first and second gear shifter shaft
such that the shaft end closer to the slot goes
into the fork first as shown in the figure.
3. Then fit the dowels (spiral) pin such that it
does not protrude out from both ends by
holding the fork and shaft assembly in a vice
and using a suitable drift.
